991215 (Pro-Turn 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FS (SN: 000101 - 009999) Fuel System - Kawasaki - Non-CARB Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FS

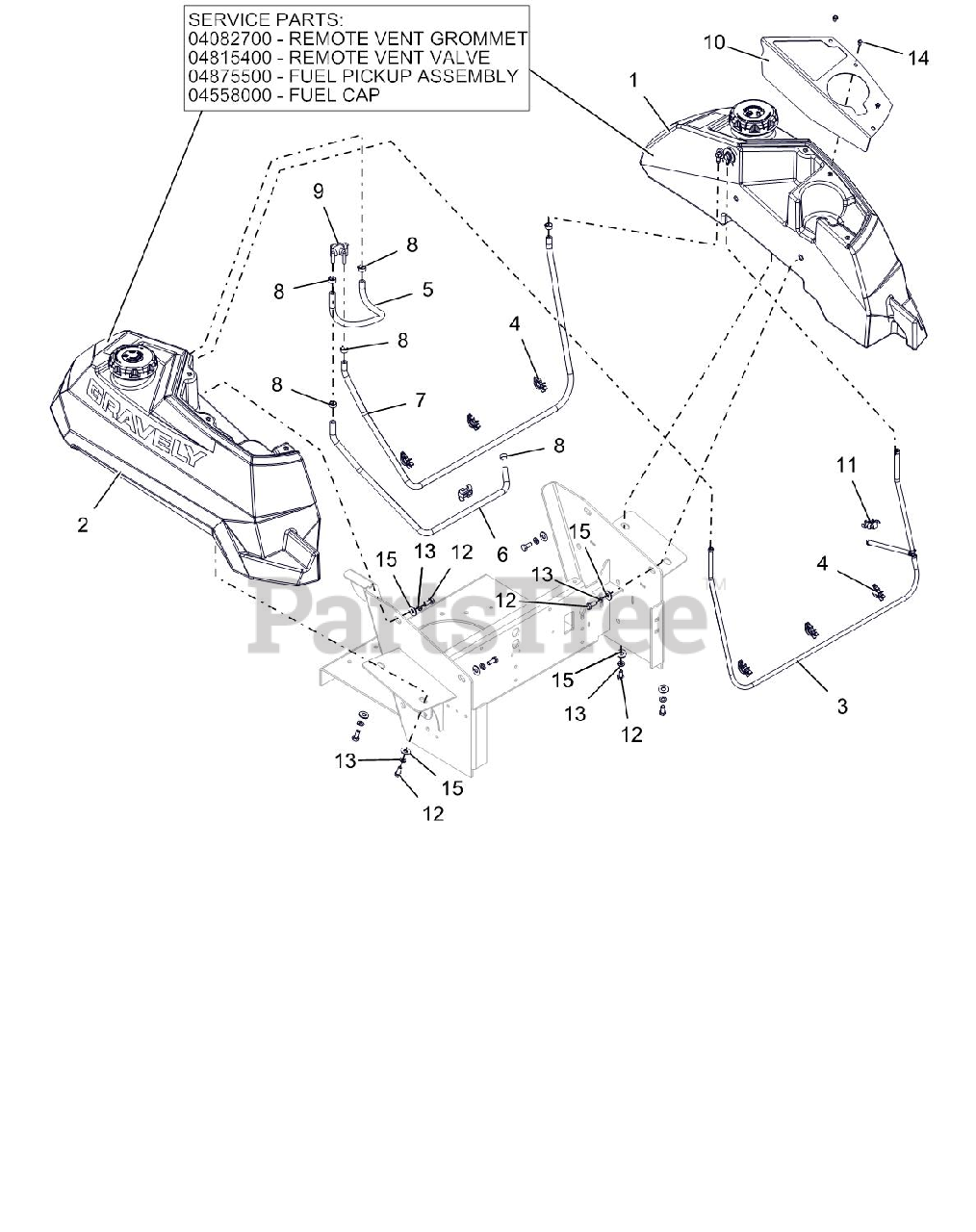

Fuel System - Kawasaki - Non-CARB Parts Diagram

  • Title

1

Gravely 05071200

ASM, LH - PT FUEL TANK

$390.99

$

Usually ships in 4-12 days

0

2

Gravely 05071300

ASM, RH - PT FUEL TANK

$390.99

$

Usually ships in 4-12 days

0

3

Gravely 05073700

ASM, VAPOR LINE

$36.99

$

Usually ships in 4-12 days

0

4

Gravely 00390100

WIRE CLIP

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

7

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

9

Gravely 04426400

VALVE, FUEL
(Superseded to 09389900)

$

$

Not available

10

Gravely 05073853

PT CUPHOLDER PANEL - RED

$34.99

$

Usually ships in 4-12 days

0

11

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$3.49

$

In Stock, Qty 20+

0

15

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

17

Gravely 04815400

VALVE, 2-WAY

Note: SERVICE PART

$19.99

$

In Stock, Qty 6

0

18

Gravely 04875500

ASSM,LRG TANK FUEL PICKUP LINE

Note: SERVICE PART

$18.99

$

In Stock, Qty 15

0

19

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

Note: SERVICE PART

$35.99

$

In Stock, Qty 8

0
