991215 (Pro-Turn 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FS (SN: 000101 - 009999) Tire Assembly Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FS

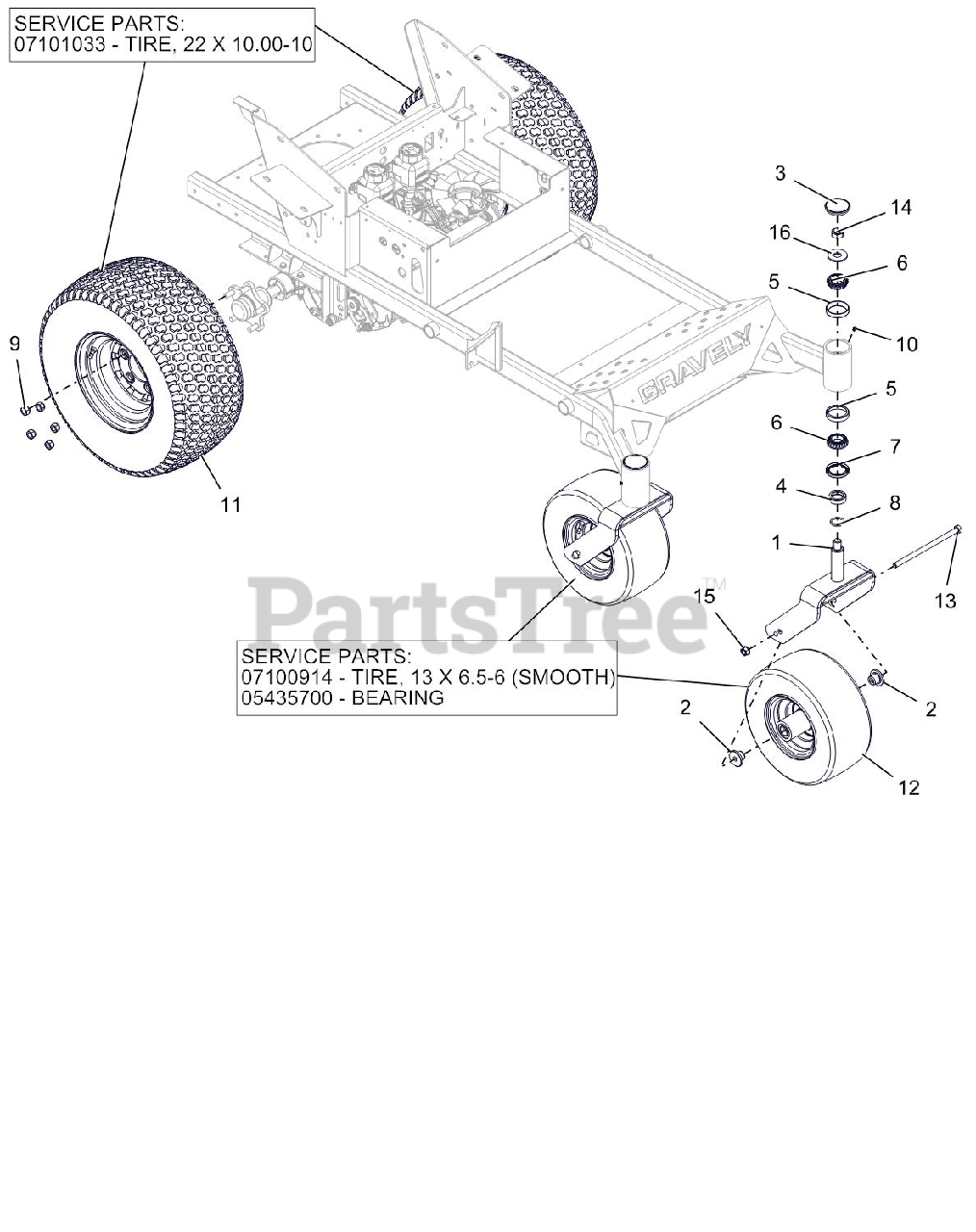

Tire Assembly Parts Diagram

  • Title

1

Gravely 03924453

CASTER FORK WMT - RED

$184.99

$

In Stock, only 2 left!

0

2

Gravely 00675300

SPACER, FRONT WHEEL

$9.49

$

In Stock, Qty 20+

0

3

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 4 left!

0

4

Gravely 04861500

SPCR, FRONT CASTER FORK

$14.99

$

In Stock, only 4 left!

0

5

Gravely 05404600

BRG-CUP 2.328X.465

$15.99

$

In Stock, Qty 9

0

6

Gravely 05404700

BRG-CONE 1.25X.66

$22.99

$

In Stock, Qty 20+

0

7

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$12.99

$

In Stock, Qty 5

0

8

Gravely 05600515

O-RING,

$2.99

$

In Stock, Qty 7

0

9

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07001727

FTG, .25-28 FLUSH MNT GREASE

$3.99

$

In Stock, Qty 8

0

11

Gravely 07101033

TIRE, 22 X 10.00-10

Note: Component Service Part

$254.99

$

In Stock, only 2 left!

0

11

Gravely 07101115

ASM, WHL/TIRE 22X10.00-10

$

$

Not available

12

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: Component Service Part

$25.99

$

In Stock, Qty 20+

0

12

Gravely 07100914

TIRE, 13X6.50-6 SMOOTH

Note: Component Service Part

$85.99

$

In Stock, only 2 left!

0

12

Gravely 07101226

ASM, WHL/TIRE 13X6.50-6

$137.99

$

In Stock, only 1 left!

0

13

Gravely 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

14

Gravely 06500721

NUT-JAM TOPLK .75-16 YWZC
(Superseded to 06500933)

$4.99

$

In Stock, Qty 11

0

15

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06439800

@WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, Qty 12

0
