991215 (Pro-Turn 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FS (SN: 000101 - 009999) Transaxles Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FS

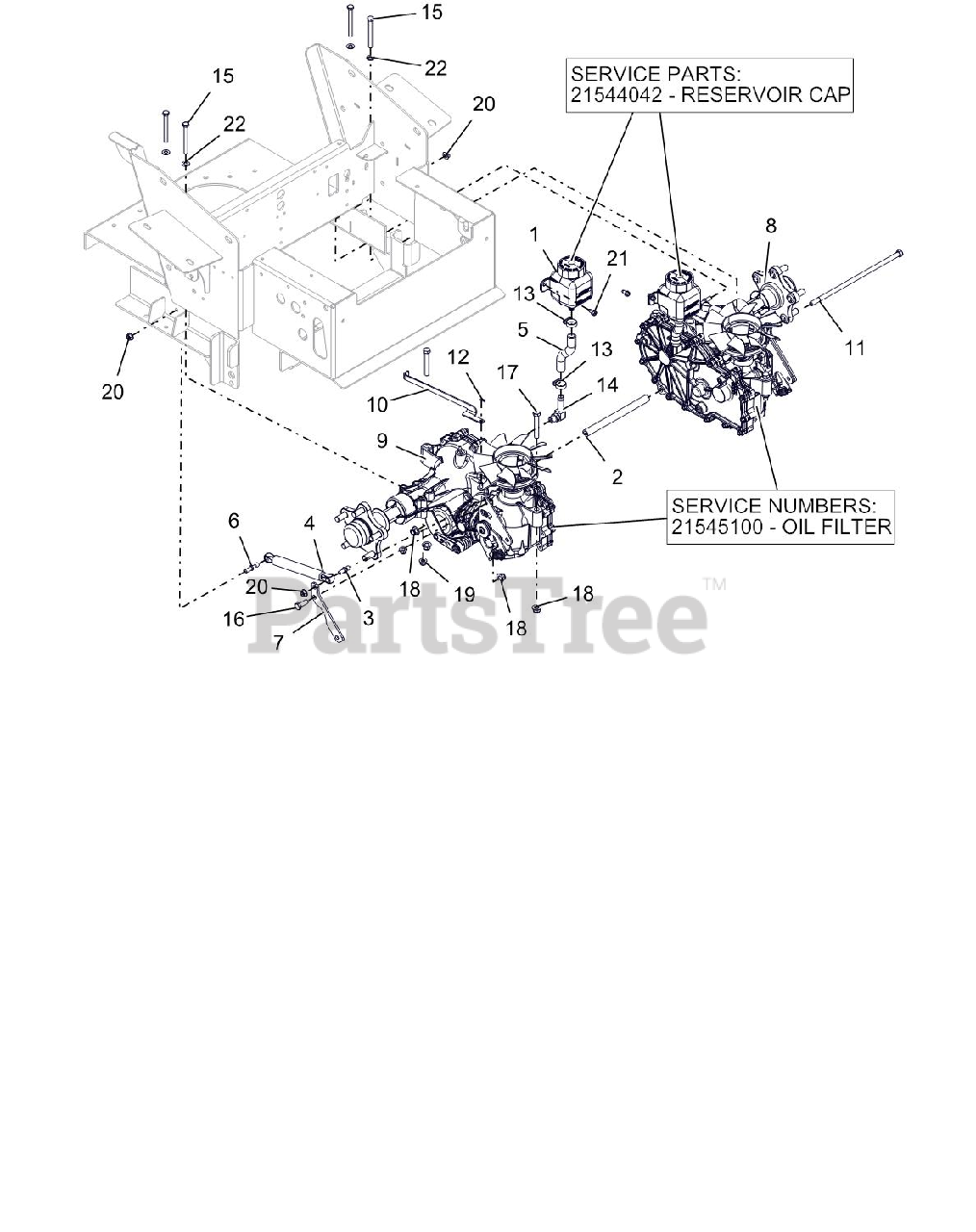

Transaxles Parts Diagram

  • Title

1

Gravely 02970200

TANK, EXPANSION

$38.99

$

In Stock, Qty 10

0

1

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: SERVICE PART

$24.99

$

Usually ships in 4-12 days

0

2

Gravely 03367200

SPCR,.406 ID X .630 OD X 7.724

$15.99

$

In Stock, only 4 left!

0

3

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 20+

0

4

Gravely 03769800

DAMPER
(Superseded to 09689700)

$43.99

$

In Stock, Qty 20+

0

5

Gravely 03832300

HOSE, 100I HYDRO OVERFLOW

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 04097100

STUD-BALL-THREADED

$2.99

$

In Stock, Qty 15

0

7

Gravely 04244751

TRANSMISSION DAMPER MTG PLT-BL

$10.99

$

Usually ships in 4-12 days

0

8

Gravely 04827900

TRANSAXLE, ZT3200, LH

$1810.99

$

Usually ships in 4-12 days

0

9

Gravely 04828000

TRANSAXLE, ZT3200, RH

$1810.99

$

Usually ships in 4-12 days

0

10

Gravely 04868251

DUMP VALVE BRKT - BLACK

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 05901315

BLT HEX, .38-16X11.00 GR5 YWZC
(Superseded to 05901921)

$8.49

$

In Stock, Qty 18

0

12

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

13

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

In Stock, Qty 6

0

14

Gravely 07001528

FITTING, HYD (90 DEG)

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 05962500

@BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 21545100

OIL FILTER, TRANSMISSION

Note: SERVICE PART

$42.99

$

Usually ships in 4-12 days

0
