991215 (Pro-Turn 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FS (SN: 010000 & Above) Deck Lift - Left Hand Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FS

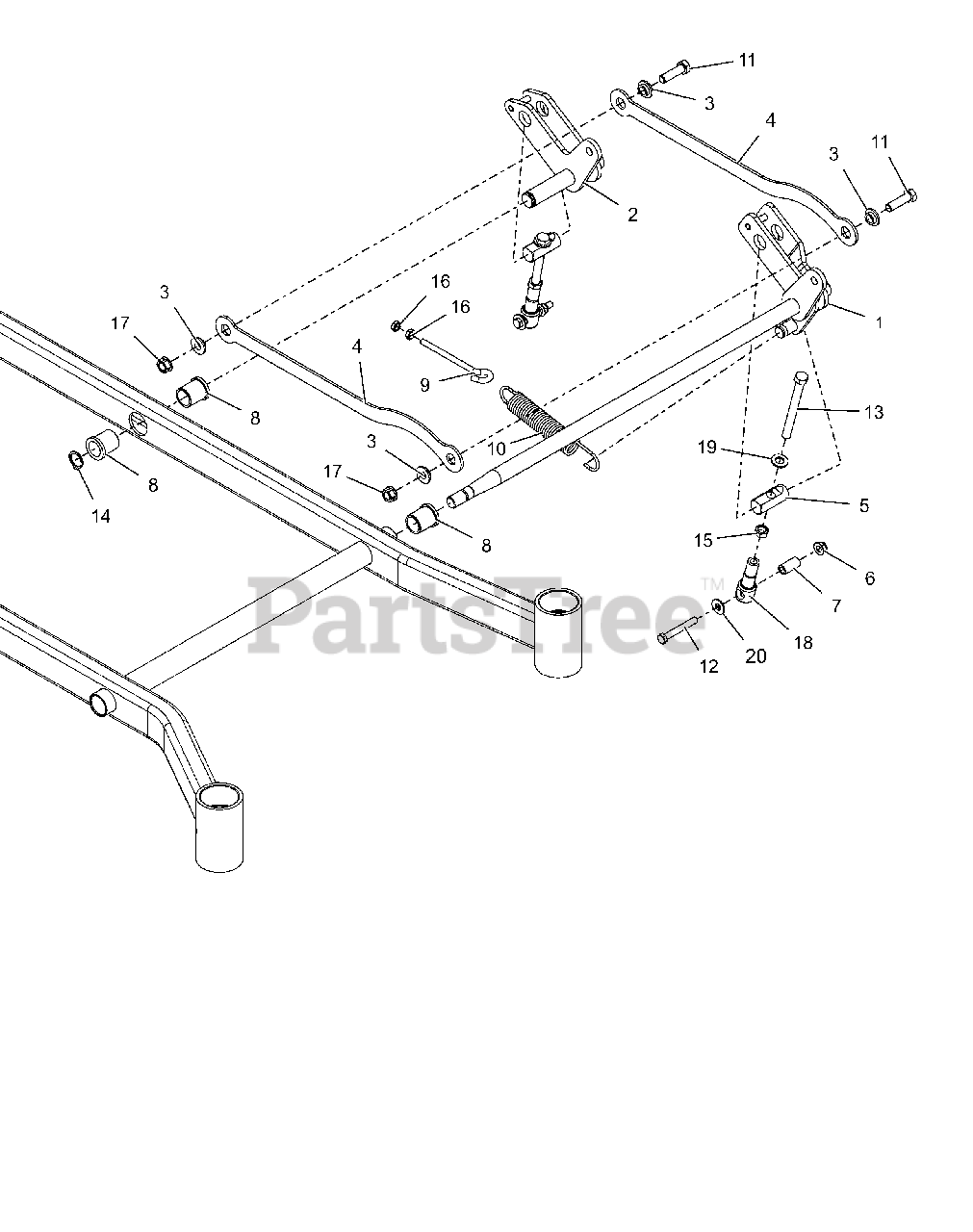

Deck Lift - Left Hand Parts Diagram

  • Title

1

Gravely 05009667

FRT LH DECK LIFT ARM WMT- LF

$171.99

$

Usually ships in 4-12 days

0

2

Gravely 05009700

WLDMT, REAR LH DECK ARM

$

$

Not available

3

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.99

$

In Stock, Qty 19

0

4

Gravely 04660351

LINK, LIFT

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 05149500

PIN, DECK LIFT

$17.99

$

In Stock, Qty 11

0

6

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 04895200

SPACER, DECK LEVELING

$2.99

$

In Stock, Qty 6

0

8

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$7.99

$

In Stock, Qty 20+

0

9

Gravely 07001640

BOLT,.38-16 X 4.25-.62 DIA EYE

$17.99

$

In Stock, only 2 left!

0

10

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$34.99

$

In Stock, Qty 17

0

11

Gravely 05970600

@BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$4.99

$

In Stock, Qty 19

0

12

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05901622

BOLT, 1/2-13 X 5.0 2.5 THREAD
(Superseded to 05901925)

$5.49

$

In Stock, only 3 left!

0

14

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$3.49

$

In Stock, Qty 17

0

15

Gravely 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05081400

LINK, DECK LIFT FORMED

$16.99

$

In Stock, Qty 5

0

19

Gravely 06400418

FLATWASHER 1/2 SAE HARD 15906
(Superseded to 06401116)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0
