991218 (Pro-Turn 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kohler ZT (SN: 010000 & Above) Seat Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kohler ZT

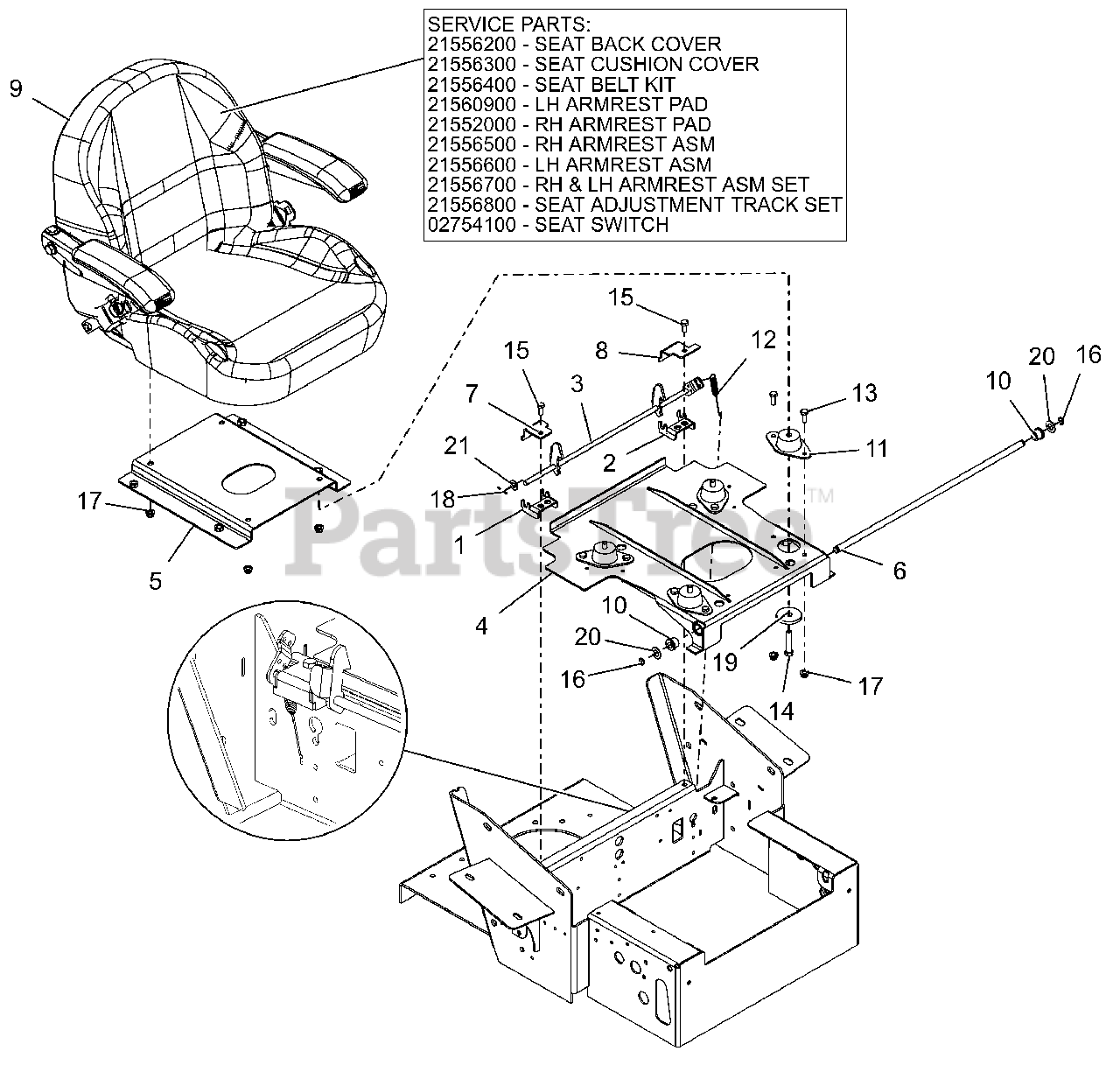

Seat Parts Diagram

  • Title

1

Gravely 03930451

PT100 RH SEAT LATCH MNT WMT-BL

$23.99

$

Usually ships in 4-12 days

0

2

Gravely 03930551

PT100 LH SEAT LATCH MNT WMT-BL

$

$

Not available

3

Gravely 04975651

PT100 SEAT LATCH WLDMT - BLACK

$32.99

$

Usually ships in 4-12 days

0

4

Gravely 05028351

PT ISOLATOR MTG PLATE WMT -BLK

$395.99

$

Usually ships in 4-12 days

0

5

Gravely 05071651

SEAT PLATE WLDMT - BLACK

$92.99

$

Usually ships in 4-12 days

0

6

Gravely 03837800

SHAFT, PT100 SEAT PIVOT

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 03917951

PT100 RH TOP SEAT LATCH MNT-BL

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 03918551

PT100 LH TOP SEAT LATCH MNT-BL

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 05073600

SEAT, NON-SUSPENSION
(Superseded to 04876200)

$517.99

$

In Stock, only 1 left!

0

9

Gravely 21556200

COVER, SEAT BACK

Note: SERVICE PART

$125.99

$

Usually ships in 4-12 days

0

9

Gravely 21556300

COVER, SEAT CUSHION

Note: SERVICE PART

$118.99

$

Usually ships in 4-12 days

0

9

Gravely 21556400

KIT, SEAT BELT

Note: SERVICE PART

$99.99

$

Usually ships in 4-12 days

0

9

Gravely 21560900

PAD, ARMREST (HARD)

Note: SERVICE PART

$41.99

$

Usually ships in 4-12 days

0

9

Gravely 21552000

PAD, ARMREST
(Superseded to 21560900)

Note: SERVICE PART

$41.99

$

Usually ships in 4-12 days

0

9

Gravely 21556500

ARMREST, RH ASSEMBLY

Note: SERVICE PART

$70.99

$

Usually ships in 4-12 days

0

9

Gravely 21556600

ARMREST, LH ASSEMBLY

Note: SERVICE PART

$70.99

$

Usually ships in 4-12 days

0

9

Gravely 21556700

SET, RH & LH ARMREST ASSEMBLY

Note: SERVICE PART

$

$

Not available

9

Gravely 21556800

SET, SEAT ADJUSTMENT TRACK

Note: SERVICE PART

$109.99

$

Usually ships in 4-12 days

0

9

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: SERVICE PART

$9.99

$

In Stock, Qty 20+

0

10

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 07500237

MOUNT, FAIL-SAFE COMPRESSION

$37.99

$

Usually ships in 4-12 days

0

12

Gravely 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 20+

0

13

Gravely 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.99

$

In Stock, Qty 9

0

14

Gravely 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, only 2 left!

0

17

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 8

0

19

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

20

Gravely 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 9

0

21

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
