991230 (Pro-Turn ZX 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 035000 - 039999) Engine Guard And Fenders Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

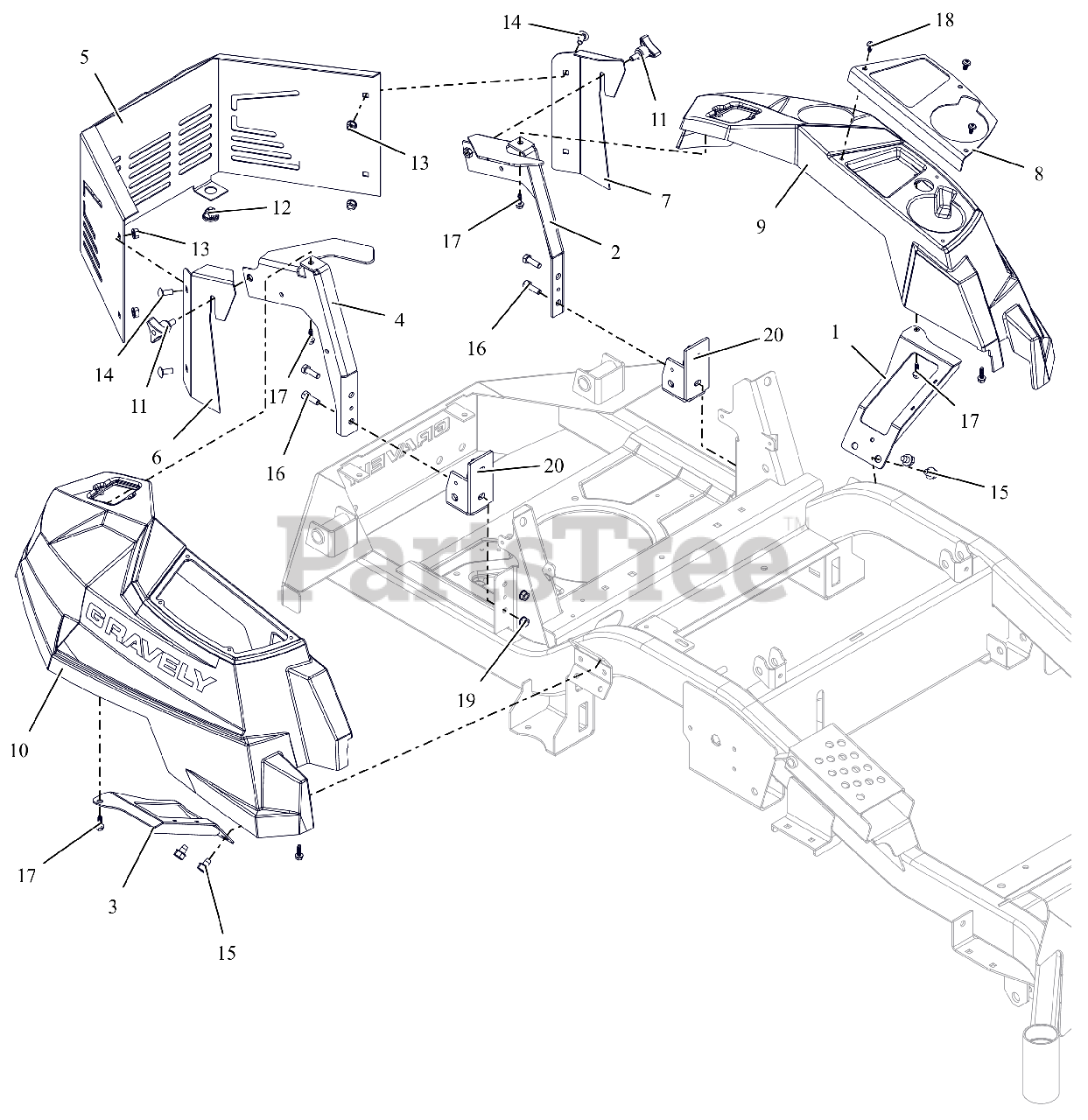

Engine Guard And Fenders Parts Diagram

  • Title

1

Gravely 05095151

WLDMT, LH FENDER MOUNT

$20.99

$

Usually ships in 4-12 days

0

2

Gravely 05244353

BRKT, LH FENDER MTG

$70.99

$

Usually ships in 4-12 days

0

3

Gravely 05105151

WLDMT, RH FENDER MOUNT

$23.99

$

Usually ships in 4-12 days

0

4

Gravely 05244253

BRKT, RH FENDER MTG

$50.99

$

Usually ships in 4-12 days

0

5

Gravely 05073151

GUARD, HD ENGINE

$92.99

$

Usually ships in 4-12 days

0

6

Gravely 05073253

TRIM, HOOD STYLE (RIGHT)

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 05073353

TRIM, HOOD STYLE (LEFT)

$30.99

$

Usually ships in 4-12 days

0

8

Gravely 05077853

PANEL, HD

$39.99

$

Usually ships in 4-12 days

0

9

Gravely 59113700

KIT, FENDER W/FUEL DECAL-HD

$46.99

$

In Stock, only 2 left!

0

10

Gravely 05138800

FENDER, RH HD (2017) SHRT BOSS

$41.99

$

Usually ships in 4-12 days

0

11

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$6.99

$

In Stock, Qty 20+

0

12

Gravely 07500407

GROMMET, 10MM BOLLHOFF

$6.49

$

In Stock, Qty 20+

0

13

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

15

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 15

0

16

Gravely 05901802

BLT, HEX .31-18X1.00 G8 ZCC

$1.99

$

In Stock, only 3 left!

0

17

Gravely 06100231

SCR, PLASTITE-HWH 0.25 X 0.75 ZC120

$1.99

$

In Stock, Qty 6

0

18

Gravely 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.99

$

In Stock, only 3 left!

0

19

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05248051

BRKT, ROPS SUPPORT

$33.99

$

Usually ships in 4-12 days

0
