991232 (Pro-Turn ZX 52) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 025000 - 029999) Control Panel Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

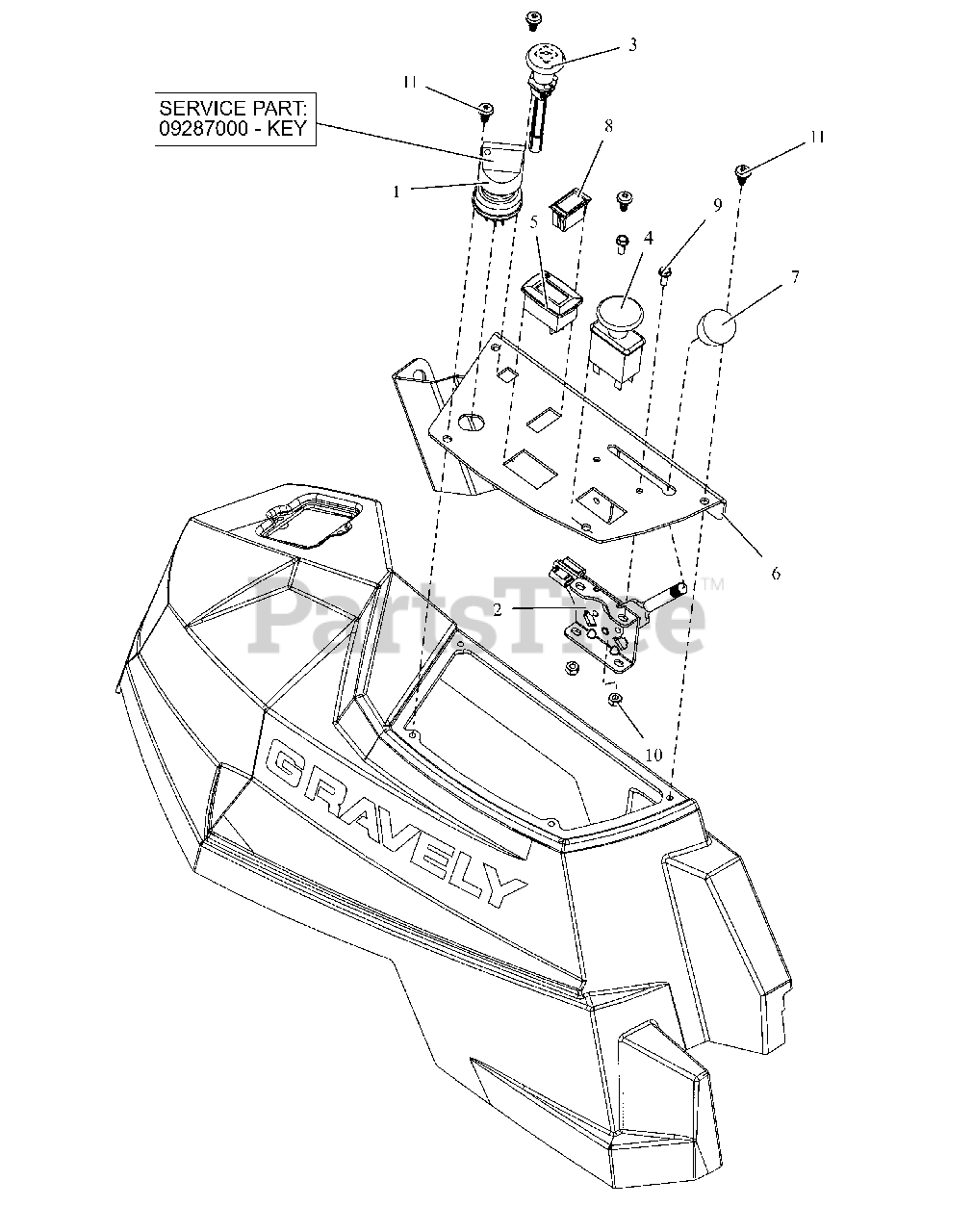

Control Panel Parts Diagram

  • Title
1

Gravely 04331700

SWITCH, IGNITION

$43.99

$

In Stock, Qty 11

0

1

Gravely 09287000

KEY, W/ SHIELD

Note: SERVICE PART

$14.99

$

In Stock, Qty 20+

0

2

Gravely 06900619

CABLE, PRO THROTTLE CONTROL

$42.99

$

In Stock, only 1 left!

0

3

Gravely 06900621

CABLE - CHOKE, SNAP-IN

$28.99

$

In Stock, only 1 left!

0

4

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

5

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 3 left!

0

6

Gravely 05077053

PANEL, HD CONTROL

$102.99

$

Usually ships in 4-12 days

0

7

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$11.99

$

In Stock, Qty 10

0

8

Gravely 09003300

SWITCH,BLANK

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 05901825

BLT, HWH #10-24X.50 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Gravely 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.49

$

In Stock, only 3 left!

0
