991232 (Pro-Turn ZX 52) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 025000 - 029999) Fuel System Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

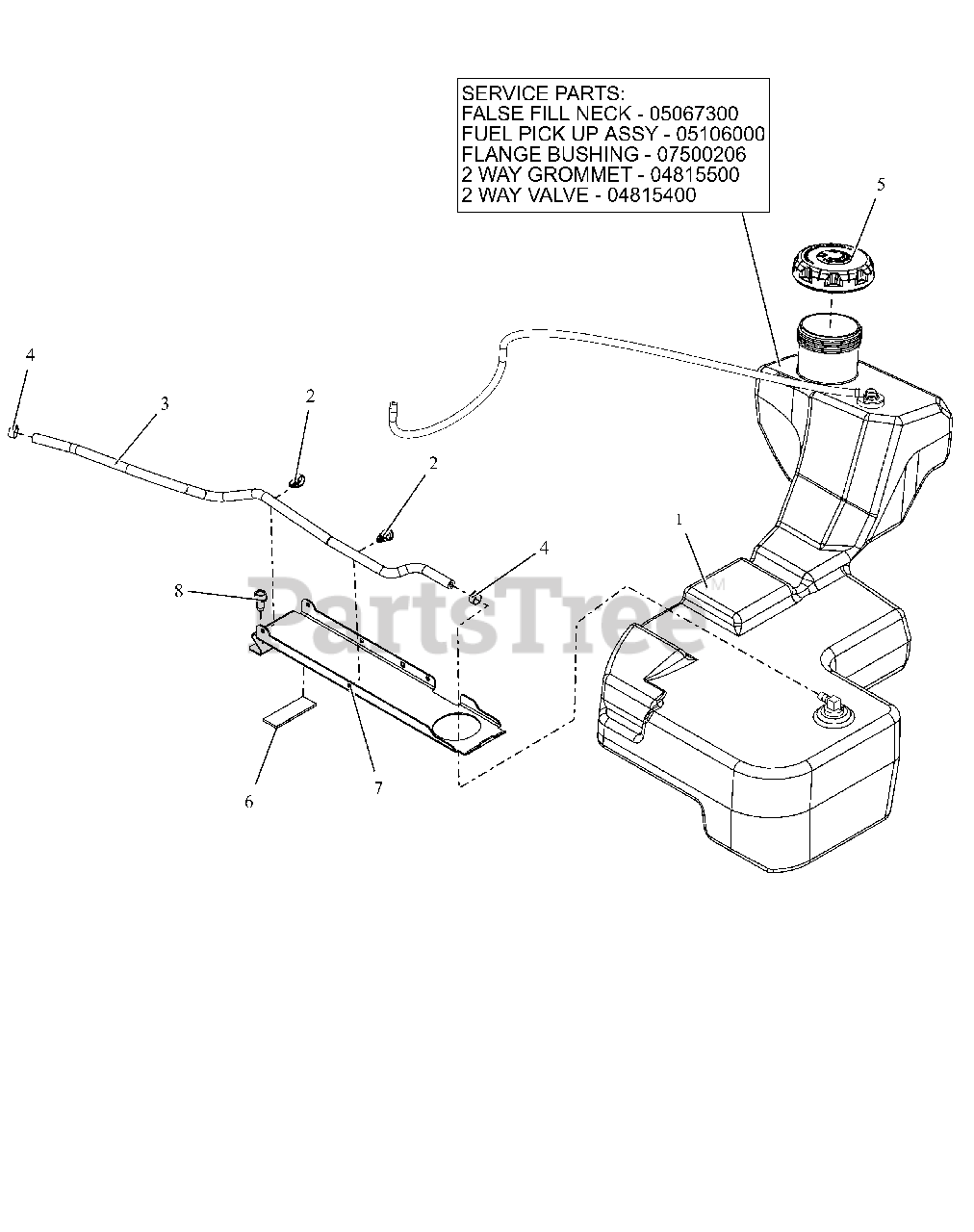

Fuel System Parts Diagram

  • Title
1

Gravely 05183700

ASSY, FUEL TANK-HD
(Superseded to 09167300)

$219.99

$

Usually ships in 4-12 days

0

1

Gravely 05067300

INSERT, FUEL NECK FALSE FILL

Note: SERVICE PART

$

$

Not available

1

Gravely 05106000

ASM, HD FUEL PICK-UP

Note: SERVICE PART

$51.99

$

In Stock, only 1 left!

0

1

Gravely 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: SERVICE PART

$2.49

$

In Stock, Qty 20+

0

1

Gravely 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

Note: SERVICE PART

$3.49

$

In Stock, Qty 11

0

1

Gravely 04815400

VALVE, 2-WAY

Note: SERVICE PART

$19.99

$

In Stock, Qty 8

0

2

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: LENGTH = 27.00"

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$33.99

$

In Stock, Qty 20+

0

6

Gravely 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$

$

Not available

7

Gravely 05024151

BRKT, FUEL TANK HOLD DOWN

$21.99

$

Usually ships in 4-12 days

0

8

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
