991248 (ZT HD 48) - Gravely 48" Zero-Turn Mower, Kohler 7000 Pro (SN: 000101 - 001999) Control Panel Parts Diagram

48" Zero-Turn Mower, Kohler 7000 Pro

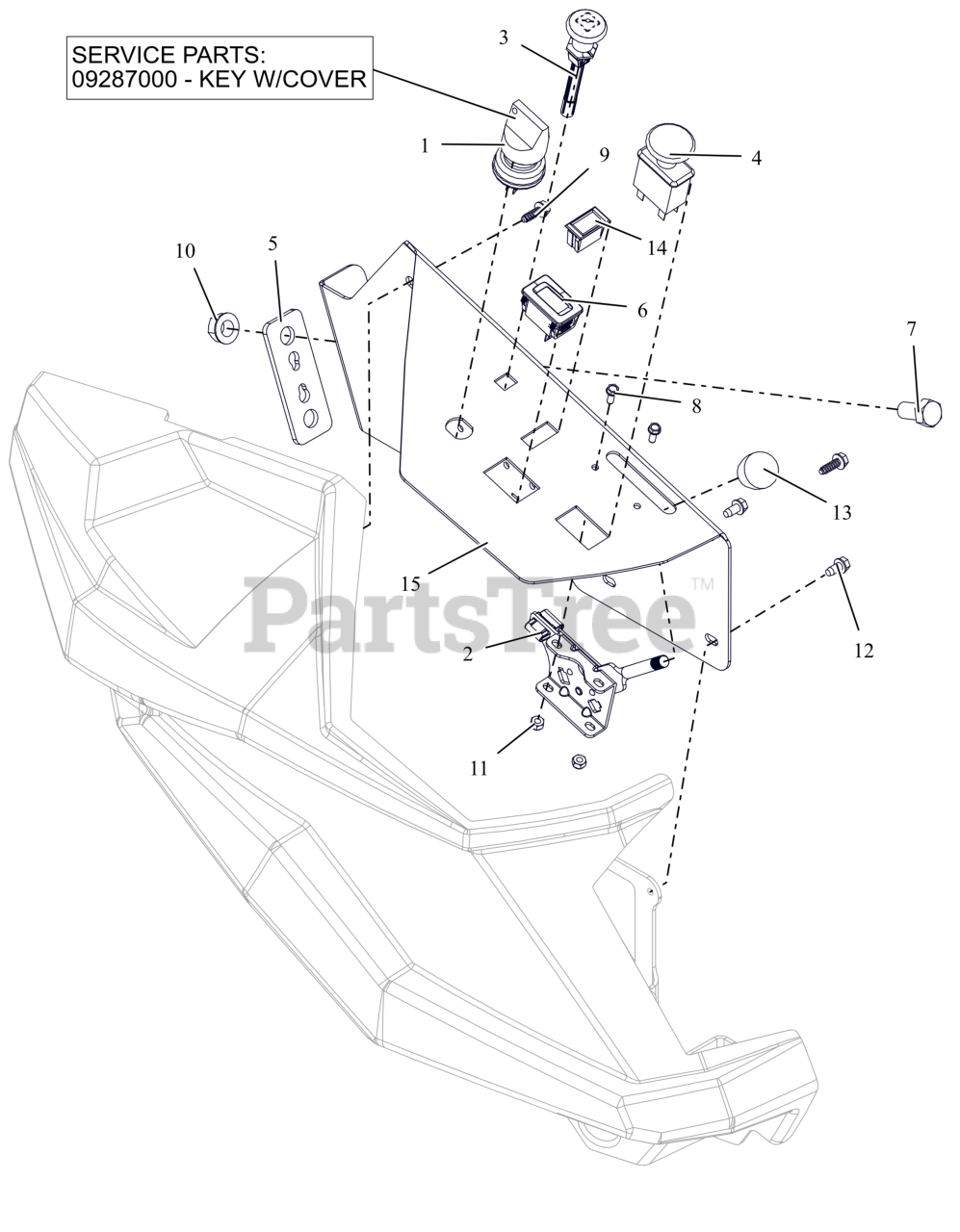

Control Panel Parts Diagram

  • Title

1

Gravely 04331600

SWITCH, IGNITION

$47.99

$

In Stock, Qty 20+

0

1

Gravely 09287000

KEY, W/ SHIELD

$17.99

$

In Stock, Qty 20+

0

2

Gravely 06900619

CABLE, PRO THROTTLE CONTROL

$47.99

$

In Stock, Qty 9

0

3

Gravely 06900621

CABLE - CHOKE, SNAP-IN

Note: Not Used On Models 991250, 991248, 991252

$30.99

$

In Stock, Qty 7

0

4

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

5

Gravely 05117453

PLATE, CONTROL PANEL SPACER

$5.49

$

Usually ships in 4-12 days

0

6

Gravely 05254800

HOUR METER
(Superseded to 09497400)

$25.99

$

In Stock, only 4 left!

0

7

Gravely 05901715

BLT, HEX .50-13X1.00 G5 ZCC

$2.99

$

In Stock, Qty 7

0

8

Gravely 05901825

BLT, HWH #10-24X.50 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06100231

SCR, PLASTITE-HWH 0.25 X 0.75 ZC120

$1.99

$

In Stock, Qty 6

0

10

Gravely 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$12.99

$

In Stock, only 2 left!

0

14

Gravely 09003300

SWITCH,BLANK

$5.49

$

Usually ships in 4-12 days

0

15

Gravely 09189053

PANEL, HD CONTROL (RED)

$43.99

$

Usually ships in 4-12 days

0
