991254 (Pro-Turn Z 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Gravely 764 Pro (SN: 000101 - 001999) Controls Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Gravely 764 Pro

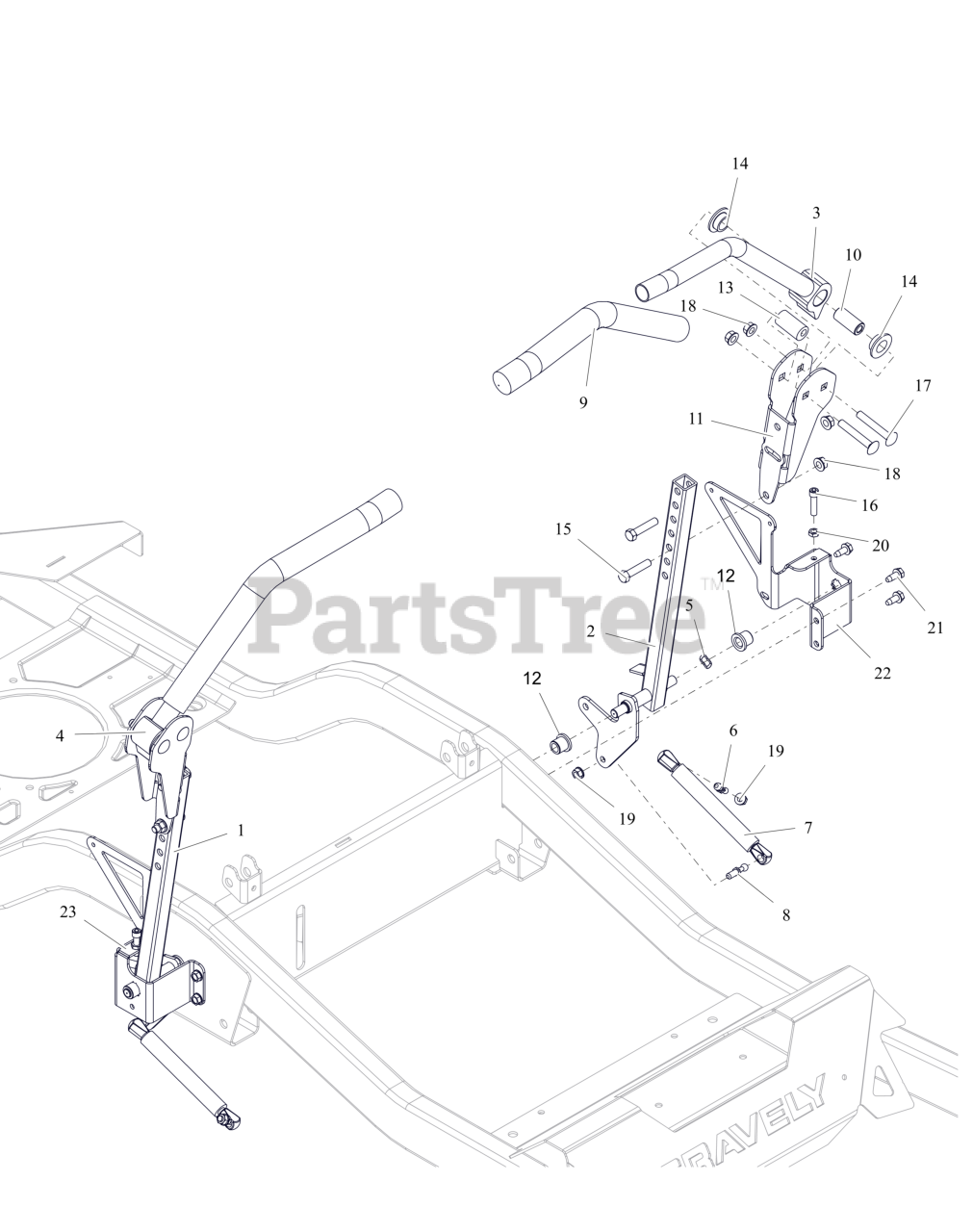

Controls Parts Diagram

  • Title

1

Gravely 05243953

WLDMT, STEERING RH (RED)

$62.99

$

Usually ships in 4-12 days

0

2

Gravely 05244053

WLDMT, STEERING -LH (RED)

$62.99

$

Usually ships in 4-12 days

0

3

Gravely 05261853

WLDMT, CONTROL HANDLE-LH (RED)

$71.99

$

Usually ships in 4-12 days

0

4

Gravely 05262153

WLDMT, CONTROL HANDLE-RH (RED)

$65.99

$

Usually ships in 4-12 days

0

5

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

6

Gravely 03652200

STUD- BALL

$3.49

$

In Stock, Qty 7

0

7

Gravely 03769800

DAMPER
(Superseded to 09689700)

$39.99

$

Usually ships in 4-12 days

0

8

Gravely 04097100

STUD-BALL-THREADED

$2.49

$

In Stock, Qty 15

0

9

Gravely 04383600

GRIP, HANDLEBAR

$35.99

$

Usually ships in 4-12 days

0

10

Gravely 04413600

SPACER, STEERING ARM

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 05068753

BRKT, ADJ UPPER CONTROL ARM (RED)

$25.99

$

Usually ships in 4-12 days

0

12

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 7

0

13

Gravely 05501223

BSHG, ECCENTRIC.406X.875X1.625

$4.99

$

In Stock, Qty 7

0

14

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$1.49

$

In Stock, only 4 left!

0

16

Gravely 05901826

SCR, SKH .312-18X1.25 GR8 ZC120

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 06200315

BLT, RHSSN.38-16X2.50 G5 ZCC

$3.49

$

In Stock, only 2 left!

0

18

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

In Stock, only 4 left!

0

20

Gravely 06500909

NUT-JAM .312-18 G2 ZCC

$0.99

$

In Stock, only 1 left!

0

21

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, only 2 left!

0

22

Gravely 09189953

BRKT, STEERING ARM MOUNTING -LH (RED)

$37.99

$

Usually ships in 4-12 days

0

23

Gravely 09190053

BRKT, STEERING ARM MOUNTING- RH (RED)

$38.99

$

Usually ships in 4-12 days

0
