991254 (Pro-Turn Z 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Gravely 764 Pro (SN: 000101 - 001999) Frame - 48" & 52" Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Gravely 764 Pro

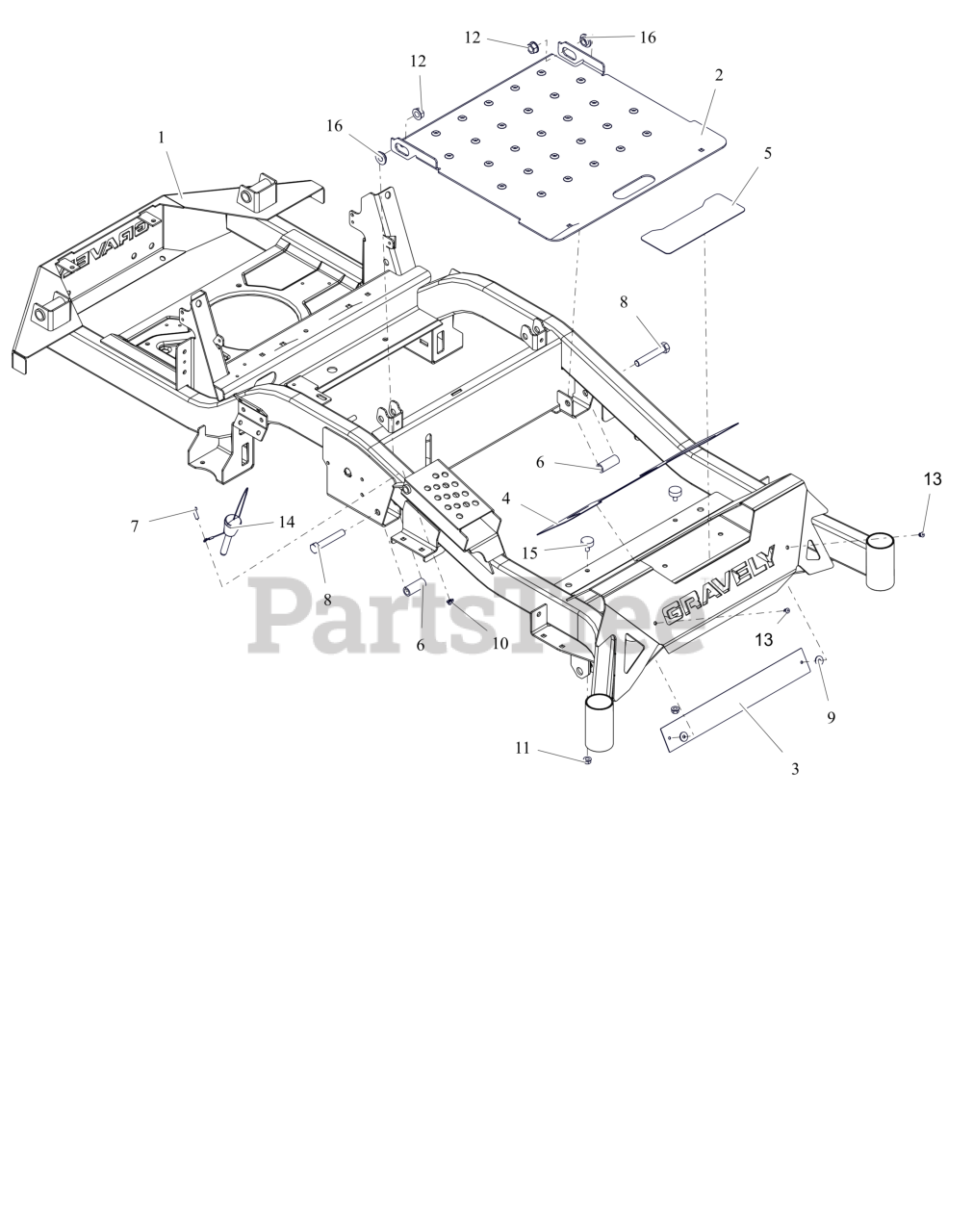

Frame - 48" & 52" Parts Diagram

  • Title

1

Gravely 59117500

WLDMT, MAIN FRAME -HD 44/52

$1318.99

$

Usually ships in 4-12 days

0

2

Gravely 59113500

KIT,ACCESS PANEL W/DECALS-RED

$103.99

$

Usually ships in 4-12 days

0

3

Gravely 04718451

PLATE, BACK FOOT-REST XL

$8.49

$

Usually ships in 4-12 days

0

4

Gravely 05104800

GRIP, FRONT

$18.99

$

Usually ships in 4-12 days

0

5

Gravely 05109100

GRIP, STEP

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 05501319

SPACER, .515X.75X1.83

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 12

0

8

Gravely 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$4.99

$

In Stock, Qty 8

0

9

Gravely 06401214

WSHR, RBR W/ADHESIVE .25X.75X.06

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 12

0

11

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, only 4 left!

0

12

Gravely 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06800120

RIVET, .1875 AL/AL .126-.250

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 06800203

PIN, MAGNETIC .50X2.50
(Superseded to 06800218)

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

16

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.49

$

In Stock, Qty 20+

0
