991256 (Pro-Turn Z 52) - Gravely Pro-Turn 52" Zero-Turn Mower, Gravely 764 Pro (SN: 002000 & Above) Engine Guard And Fenders Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Gravely 764 Pro

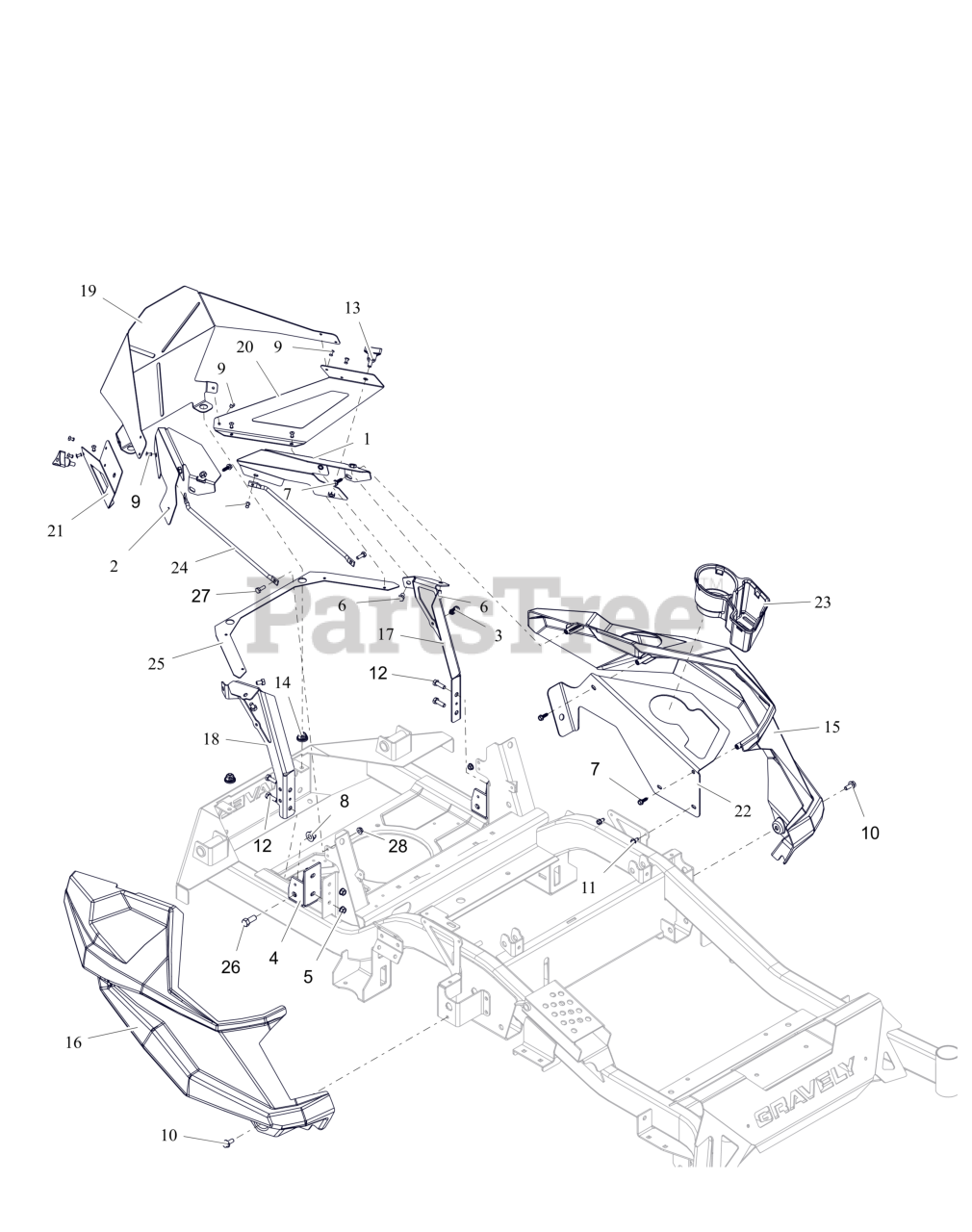

Engine Guard And Fenders Parts Diagram

  • Title

1

Gravely 09188853

PANEL, LH (RED)

$

$

Not available

2

Gravely 09188953

PANEL, RH (RED)

$

$

Not available

3

Gravely 04451600

CLIP, CABLE GUIDE

$2.49

$

In Stock, only 2 left!

0

4

Gravely 05248051

BRKT, ROPS SUPPORT

$33.99

$

Usually ships in 4-12 days

0

5

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05901904

BLT, HEX .31-18X.50 GR5 ZCC

$1.99

$

In Stock, Qty 13

0

7

Gravely 06100231

SCR, PLASTITE-HWH 0.25 X 0.75 ZC120

$1.99

$

In Stock, Qty 6

0

8

Gravely 06500811

NUT,NYL-FLG .44-14 GF ZCC

$6.49

$

In Stock, only 1 left!

0

9

Gravely 06800107

RIVET, #66 STEEL POP PD BLACK

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 07001820

BLT, SERHFWH 0.312-18X0.75 GR5 ZCC

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05901802

BLT, HEX .31-18X1.00 G8 ZCC

$1.99

$

In Stock, only 3 left!

0

13

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$6.99

$

In Stock, Qty 20+

0

14

Gravely 07500407

GROMMET, 10MM BOLLHOFF

$6.49

$

In Stock, Qty 20+

0

15

Gravely 09188100

FENDER, LH

$46.99

$

Usually ships in 4-12 days

0

16

Gravely 09188200

FENDER, RH

$46.99

$

Usually ships in 4-12 days

0

17

Gravely 09188353

BRKT, LH FENDER MTG (RED)

$

$

Not available

18

Gravely 09188453

BRKT, RH FENDER MTG (RED)

$

$

Not available

19

Gravely 09188551

WRAP, REAR (BLACK)

$81.99

$

In Stock, only 1 left!

0

20

Gravely 09188653

WRAP, REAR - LH (RED)

$25.99

$

In Stock, only 1 left!

0

21

Gravely 09188753

WRAP, REAR - RH (RED)

$25.99

$

Usually ships in 4-12 days

0

22

Gravely 09189153

PANEL, HD CUPHOLDER (RED)

$51.99

$

Usually ships in 4-12 days

0

23

Gravely 09190800

HOLDER, CUP

$11.99

$

In Stock, only 1 left!

0

24

Gravely 09362700

ROD, STIFFENER

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 09363253

STIFFENER, BACK WRAP (RED)

$25.99

$

Usually ships in 4-12 days

0

26

Gravely 05901913

BLT, HEX 0.4375-14X1 GR5 ZCC

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

28

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0
