991256 (Pro-Turn Z 52) - Gravely Pro-Turn 52" Zero-Turn Mower, Gravely 764 Pro (SN: 002000 & Above) Seat Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Gravely 764 Pro

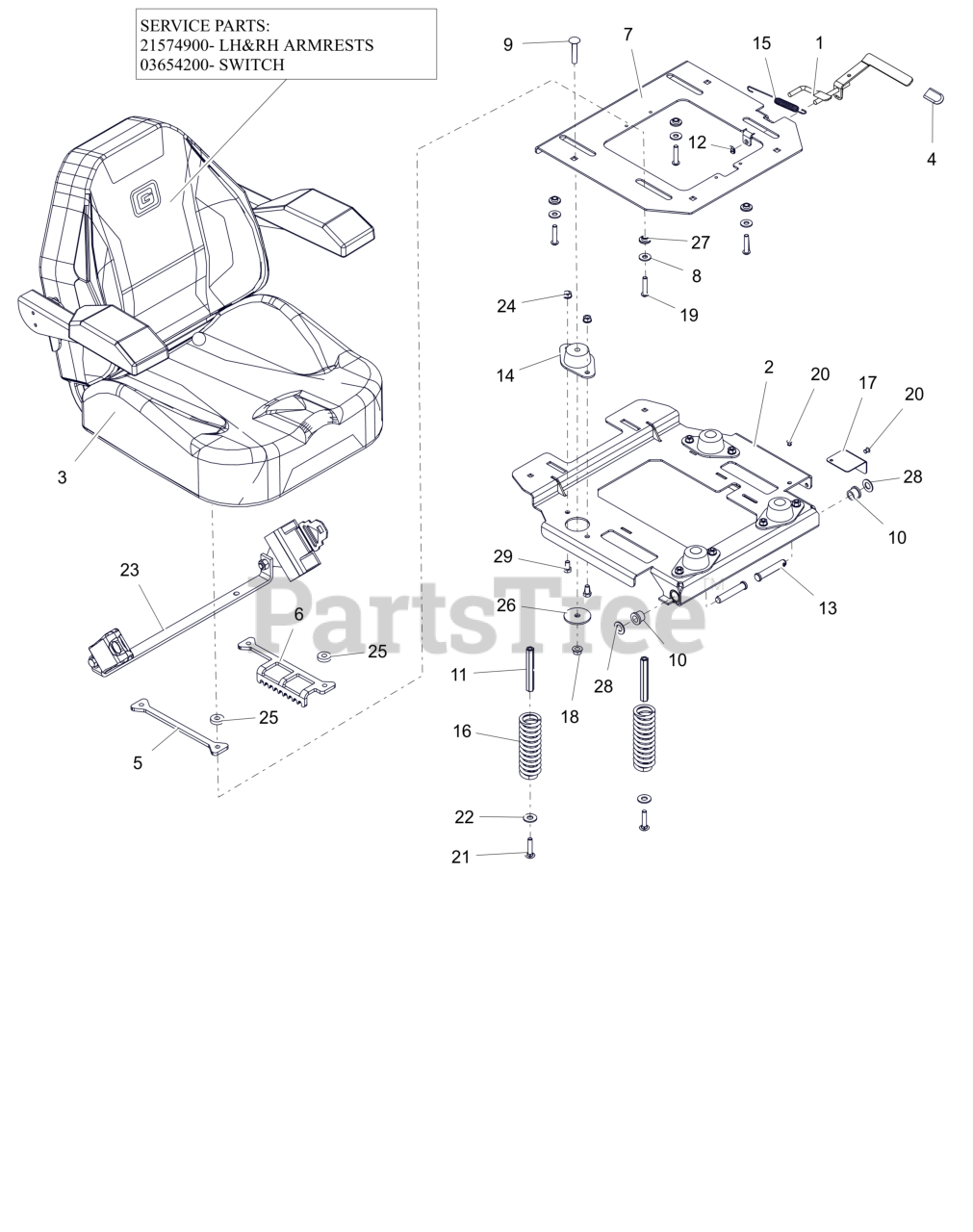

Seat Parts Diagram

  • Title

1

Gravely 05015251

WLDMT, SEAT SLIDE LEVER

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 05265451

WLDMT, ISO MTG PLATE (BLACK)

$152.99

$

Usually ships in 4-12 days

0

3

Gravely 09190900

SEAT, HD

$801.99

$

Usually ships in 4-12 days

0

3

Gravely 21574900

LH&RH ARMRESTS

Note: Service Component

$140.99

$

Usually ships in 4-12 days

0

3

Gravely 03652400

SWITCH
(Superseded to 03652459)

Note: Service Component

$

$

Not available

4

Gravely 04396600

GRIP, SEAT LEVER, GREY

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 09363451

PLATE, ADJ SEAT SLIDE (BLACK)

$11.99

$

Usually ships in 4-12 days

0

6

Gravely 09363551

PLATE, SEAT ADJ (BLACK)

$29.99

$

Usually ships in 4-12 days

0

7

Gravely 05133553

PLATE, SEAT MOUNTING (ISO KIT) (RED)

$72.99

$

In Stock, only 1 left!

0

8

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$3.49

$

In Stock, Qty 20+

0

10

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$6.99

$

In Stock, only 2 left!

0

11

Gravely 06500828

NUT, COUPLING 5/16X18 X 3.75

$13.99

$

In Stock, only 1 left!

0

12

Gravely 06514900

NUT-PUSH .312

$1.49

$

In Stock, Qty 9

0

13

Gravely 06800202

PIN, SLIC-.500X42.70X2.31 -ZC

$9.49

$

In Stock, Qty 7

0

14

Gravely 07500237

MOUNT, FAIL-SAFE COMPRESSION

$38.99

$

Usually ships in 4-12 days

0

15

Gravely 08300022

SG-TENS .06X.482X5.35

$6.99

$

In Stock, Qty 20+

0

16

Gravely 08300704

SPRING, COMPRESSION SEAT 224LB

$18.99

$

In Stock, only 2 left!

0

17

Gravely 05265551

GUARD, SEAT FAN (SH)(BLACK)

$22.99

$

Usually ships in 4-12 days

0

18

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

19

Gravely 05901727

SCR,BTNHD .31-18X1.50 ZCC

$5.49

$

In Stock, only 3 left!

0

20

Gravely 06800120

RIVET, .1875 AL/AL .126-.250

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$2.49

$

In Stock, Qty 9

0

22

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$2.99

$

In Stock, Qty 20+

0

23

Gravely 59110000

KIT-SEAT BELT REPLACE-05007300

$150.99

$

Usually ships in 4-12 days

0

24

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06401125

WSHR, FLT .390X1.00X.250 ZCC

$3.49

$

In Stock, Qty 7

0

26

Gravely 06401221

WSHR-FL-STL 0.406X2X0.125 ZCC

$4.99

$

In Stock, only 1 left!

0

27

Gravely 05501127

BSHG-FLG .325X.499X.3X.875

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06401115

WSHR, FLT .531X1.00X.063 ZCC

$1.49

$

In Stock, Qty 15

0

29

Gravely 05901832

BLT, HEX .31-18X.625 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0
