991271 (ZT HD Stealth 52) - Gravely 52" Zero-Turn Mower, Kawasaki FR (SN: 000101 & Above) Controls Parts Diagram

52" Zero-Turn Mower, Kawasaki FR

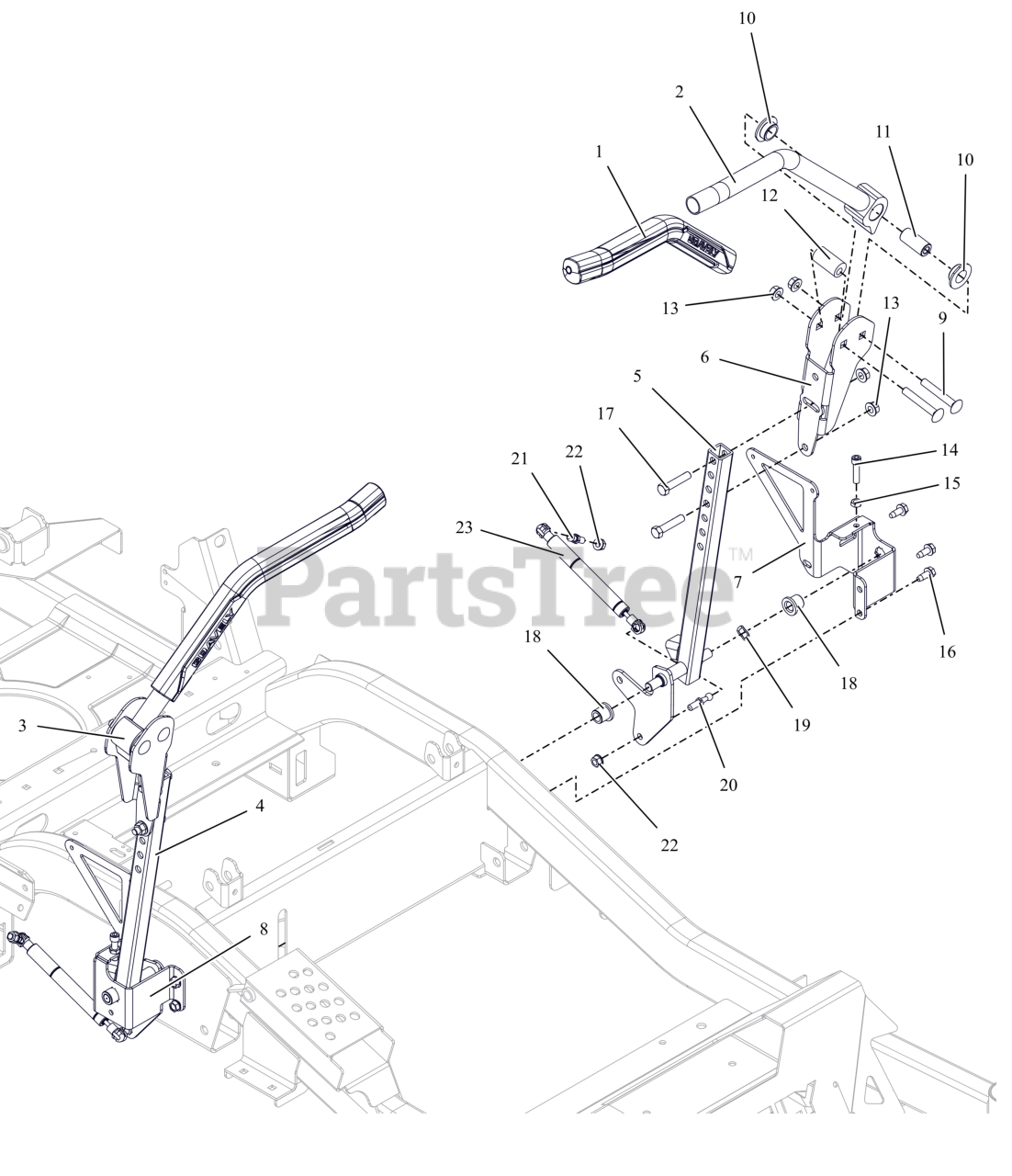

Controls Parts Diagram

  • Title

1

Gravely 05368700

GRIP- HANDLEBAR GRAVELY

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 05261851

WLDMT, CONTROL HANDLE-LH (BLACK)

$74.99

$

Usually ships in 4-12 days

0

3

Gravely 05262151

WLDMT, CONTROL HANDLE-RH (BLACK)

$80.99

$

In Stock, only 1 left!

0

4

Gravely 05243951

WLDMT, STEERING RH (BLACK)

$58.99

$

Usually ships in 4-12 days

0

5

Gravely 05244051

WLDMT, STEERING -LH (BLACK)

$63.99

$

In Stock, only 2 left!

0

6

Gravely 05068751

ADJ UPPER CONTROL ARM BRKT-BLK

$40.99

$

Usually ships in 4-12 days

0

7

Gravely 09189942

BRKT, STEERING ARM MOUNTING -LH (MATTE BLACK)

$

$

Currently unavailable

8

Gravely 09190042

BRKT, STEERING ARM MOUNTING- RH (MATTE BLACK)

$

$

Currently unavailable

9

Gravely 06200315

BLT, RHSSN.38-16X2.50 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

10

Gravely 05501517

BSHG, FLANGED .762 X 1.48 X .44 IGLIDER

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 04413600

SPACER, STEERING ARM

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 05501223

BSHG, ECCENTRIC.406X.875X1.625

$5.49

$

In Stock, only 2 left!

0

13

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05901826

SCR, SKH .312-18X1.25 GR8 ZC120

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 06500909

NUT-JAM .312-18 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.99

$

In Stock, only 2 left!

0

17

Gravely 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$1.99

$

In Stock, only 3 left!

0

18

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$5.49

$

In Stock, Qty 20+

0

19

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 20+

0

20

Gravely 04097100

STUD-BALL-THREADED

$2.99

$

In Stock, Qty 15

0

21

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

23

Gravely 09689700

DAMPER

$43.99

$

In Stock, Qty 20+

0
