991277 (ZT HD 52) - Gravely 52" Zero-Turn Mower, Kawasaki FR (SN: 130000 - 134999) Controls Parts Diagram

52" Zero-Turn Mower, Kawasaki FR

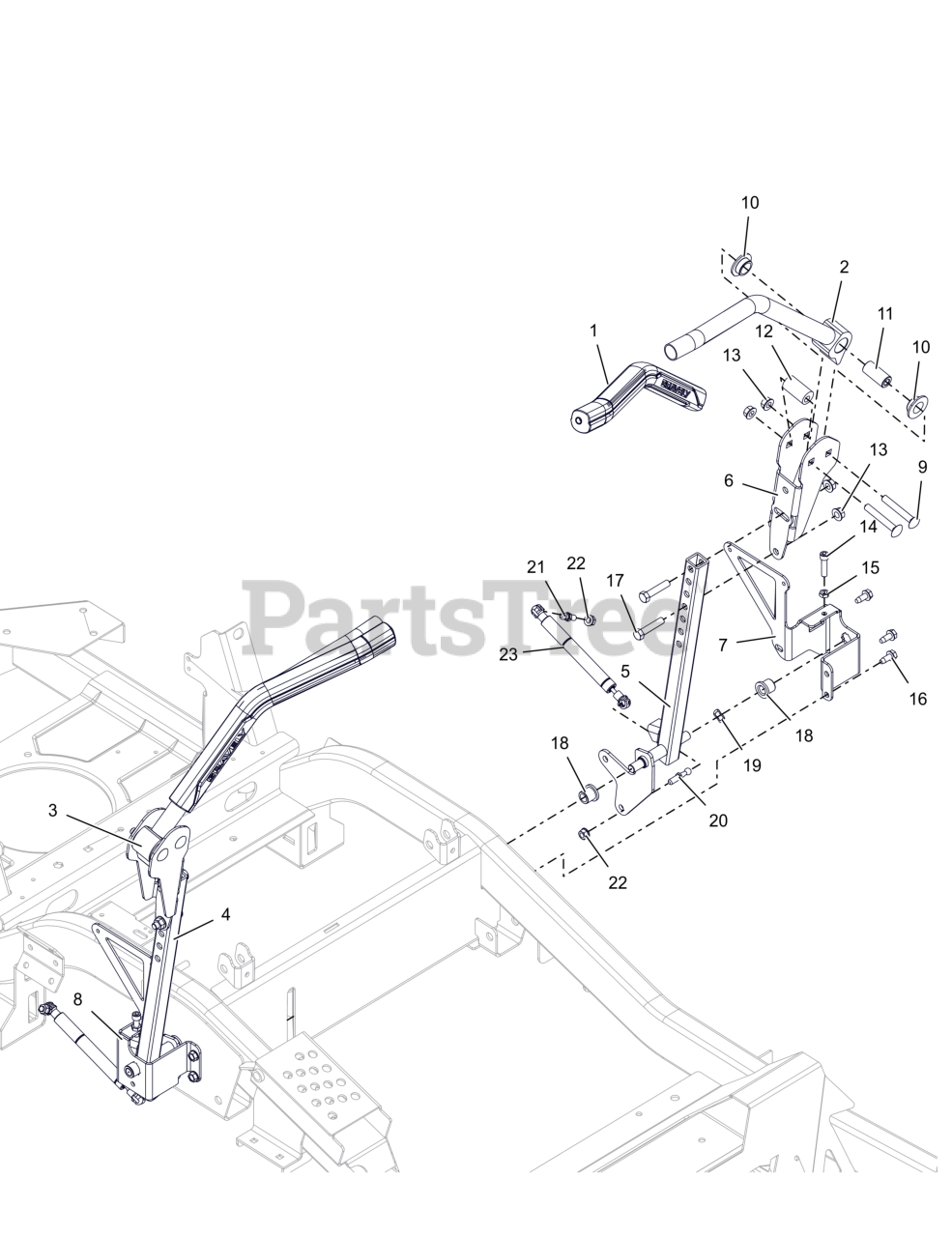

Controls Parts Diagram

  • Title

1

Gravely 05368700

GRIP- HANDLEBAR GRAVELY

$59.99

$

Usually ships in 4-12 days

0

2

Gravely 05261853

WLDMT, CONTROL HANDLE (RED)

$85.99

$

Usually ships in 4-12 days

0

3

Gravely 05262153

WLDMT, CONTROL HANDLE (RED)

$85.99

$

Usually ships in 4-12 days

0

4

Gravely 05243953

WLDMT, STEERING RH (RED)

$65.99

$

Usually ships in 4-12 days

0

5

Gravely 05244053

WLDMT, STEERING -LH (RED)

$65.99

$

In Stock, only 2 left!

0

6

Gravely 05068753

BRKT, ADJ UPPER CONTROL ARM (RED)

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 09189953

BRKT, STEERING ARM MOUNTING -LH (RED)

$39.99

$

Usually ships in 4-12 days

0

8

Gravely 09190053

BRKT, STEERING ARM MOUNTING- RH (RED)

$42.99

$

Usually ships in 4-12 days

0

9

Gravely 06200315

BLT, RHSSN.38-16X2.50 G5 ZCC

$4.99

$

In Stock, Qty 12

0

10

Gravely 05501517

BSHG, FLANGED .762 X 1.48 X .44 IGLIDER

$3.49

$

In Stock, Qty 12

0

11

Gravely 04413600

SPACER, STEERING ARM

$7.49

$

In Stock, only 2 left!

0

12

Gravely 05501223

BSHG, ECCENTRIC.406X.875X1.625

$5.99

$

In Stock, only 2 left!

0

13

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05901826

SCR, SKH .312-18X1.25 GR8 ZC120

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06500909

NUT-JAM .312-18 G2 ZCC

$1.99

$

In Stock, Qty 10

0

16

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$2.49

$

In Stock, Qty 12

0

17

Gravely 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

18

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$5.99

$

In Stock, Qty 20+

0

19

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$1.99

$

In Stock, Qty 15

0

20

Gravely 04097100

STUD-BALL-THREADED

$3.49

$

In Stock, Qty 13

0

21

Gravely 03652200

STUD- BALL

$4.99

$

In Stock, Qty 18

0

22

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0

23

Gravely 09689700

DAMPER

$68.99

$

In Stock, Qty 20+

0
