991281 (Pro-Turn Z 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FS (SN: 000101 & Above) Parking Brake Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FS

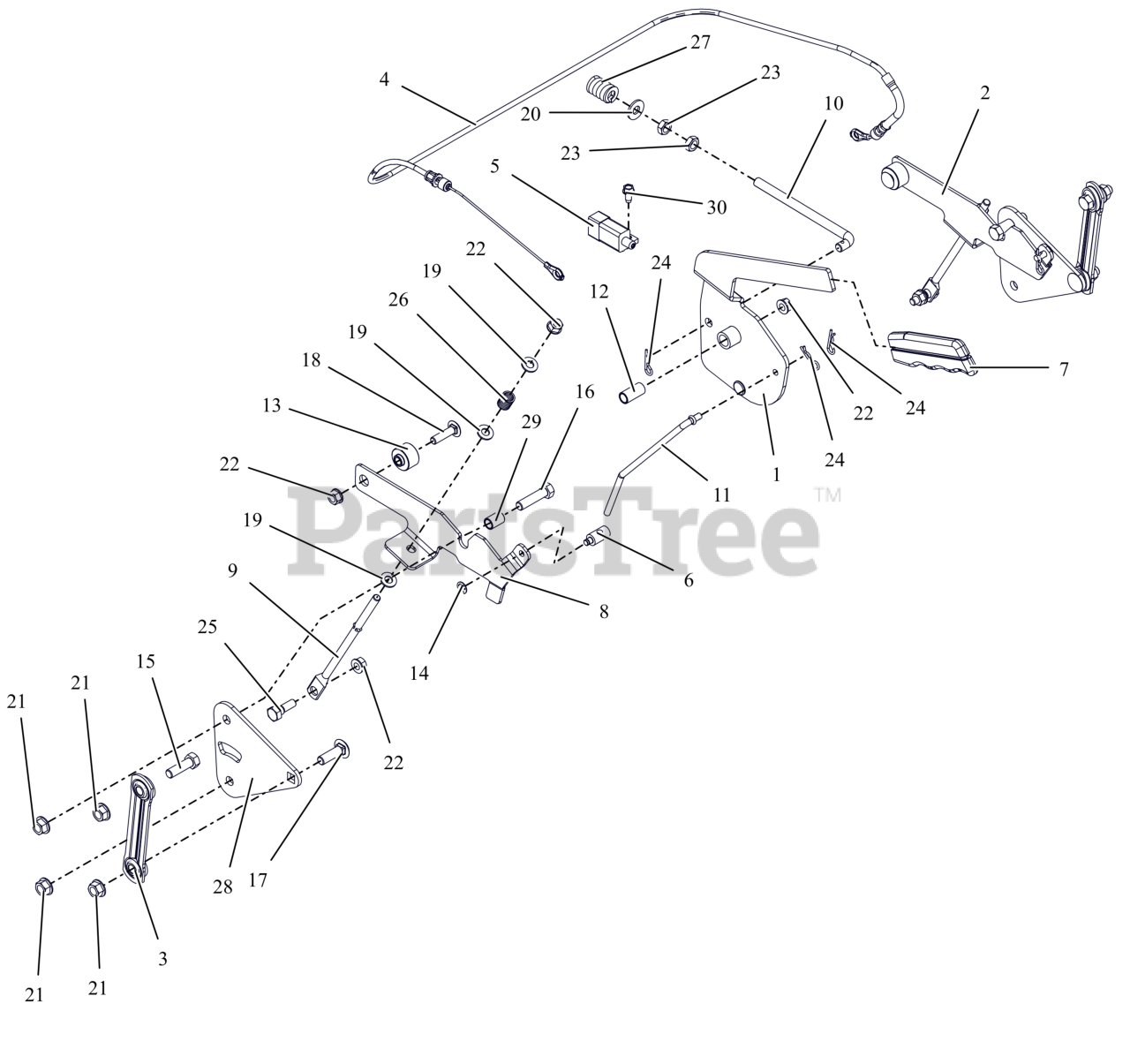

Parking Brake Parts Diagram

  • Title

1

Gravely 04998551

LEVER, PARKING BRAKE

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 04998600

ARM, BRAKE - LH (W/PIN)

$23.99

$

Usually ships in 4-12 days

0

3

Gravely 05199700

LINK, STAMPED STEERING

$16.99

$

In Stock, only 2 left!

0

4

Gravely 06900706

CABLE, BRAKE - PARKING

$30.99

$

In Stock, only 4 left!

0

5

Gravely 09675800

SWITCH-BRAKE NO/NO-POST & HOLE

$17.99

$

In Stock, only 2 left!

0

6

Gravely 03764800

TRUNION, 1/4-20

$14.99

$

In Stock, only 3 left!

0

7

Gravely 05097200

GRIP, PARKING (GRAY)

$6.49

$

Usually ships in 4-12 days

0

8

Gravely 09389500

ARM, BRAKE - RH

$21.99

$

Usually ships in 4-12 days

0

9

Gravely 04999000

ROD, LINK - TRANSMISSION BRAKE

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 04999100

ROD, OVER CENTER

$10.99

$

In Stock, only 1 left!

0

11

Gravely 05000600

ROD, BRAKE LINK

$14.99

$

In Stock, Qty 13

0

12

Gravely 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05501315

SPCR, FLANGE

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 05700125

RG-RTNG-EXT .250X.025

$1.49

$

In Stock, Qty 13

0

15

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.99

$

In Stock, Qty 16

0

16

Gravely 05901928

BLT, HEX .38-16X1.50 G5 ZCC

$1.99

$

In Stock, Qty 10

0

17

Gravely 06200236

BLT,RHSSN .38-16X1.25 G5 ZCC

$2.99

$

In Stock, Qty 12

0

18

Gravely 06200310

BTL,RHSSN .313-18 X 1.25 G5 ZCC

$1.99

$

In Stock, only 3 left!

0

19

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

25

Gravely 07001734

BOLT,SHLDR .38X.25 -.31-18X.75

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 08300028

SPRING, COMPRESSION

$5.49

$

In Stock, Qty 15

0

27

Gravely 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, Qty 6

0

28

Gravely 09191051

PLATE, TRANSAXLE (BLACK)

$13.99

$

Usually ships in 4-12 days

0

29

Gravely 09374800

SPCR SLEEVED .385X.500X.718

$1.49

$

Usually ships in 4-12 days

0

30

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
