991289 (Pro-Turn ZX 52) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 095000 & Above) Rear Tires and Transaxles-52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

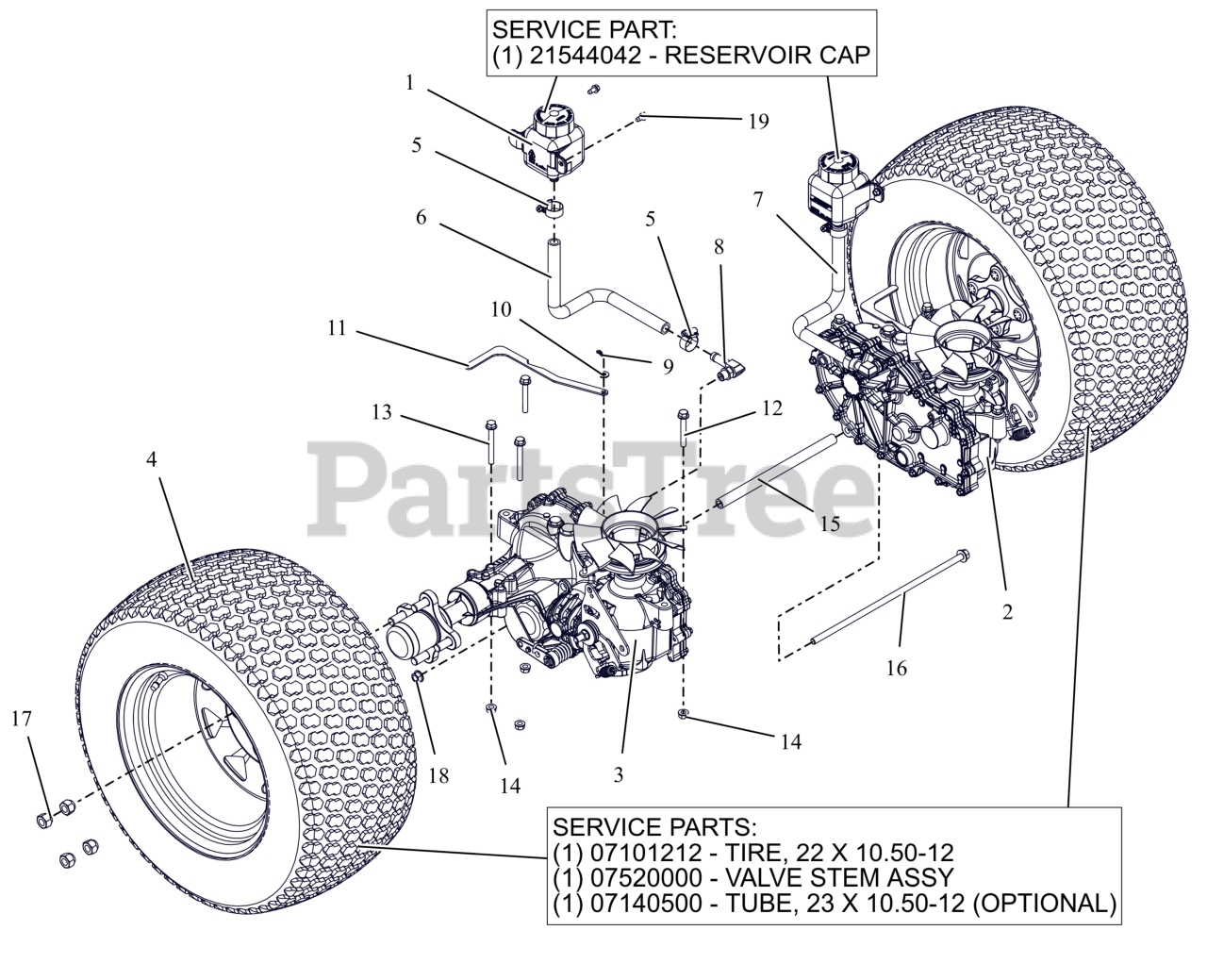

Rear Tires and Transaxles-52" Parts Diagram

  • Title

1

Gravely 02970200

TANK, EXPANSION

$38.99

$

In Stock, Qty 10

0

1

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: Component Service Part

$24.99

$

Usually ships in 4-12 days

0

2

Gravely 09360900

TRANSAXLE, ZT3200 - LH

$1422.99

$

Usually ships in 4-12 days

0

3

Gravely 09361000

TRANSAXLE, ZT3200 - RH

$1422.99

$

Usually ships in 4-12 days

0

4

Gravely 07101522

ASM, WHL/TIRE 22X10.5-12 LG BLK

$269.99

$

Usually ships in 4-12 days

0

4

Gravely 07101212

TIRE, 22X10.50-12

Note: Component Service Part

$175.99

$

Usually ships in 4-12 days

0

4

Gravely 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.99

$

In Stock, only 4 left!

0

4

Gravely 07140500

TUBE 22,23&24X8.50/9.50/10.00/10.50/12.00-12

Note: Component Service Part (Optional)

$48.99

$

Usually ships in 4-12 days

0

5

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

In Stock, Qty 6

0

6

Gravely 07001803

HOSE, FORMED EXPANSION -HD RH

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 07001804

HOSE, FORMED EXPANSION -HD LH

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 07001528

FITTING, HYD (90 DEG)

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 06700223

PIN, HAIR #225 .072X1.09

$0.99

$

In Stock, only 4 left!

0

10

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, only 3 left!

0

11

Gravely 05076751

BRKT, VALVE DUM

$8.49

$

Usually ships in 4-12 days

0

12

Gravely 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05196451

SPCR, TRANSAXLE .406 ID X .630 OD X 9.95LG (BLACK)

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 05901903

BLT, HEX-FLG 0.375-16X13 GR5 ZC120

$14.99

$

In Stock, only 3 left!

0

17

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
