991296 - Ariens Apex 48" Zero-Turn Mower, Kawasaki FR (SN: 100000 & Above) Control Panel - Apex Parts Diagram

Apex 48" Zero-Turn Mower, Kawasaki FR

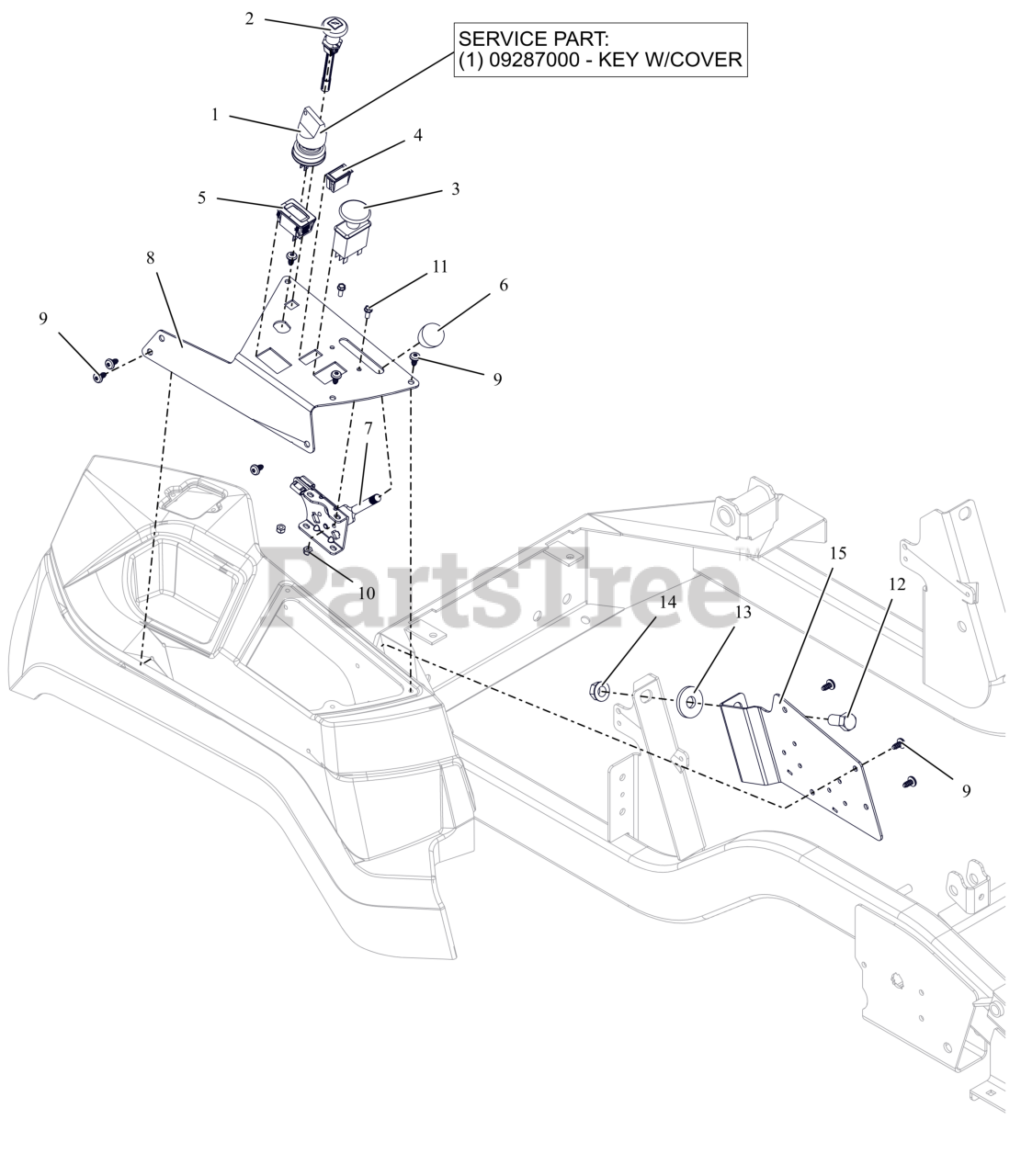

Control Panel - Apex Parts Diagram

  • Title

1

Ariens 04331600

SWITCH, IGNITION

$47.99

$

In Stock, Qty 20+

0

1

Ariens 09287000

KEY, W/ SHIELD

Note: Service Part Componenet

$17.99

$

In Stock, Qty 20+

0

2

Ariens 06900621

CABLE - CHOKE, SNAP-IN

$30.99

$

In Stock, Qty 7

0

3

Ariens 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

4

Ariens 09003300

SWITCH,BLANK

$5.49

$

Usually ships in 4-12 days

0

5

Ariens 05254800

HOUR METER
(Superseded to 09497400)

$25.99

$

In Stock, only 4 left!

0

6

Ariens 07500132

KNOB-CONTROL-BLACK .38-16X.50

$12.99

$

In Stock, only 2 left!

0

7

Ariens 06900619

CABLE, PRO THROTTLE CONTROL

$47.99

$

In Stock, Qty 10

0

8

Ariens 05108759

PLATE, APEX CONTROL PANEL

$23.99

$

Usually ships in 4-12 days

0

9

Ariens 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.99

$

In Stock, only 3 left!

0

10

Ariens 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05901825

BLT, HWH #10-24X.50 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05901715

BLT, HEX .50-13X1.00 G5 ZCC

$2.99

$

In Stock, Qty 7

0

13

Ariens 06401225

WSHR-FL-STL 0.562X1.5X0.187 ZCC

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05126951

BRKT, FENDER/RELAY MOUNTING

$23.99

$

Usually ships in 4-12 days

0
