991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 000101 - 002528) Anti-Scalp Rollers Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

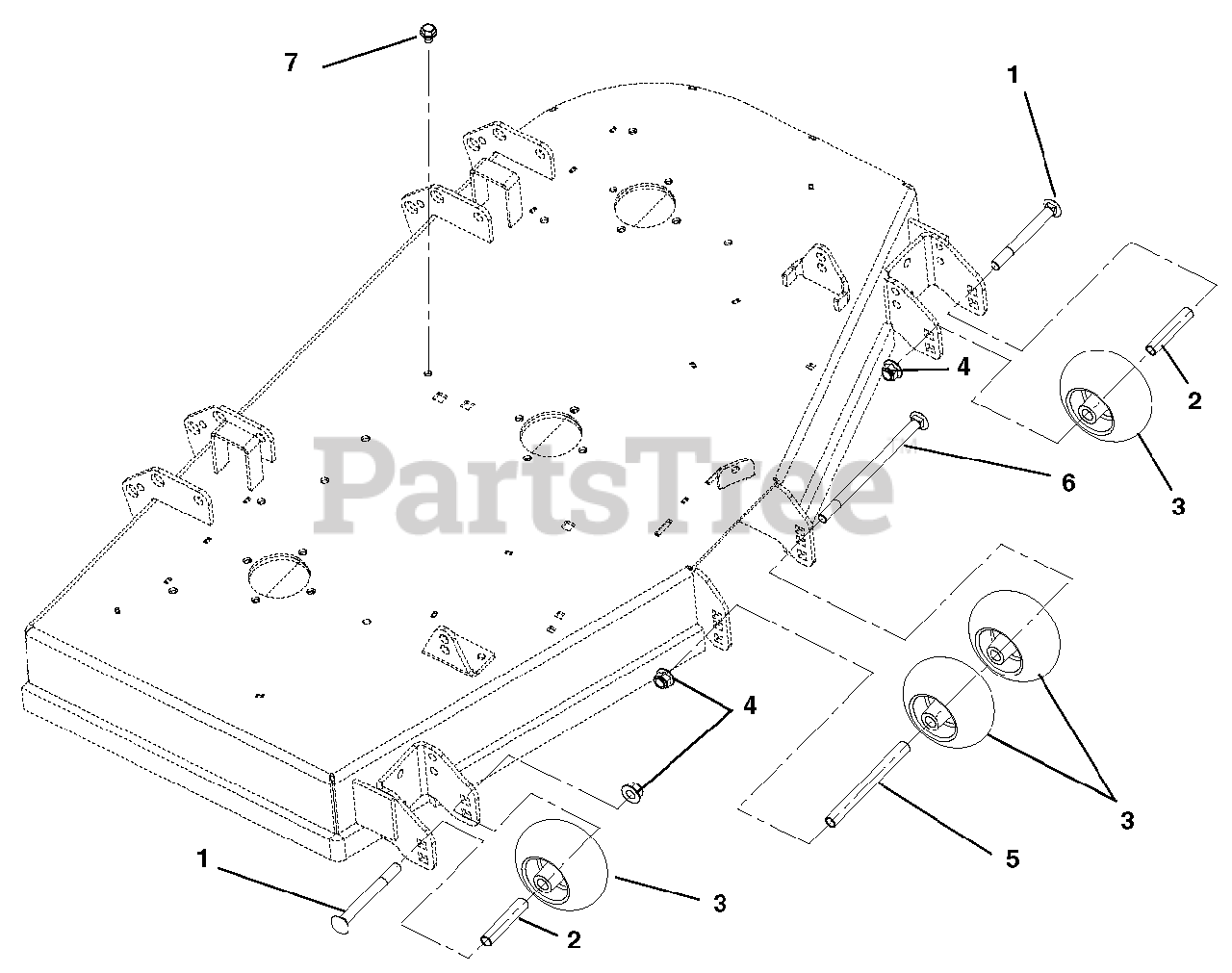

Anti-Scalp Rollers Parts Diagram

  • Title

1

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00
(Superseded to 06200505)

$5.99

$

In Stock, Qty 20+

0

2

Gravely 00473700

Spacer, .510 x .625 x 3.35

$18.99

$

In Stock, Qty 20+

0

3

Gravely 03905900

Anti-Scalp Wheel

$10.99

$

In Stock, Qty 20+

0

4

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 00473800

Spacer

$20.99

$

In Stock, Qty 20+

0

6

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

7

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0
