991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 000101 - 002528) Electrical Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

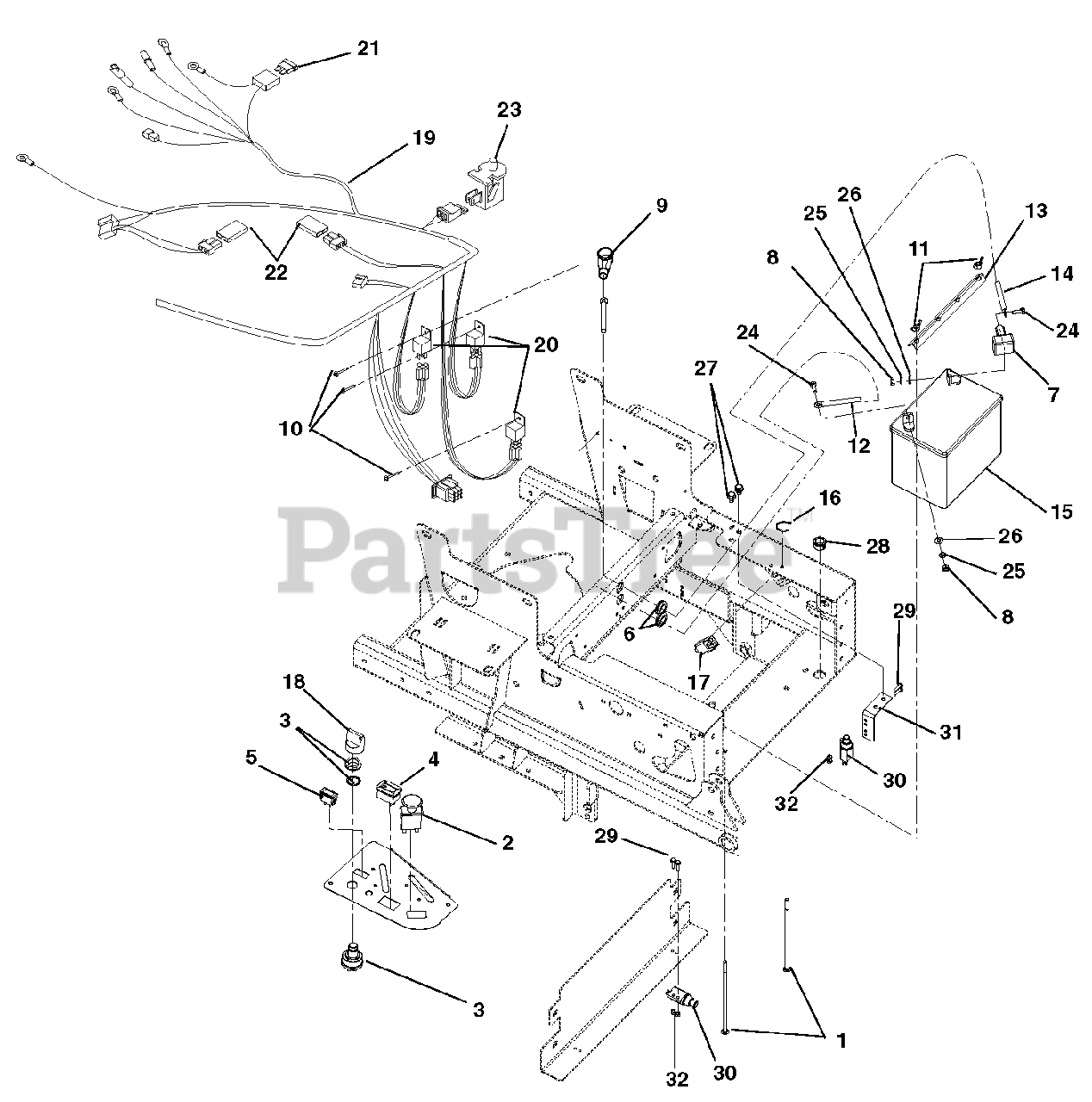

Electrical Parts Diagram

  • Title

1

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$5.49

$

In Stock, Qty 20+

0

2

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

3

Gravely 00464000

SWITCH, IGNITION
(Superseded to 04331600)

$47.99

$

In Stock, Qty 20+

0

4

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 15

0

5

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$7.99

$

In Stock, Qty 8

0

6

Gravely 07500031

GROMMET,RUBBER 5/8 ID/1.13 OD

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 07505700

INSULATOR

$10.99

$

In Stock, only 2 left!

0

8

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

9

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0

10

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

12

Gravely 03111101

CABLE, GROUND 22.00"

$23.99

$

In Stock, only 2 left!

0

13

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, only 4 left!

0

14

Gravely 03288400

CABLE-POSITIVE BATTERY 26.00"

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

16

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

17

Gravely 03834300

SWITCH, SNAP IN - N.O./N.O.

$15.99

$

In Stock, Qty 9

0

18

Gravely 09287000

KEY, W/ SHIELD

$17.99

$

In Stock, Qty 20+

0

19

Gravely 03287300

HARNESS - IZ, CZ, 100I
(Superseded to 04244800)

$336.99

$

Usually ships in 4-12 days

0

20

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

21

Gravely 00524600

FUSE, 30 AMP.

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

23

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.)

$9.99

$

In Stock, Qty 20+

0

24

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

25

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

26

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 1 left!

0

29

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

30

Gravely 09251900

SWITCH-SINGLE POLE N.O.W/COVER

Note: (N.O.) with Cover

$23.99

$

In Stock, only 1 left!

0

31

Gravely 09251253

MOUNT - SWITCH

$40.99

$

Usually ships in 4-12 days

0

32

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

Gravely 04180800

HARNESS,CE FOOT&SEAT PLT SWTCH

$

$

Not available
