991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 000101 - 002528) Frame Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

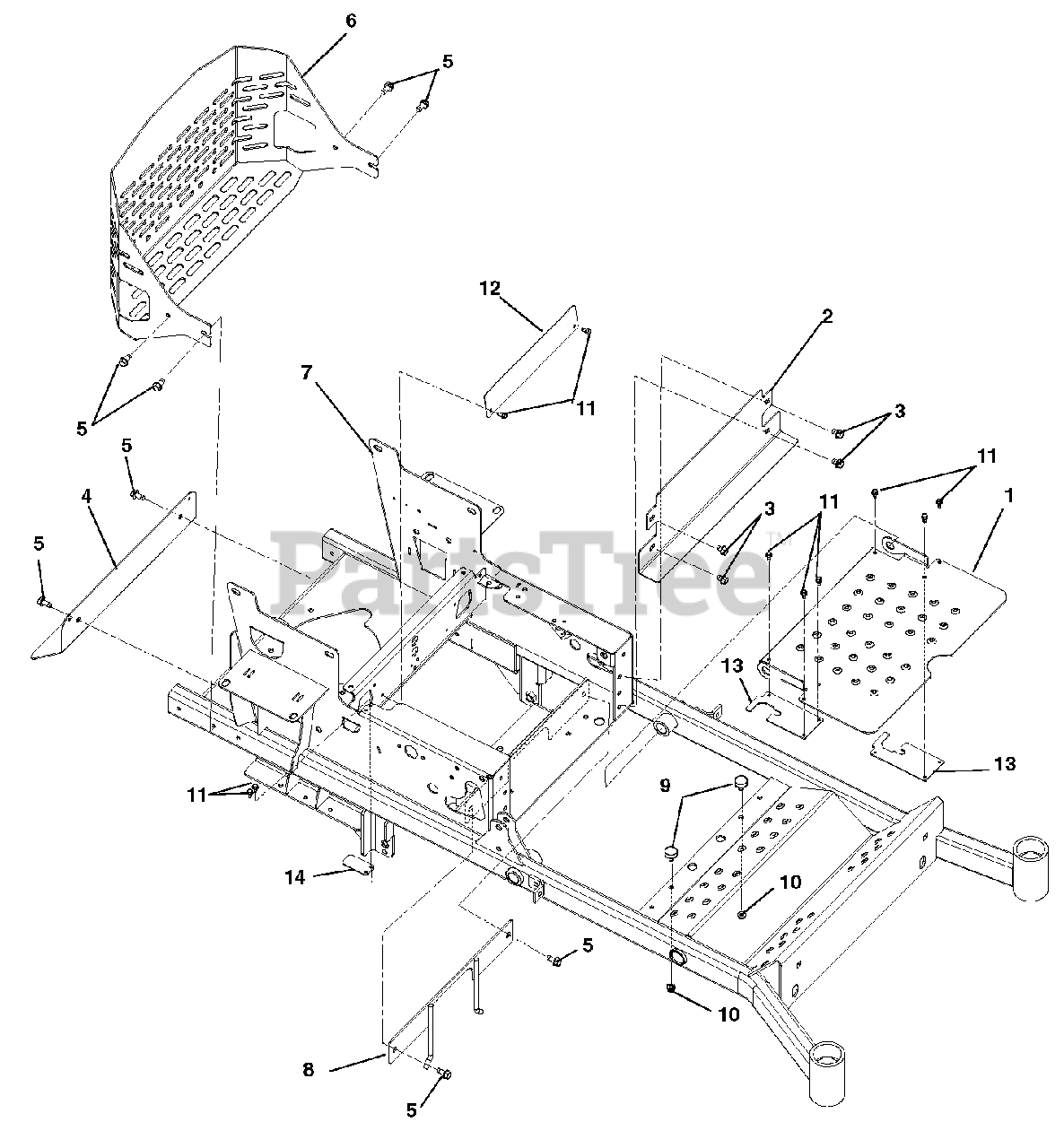

Frame Parts Diagram

  • Title

1

Gravely 03765751

Foot Plate

$

$

Not available

2

Gravely 03765953

Kick Plate

$27.99

$

Usually ships in 4-12 days

0

3

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

4

Gravely 03948151

Muffler Heat Shield

$72.99

$

In Stock, only 1 left!

0

5

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03983153

Pro-Turn 100 Bumper

$

$

Not available

7

Gravely 03983053

Pro-Turn 100 48" Main Frame Weldment

$

$

Not available

8

Gravely 04053651

PTO Belt Finger Weldment

$28.99

$

Usually ships in 4-12 days

0

9

Gravely 07533600

Bumper, Rubber

$14.99

$

In Stock, only 4 left!

0

10

Gravely 06530400

Nut, Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

11

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 04145753

Fan Cover

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 04143651

Pro-Turn 100 CE Foot Plate Finger Cover

$

$

Not available

14

Gravely 04186553

Finger Cover

$6.49

$

Usually ships in 4-12 days

0
