991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 000101 - 002528) Frame Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

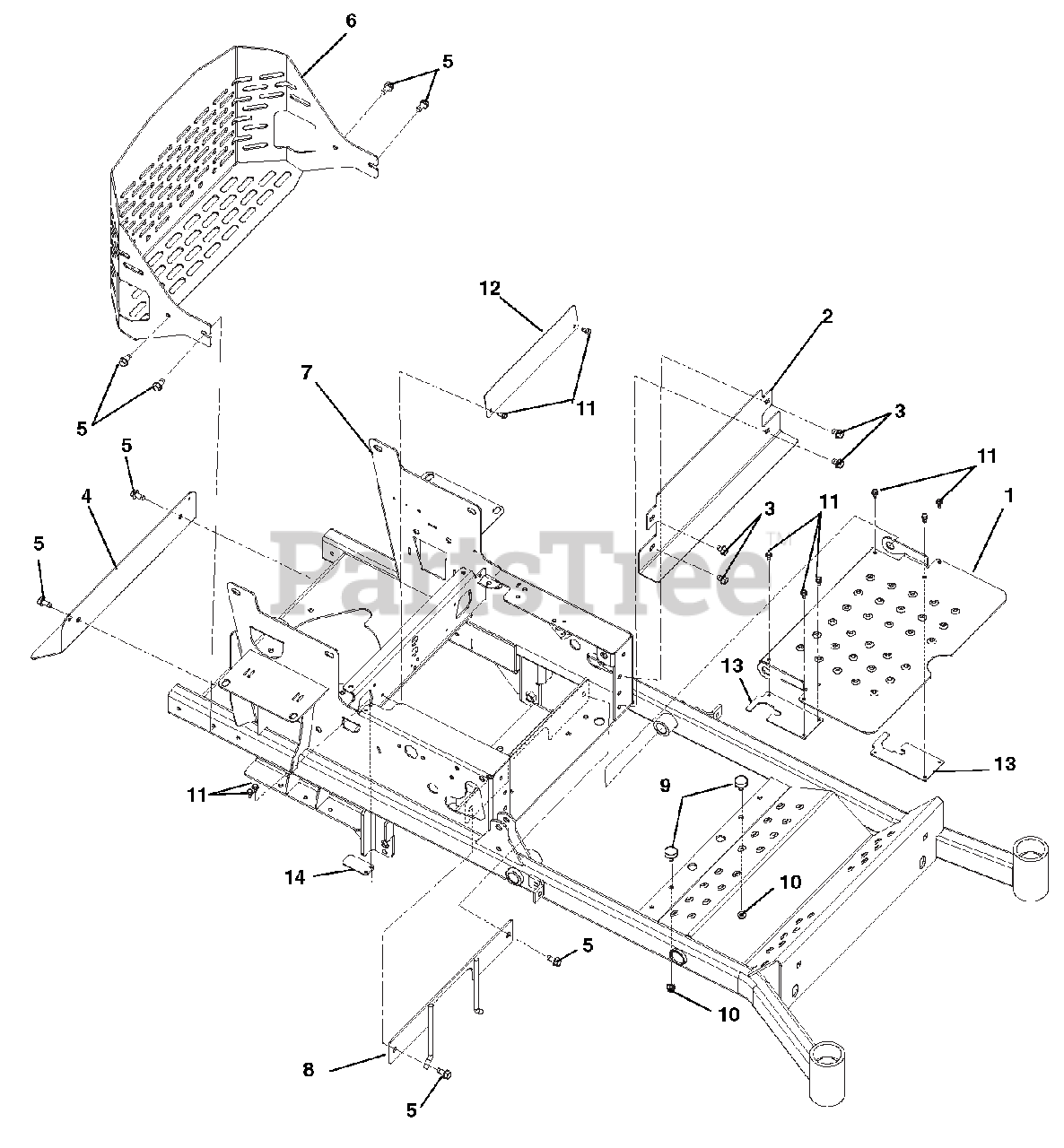

Frame Parts Diagram

  • Title

1

Gravely 03765751

PLATE, 100I FOOT - BLACK

$

$

Not available

2

Gravely 03765953

100I KICK PLATE - RED

$29.99

$

Usually ships in 4-12 days

0

3

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 03948151

MUFFLER HEAT SHIELD - BLACK

$77.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 03983153

PRO-TURN 100 BUMPER (CE) - RED

$

$

Not available

7

Gravely 03983053

PT100 48" FRAME WMT (CE) - RED

$

$

Not available

8

Gravely 04053651

PTO BELT FINGER WLDMT - BLK

$29.99

$

Usually ships in 4-12 days

0

9

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 1 left!

0

10

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 04145753

FAN GUARD - RED

$7.49

$

Usually ships in 4-12 days

0

13

Gravely 04143651

PT100 CE FT PLT FNGR GUARD-BLK

$

$

Not available

14

Gravely 04186553

FINGER GUARD - RED

$7.49

$

Usually ships in 4-12 days

0
