991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 000101 - 002528) Transmission-Left Hand Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

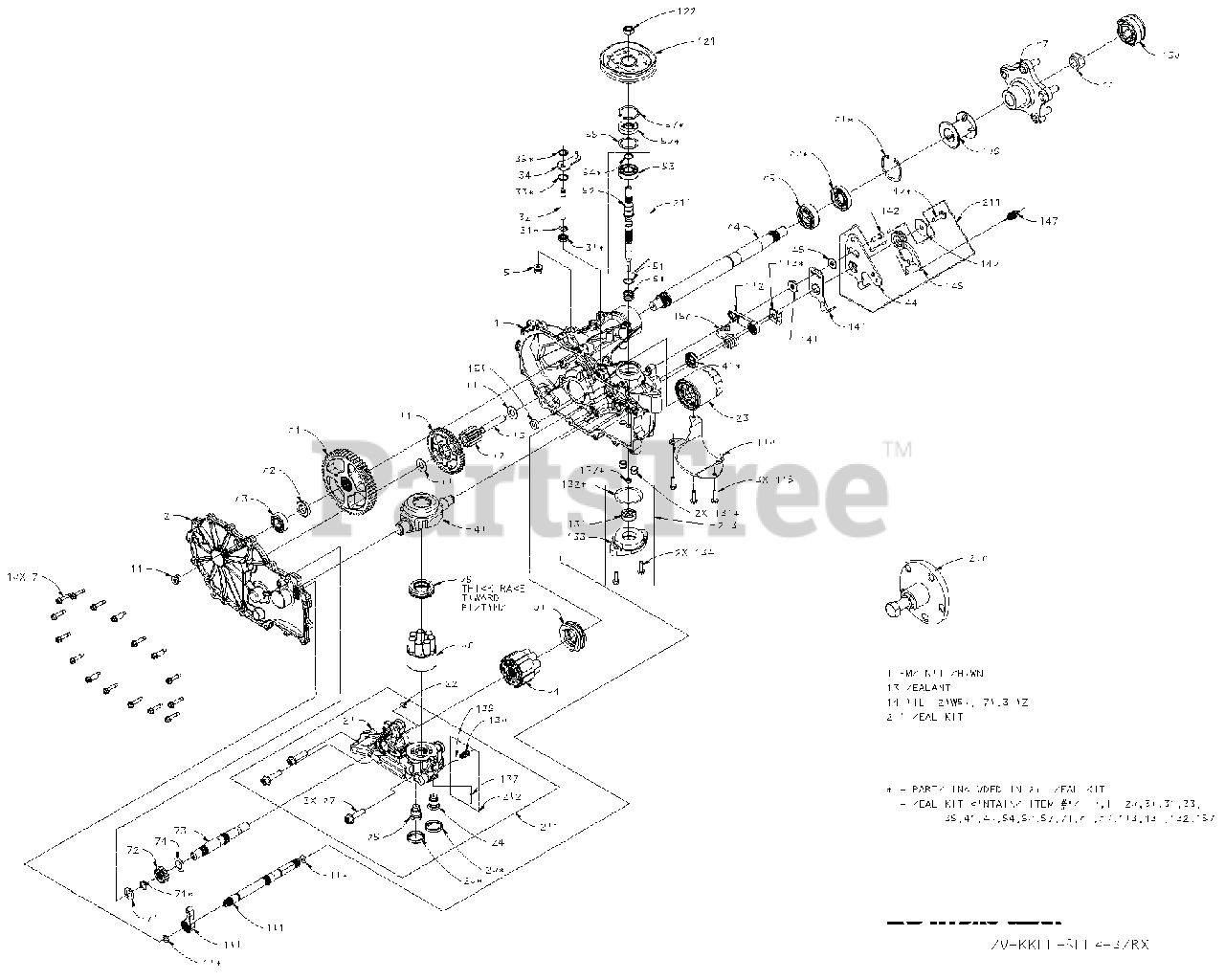

Transmission-Left Hand Parts Diagram

  • Title

1

Gravely 71986

KIT, HOUSING,MAIN,LH,CHRG,CNTL

$

$

Not available

HOUSING, MAIN, LH, CHRG, CNTL

$

$

Not available

BUSHING, .624 x .719 x .562

$

$

Not available

BRG, JRNL .86 x .98 x .79

$

$

Not available

PIN, .25 x .375

$

$

Not available

(105)

HFHCS 1/4-20 x .75

$

$

Not available

(134)

HFHCS 1/4-20 x .75

$

$

Not available

2

Gravely 71992

KIT, COVER, SIDE, LH

$

$

Not available

COVER, SIDE, LH

$

$

Not available

BUSHING, .624 x .719 x .562

$

$

Not available

BRG, JRNL .86 x .98 x .79

$

$

Not available

5

Gravely 9005110-5600

PLUG 9/16-18 (METAL)

Note: (METAL)

$

$

Not available

7

Gravely 53246

HFHCS 1/4-20 x 1.125"

$

$

Not available

10

Gravely 051804

BALL, GRADE 200
(Superseded to 03467900)

$

$

Not available

11

Gravely 9005110-5600

PLUG 9/16-18 (METAL)

Note: (METAL)

$

$

Not available

13

Gravely 050928

IPL,YANMAR DIESEL

$

$

Not available

14

SYNTHETIC OIL, 15W50

$

$

Not available

22

Gravely 51448

PLATE, BYPASS

$

$

Not available

23

Gravely 52114

FILTER, OIL

$

$

Not available

26

Gravely 52162

SEAL, PLUG 1.250 x .250

$

$

Not available

27

Gravely 52137

HFHCS 3/8-16 x 1.5 (PATCH)

Note: (PATCH)

$

$

Not available

30

Gravely 051626

TRANSAXLE
(Superseded to 03488400)

$

$

Not available

31

Gravely 51628

RING, RET .375 EXTRNL

$

$

Not available

32

Gravely 52136

ROD, BYPASS

$

$

Not available

33

Gravely 051627

KIT-EATON 850/851 TO 851 TAPER
(Superseded to 59000100)

$

$

Not available

34

Gravely 52370

ARM, BYPASS

$

$

Not available

35

Gravely 51630

RING, RTNG .375 EXT

$

$

Not available

40

Gravely 051048

SPRG,GOVERNOR
(Superseded to 20989900)

$

$

Not available

41

Gravely 051140

ARM, IDLER PIVOT

$

$

Not available

45

Gravely 044130

DECAL,12
(Superseded to 05211800)

$

$

Not available

46

Gravely 51812

TWHCS 5/16-24 x 1.00 (PATCH)

Note: (PATCH)

$

$

Not available

50

Gravely 2003014

SPRING, BLOCK

$

$

Not available

51

Gravely 2003017

WASHER-FLAT .59 x .79 x .04

$

$

Not available

55

Gravely 050951

OM&IPL FRONT MOUNT KIT

$

$

Not available

56

Gravely 51161

SEAL, LIP 17 x 40 x 7

$

$

Not available

57

Gravely 050329

ASM,THROTTLE CONDUIT
(Superseded to 06929500)

$

$

Not available

60

Gravely 51462

BEARING, THRUST

$

$

Not available

64

Gravely 71579

ASS'Y, CYLINDER BLOCK, 16cc

$

$

Not available

65

Gravely 053502

DECAL, WARNING EYE
(Superseded to 05350200)

$33.99

$

Usually ships in 4-12 days

0

69

Gravely 71971

ASS'Y, BLOCK 7 PISTON

$

$

Not available

70

Gravely 044371

WOOD .75X1.50X37.50 GR3

$

$

Not available

71

Gravely 044145

PRO MASTER 18 HP

$

$

Not available

72

Gravely 52342

GEAR, 13T, STEEL

$

$

Not available

73

Gravely 52150

SHAFT, MOTOR

$

$

Not available

74

Gravely 051069

SHEAVE,FAN (4" DRIVE)

$

$

Not available

80

Gravely 050132

LEVER,CHOKE CONTROL 8 HP
(Superseded to 06929300)

$

$

Not available

81

Gravely 52343

GEAR, 46T

$

$

Not available

82

Gravely 052586

KIT,PNEUMATIC TIRE REPLACEMENT
(Superseded to 58903200)

$290.99

$

Usually ships in 4-12 days

0

83

Gravely 051083

HOOK,CHUTE

Note: (PIN)

$

$

Not available

90

Gravely 50859

RING, RET 2.06 INT

$

$

Not available

91

Gravely 53327

GEAR, 54T

$

$

Not available

92

Gravely 53336

SPACER, .750 x 1.320 x .257

$

$

Not available

93

Gravely 44121

BEARING, BALL, .75 x 40 x 12

$

$

Not available

94

Gravely 53527

SHAFT, AXLE

$

$

Not available

95

Gravely 50771

BRG, BALL 25.4 x 52 x 15

$

$

Not available

96

Gravely 50772

SEAL, LIP 1.000 x 2.049 x .375

$

$

Not available

97

Gravely 71691

KIT, HUB, 5 BOLT

$

$

Not available

HUB, TAPER 3.56, 5 BOLT

$

$

Not available

STUD, 1/2-20 x 1.5 (RIB NECK)

Note: (RIB NECK)

$

$

Not available

99

Gravely 50863

NUT, HEX LOCK 3/4-16

$

$

Not available

100

Gravely 052776

V-BELT, HA-RAW EDGE
(Superseded to 07223800)

$28.99

$

In Stock, only 2 left!

0

101

Gravely 52640

SHAFT, BRAKE

$

$

Not available

102

Gravely 51979

KIT HANDLE, ACTUATING

$

$

Not available

103

Gravely 052027

40" RETRO FIT KIT 935 SERIES
(Superseded to 53601200)

$

$

Not available

105

Gravely 53464

SCREW, HEX FLANGE 1/4-20 x .625

$

$

Not available

106

Gravely 52247

GUARD, FILTER, LH

$

$

Not available

121

Gravely 53218

PULLEY, 4.5 x 1.625

$

$

Not available

122

Gravely 44133

NUT,HEX JAM 1/2-20 W/ PATCH

$

$

Not available

130

Gravely 52157

TUBE, CONNECTING

$

$

Not available

131

Gravely 50273

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: (1.9 cc/rev)

$

$

Not available

132

Gravely 52250

O-RING, -137, 0.103 x 2.050

$

$

Not available

133

Gravely 53468

COVER, CHARGE PUMP

$

$

Not available

134

Gravely 53464

SCREW, HEX FLANGE 1/4-20 x .625

$

$

Not available

140

Gravely 52527

SPACER .320 x 1.005 x .179

$

$

Not available

141

Gravely 51946

ARM, NEUTRAL LEFT

$

$

Not available

142

Gravely 51616

SHCS 5/16-24 x 1 PATCH

$

$

Not available

146

Gravely 51950

WASHER, .343 x 1.500 x .062

$

$

Not available

147

Gravely 51833

SPRING, EXTNSN RTN-34LBS

$

$

Not available

157

Gravely 53456

SEAL, LIP 8 x 12 x 3 VC

$

$

Not available

158

Gravely 51100

MAGNET, RING

$

$

Not available

159

Gravely 53483

SPRING, TORSION CW

$

$

Not available

165

Gravely 53496

TUBE, AXLE 2.04

$

$

Not available

200

Gravely 71976

KIT, SEAL

$

$

Not available

PIN, .25 x .375

$

$

Not available

(10)

O-RING - 111 .103 x 424

$

$

Not available

(26)

SEAL, PLUG 1.250 x .250

$

$

Not available

(30)

SEAL, LIP .375 x .75 x .25

$

$

Not available

(31)

RING, RET .375 EXTRNL

$

$

Not available

(33)

RING, RET .750 INTRNL

$

$

Not available

(35)

RING, RTNG .375 EXT

$

$

Not available

(41)

SEAL, LIP 12 x 32 x 7

$

$

Not available

(46)

TWHCS 5/16-24 x 1.00 (PATCH)

Note: (PATCH)

$

$

Not available

54

RING, RET. WIRE .561

$

$

Not available

(56)

SEAL, LIP 17 x 40 x 7

$

$

Not available

(57)

RING, RETAINING

$

$

Not available

(71)

RING, RETAINING_.625

$

$

Not available

(90)

RING, RET 2.06 INT

$

$

Not available

(96)

SEAL, LIP 1.000 x 2.049 x .375

$

$

Not available

(103)

CLIP, RETAINING

$

$

Not available

(130)

TUBE, CONNECTING

$

$

Not available

(132)

O-RING, -137, 0.103 x 2.050

$

$

Not available

(157)

SEAL, LIP 8 x 12 x 3 VC

$

$

Not available

201

Gravely 71973

KIT, CENTER SECTION, LH, CHRG

$

$

Not available

20

CENTER SECTION, LH, CHRG

$

$

Not available

(22)

PLATE, BYPASS

$

$

Not available

24

SHOCK VALVE ASSEMBLY 220 BAR

$

$

Not available

25

SHOCK VALVE ASSEMBLY 220 BAR

$

$

Not available

(26)

SEAL, PLUG 1.250 x .250

$

$

Not available

(27)

HFHCS 3/8-16 x 1.5 (PATCH)

Note: (PATCH)

$

$

Not available

BEARING, JOURNAL .50 x .59 x .50

$

$

Not available

135

BALL 7/16

$

$

Not available

136

SPRING, RELIEF

$

$

Not available

137

PIN, SPRING .125 x .875

$

$

Not available

202

Gravely 71436

KIT, CHARGE RELIEF

$

$

Not available

135

BALL 7/16

$

$

Not available

136

SPRING, RELIEF

$

$

Not available

137

PIN, SPRING .125 x .875

$

$

Not available

203

Gravely 71977

KIT, CHARGE PUMP

$

$

Not available

(131)

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: (1.9 cc/rev)

$

$

Not available

(132)

O-RING, -137, 0.103 x 2.050

$

$

Not available

(133)

COVER, CHARGE PUMP

$

$

Not available

(134)

HFHCS 1/4-20 x .75

$

$

Not available

209

Gravely 71784

HUB PULLER, 5 BOLT

$

$

Not available

210

Gravely 71978

KIT, INPUT SHAFT

$

$

Not available

52

SHAFT, INPUT

$

$

Not available

53

BRG, BALL 17 x 40 x 12

$

$

Not available

54

RING, RET WIRE .561 ID

$

$

Not available

211

KIT, RTN, CCW

$

$

Not available

44

ARM, CONTROL, LH

$

$

Not available

(46)

TWHCS 5/16-24 x 1.00 (PATCH)

Note: (PATCH)

$

$

Not available

145

ASSEMBLY, RTN, CCW

$

$

Not available
