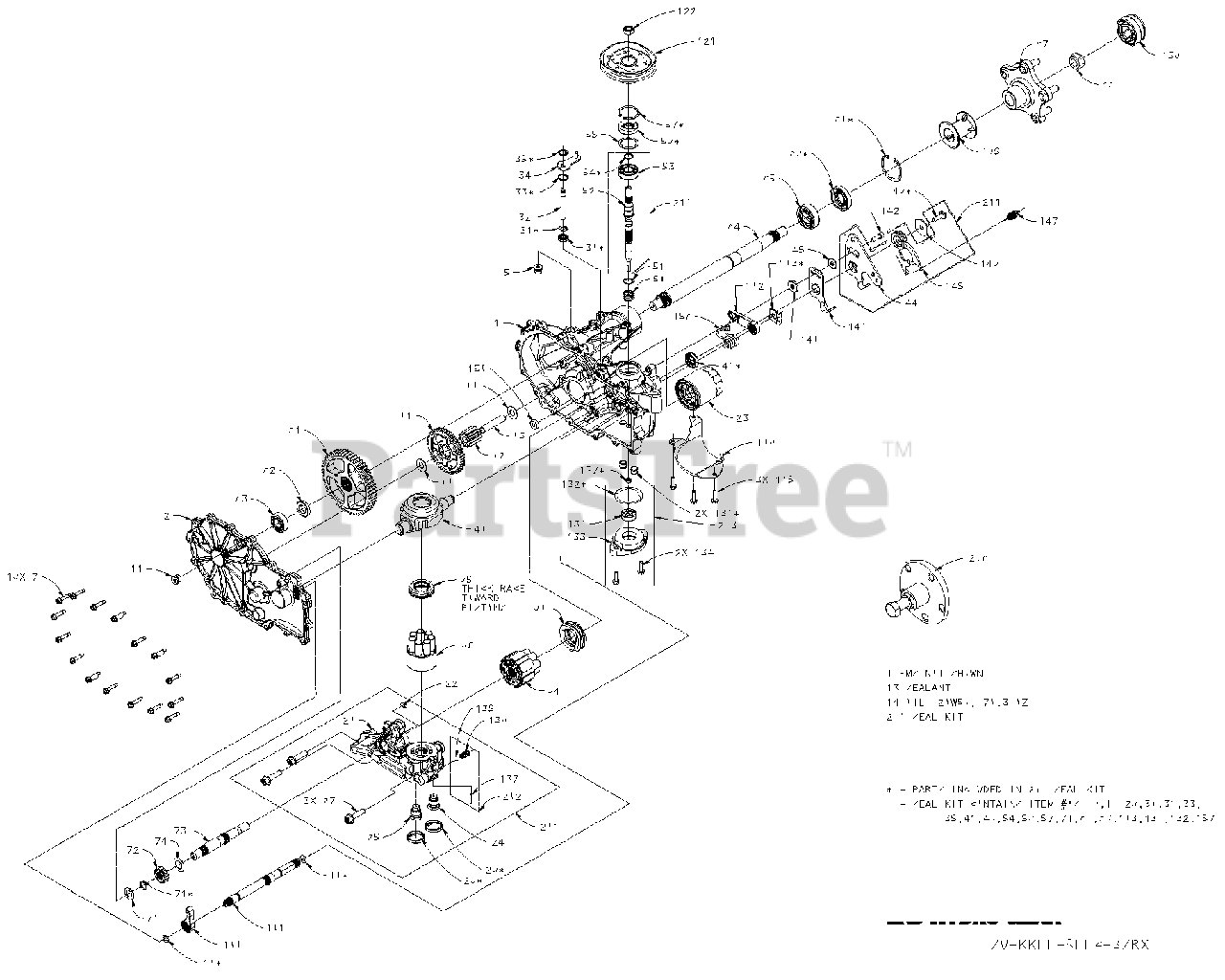

991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 000101 - 002528) Transmission-Left Hand Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

Transmission-Left Hand Parts Diagram

  • Title

1

Gravely 71986

KIT, HOUSING,MAIN,LH,CHRG,CNTL

$

$

Not available

HOUSING, MAIN, LH, CHRG, CNTL

HOUSING, MAIN, LH, CHRG, CNTL

$

$

Not available

BUSHING, .624 x .719 x .562

BUSHING, .624 x .719 x .562

$

$

Not available

BRG, JRNL .86 x .98 x .79

BRG, JRNL .86 x .98 x .79

$

$

Not available

PIN, .25 x .375

PIN, .25 x .375

$

$

Not available

(105)

HFHCS 1/4-20 x .75

HFHCS 1/4-20 x .75

$

$

Not available

(134)

HFHCS 1/4-20 x .75

HFHCS 1/4-20 x .75

$

$

Not available

2

Gravely 71992

KIT, COVER, SIDE, LH

$

$

Not available

COVER, SIDE, LH

COVER, SIDE, LH

$

$

Not available

5

Gravely 9005110-5600

PLUG 9/16-18 (METAL)

Note: (METAL)

$

$

Not available

7

Gravely 53246

HFHCS 1/4-20 x 1.125"

$

$

Not available

10

51804

O-RING - 111 .103 x 424

$

$

Not available

11

Gravely 9005110-5600

PLUG 9/16-18 (METAL)

Note: (METAL)

$

$

Not available

13

50928

SEALANT

$

$

Not available

14

SYNTHETIC OIL, 15W50

SYNTHETIC OIL, 15W50

$

$

Not available

22

Gravely 51448

PLATE, BYPASS

$

$

Not available

23

Gravely 52114

FILTER, OIL

$

$

Not available

26

Gravely 52162

SEAL, PLUG 1.250 x .250

$

$

Not available

27

Gravely 52137

HFHCS 3/8-16 x 1.5 (PATCH)

Note: (PATCH)

$

$

Not available

30

51626

SEAL, LIP .375 x .75 x .25

$

$

Not available

31

Gravely 51628

RING, RET .375 EXTRNL

$

$

Not available

32

Gravely 52136

ROD, BYPASS

$

$

Not available

33

51627

RING, RET .750 INTRNL

$

$

Not available

34

Gravely 52370

ARM, BYPASS

$

$

Not available

35

Gravely 51630

RING, RTNG .375 EXT

$

$

Not available

40

51048

TRUNNION, SWASHPLATE

$

$

Not available

41

51140

SEAL, LIP 12 x 32 x 7

$

$

Not available

45

44130

WASHER .34 x .88 x .06

$

$

Not available

46

Gravely 51812

TWHCS 5/16-24 x 1.00 (PATCH)

Note: (PATCH)

$

$

Not available

50

Gravely 2003014

SPRING, BLOCK

$

$

Not available

51

Gravely 2003017

WASHER-FLAT .59 x .79 x .04

$

$

Not available

55

50951

WASHER 1.23 x 1.56 x .04

$

$

Not available

56

Gravely 51161

SEAL, LIP 17 x 40 x 7

$

$

Not available

57

50329

RING, RETAINING

$

$

Not available

60

Gravely 51462

BEARING, THRUST

$

$

Not available

64

Gravely 71579

ASS'Y, CYLINDER BLOCK, 16cc

$

$

Not available

65

53502

BRG, THRUST PLASTIC CAGE

$

$

Not available

69

Gravely 71971

ASS'Y, BLOCK 7 PISTON

$

$

Not available

70

44371

WASHER .63 x 1.0 x .05

$

$

Not available

71

44145

RING, RETAINING_.625

$

$

Not available

72

Gravely 52342

GEAR, 13T, STEEL

$

$

Not available

73

Gravely 52150

SHAFT, MOTOR

$

$

Not available

74

51069

WASHER .72 x 1.16 x .04

$

$

Not available

80

50132

WASHER .5 x 1.0 x .03

$

$

Not available

81

Gravely 52343

GEAR, 46T

$

$

Not available

82

52586

GEAR, 11T, STEEL

$

$

Not available

83

51083

JACK SHAFT (PIN)

Note: (PIN)

$

$

Not available

90

Gravely 50859

RING, RET 2.06 INT

$

$

Not available

91

Gravely 53327

GEAR, 54T

$

$

Not available

92

Gravely 53336

SPACER, .750 x 1.320 x .257

$

$

Not available

93

Gravely 44121

BEARING, BALL, .75 x 40 x 12

$

$

Not available

94

Gravely 53527

SHAFT, AXLE

$

$

Not available

95

Gravely 50771

BRG, BALL 25.4 x 52 x 15

$

$

Not available

96

Gravely 50772

SEAL, LIP 1.000 x 2.049 x .375

$

$

Not available

97

Gravely 71691

KIT, HUB, 5 BOLT

$

$

Not available

HUB, TAPER 3.56, 5 BOLT

HUB, TAPER 3.56, 5 BOLT

$

$

Not available

STUD, 1/2-20 x 1.5 (RIB NECK)

STUD, 1/2-20 x 1.5 (RIB NECK)

Note: (RIB NECK)

$

$

Not available

99

Gravely 50863

NUT, HEX LOCK 3/4-16

$

$

Not available

100

52776

PAWL, BRAKE

$

$

Not available

101

Gravely 52640

SHAFT, BRAKE

$

$

Not available

102

Gravely 51979

KIT HANDLE, ACTUATING

$

$

Not available

103

52027

CLIP, RETAINING

$

$

Not available

105

Gravely 53464

SCREW, HEX FLANGE 1/4-20 x .625

$

$

Not available

106

Gravely 52247

GUARD, FILTER, LH

$

$

Not available

121

Gravely 53218

PULLEY, 4.5 x 1.625

$

$

Not available

122

Gravely 44133

NUT,HEX JAM 1/2-20 W/ PATCH

$

$

Not available

130

Gravely 52157

TUBE, CONNECTING

$

$

Not available

131

Gravely 50273

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: (1.9 cc/rev)

$

$

Not available

132

Gravely 52250

O-RING, -137, 0.103 x 2.050

$

$

Not available

133

Gravely 53468

COVER, CHARGE PUMP

$

$

Not available

134

Gravely 53464

SCREW, HEX FLANGE 1/4-20 x .625

$

$

Not available

140

Gravely 52527

SPACER .320 x 1.005 x .179

$

$

Not available

141

Gravely 51946

ARM, NEUTRAL LEFT

$

$

Not available

142

Gravely 51616

SHCS 5/16-24 x 1 PATCH

$

$

Not available

146

Gravely 51950

WASHER, .343 x 1.500 x .062

$

$

Not available

147

Gravely 51833

SPRING, EXTNSN RTN-34LBS

$

$

Not available

157

Gravely 53456

SEAL, LIP 8 x 12 x 3 VC

$

$

Not available

158

Gravely 51100

MAGNET, RING

$

$

Not available

159

Gravely 53483

SPRING, TORSION CW

$

$

Not available

165

Gravely 53496

TUBE, AXLE 2.04

$

$

Not available

200

Gravely 71976

KIT, SEAL

$

$

Not available

(10)

O-RING - 111 .103 x 424

O-RING - 111 .103 x 424

$

$

Not available

(26)

SEAL, PLUG 1.250 x .250

SEAL, PLUG 1.250 x .250

$

$

Not available

(30)

SEAL, LIP .375 x .75 x .25

SEAL, LIP .375 x .75 x .25

$

$

Not available

(31)

RING, RET .375 EXTRNL

RING, RET .375 EXTRNL

$

$

Not available

(33)

RING, RET .750 INTRNL

RING, RET .750 INTRNL

$

$

Not available

(35)

RING, RTNG .375 EXT

RING, RTNG .375 EXT

$

$

Not available

(41)

SEAL, LIP 12 x 32 x 7

SEAL, LIP 12 x 32 x 7

$

$

Not available

(46)

TWHCS 5/16-24 x 1.00 (PATCH)

TWHCS 5/16-24 x 1.00 (PATCH)

Note: (PATCH)

$

$

Not available

54

RING, RET. WIRE .561

RING, RET. WIRE .561

$

$

Not available

(56)

SEAL, LIP 17 x 40 x 7

SEAL, LIP 17 x 40 x 7

$

$

Not available

(57)

RING, RETAINING

RING, RETAINING

$

$

Not available

(71)

RING, RETAINING_.625

RING, RETAINING_.625

$

$

Not available

(90)

RING, RET 2.06 INT

RING, RET 2.06 INT

$

$

Not available

(96)

SEAL, LIP 1.000 x 2.049 x .375

SEAL, LIP 1.000 x 2.049 x .375

$

$

Not available

(103)

CLIP, RETAINING

CLIP, RETAINING

$

$

Not available

(130)

TUBE, CONNECTING

TUBE, CONNECTING

$

$

Not available

(132)

O-RING, -137, 0.103 x 2.050

O-RING, -137, 0.103 x 2.050

$

$

Not available

(157)

SEAL, LIP 8 x 12 x 3 VC

SEAL, LIP 8 x 12 x 3 VC

$

$

Not available

201

Gravely 71973

KIT, CENTER SECTION, LH, CHRG

$

$

Not available

20

CENTER SECTION, LH, CHRG

CENTER SECTION, LH, CHRG

$

$

Not available

(22)

PLATE, BYPASS

PLATE, BYPASS

$

$

Not available

24

SHOCK VALVE ASSEMBLY 220 BAR

SHOCK VALVE ASSEMBLY 220 BAR

$

$

Not available

25

SHOCK VALVE ASSEMBLY 220 BAR

SHOCK VALVE ASSEMBLY 220 BAR

$

$

Not available

(27)

HFHCS 3/8-16 x 1.5 (PATCH)

HFHCS 3/8-16 x 1.5 (PATCH)

Note: (PATCH)

$

$

Not available

BEARING, JOURNAL .50 x .59 x .50

BEARING, JOURNAL .50 x .59 x .50

$

$

Not available

135

BALL 7/16

BALL 7/16

$

$

Not available

136

SPRING, RELIEF

SPRING, RELIEF

$

$

Not available

137

PIN, SPRING .125 x .875

PIN, SPRING .125 x .875

$

$

Not available

202

Gravely 71436

KIT, CHARGE RELIEF

$

$

Not available

203

Gravely 71977

KIT, CHARGE PUMP

$

$

Not available

(131)

GEROTOR ASSEMBLY (1.9 cc/rev)

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: (1.9 cc/rev)

$

$

Not available

(133)

COVER, CHARGE PUMP

COVER, CHARGE PUMP

$

$

Not available

209

Gravely 71784

HUB PULLER, 5 BOLT

$

$

Not available

210

Gravely 71978

KIT, INPUT SHAFT

$

$

Not available

52

SHAFT, INPUT

SHAFT, INPUT

$

$

Not available

53

BRG, BALL 17 x 40 x 12

BRG, BALL 17 x 40 x 12

$

$

Not available

54

RING, RET WIRE .561 ID

RING, RET WIRE .561 ID

$

$

Not available

211

KIT, RTN, CCW

KIT, RTN, CCW

$

$

Not available

44

ARM, CONTROL, LH

ARM, CONTROL, LH

$

$

Not available

145

ASSEMBLY, RTN, CCW

ASSEMBLY, RTN, CCW

$

$

Not available
