991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 010500 - 019999) Mower Deck And Belt Covers - Rear Discharge Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

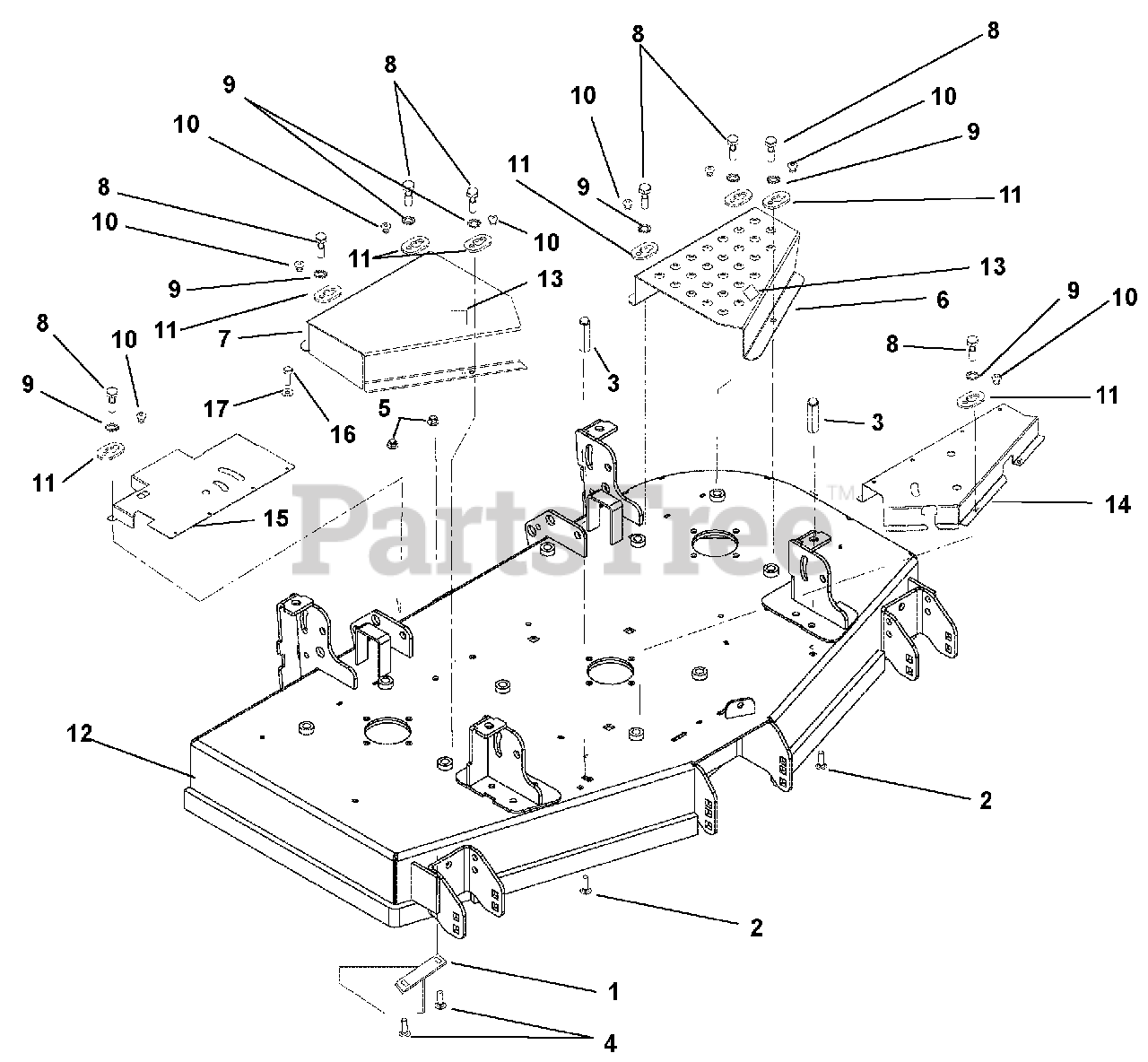

Mower Deck And Belt Covers - Rear Discharge Parts Diagram

  • Title

1

Gravely 00502453

REAR DISCH DEFLECT BFL WMT-RED

$40.99

$

Usually ships in 4-12 days

0

2

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$4.99

$

In Stock, Qty 20+

0

3

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$29.99

$

In Stock, Qty 17

0

4

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 04100051

GUARD, LH PT200 CE BELT

$

$

Not available

7

Gravely 04099951

GUARD, RH PT200 CE BELT

$

$

Not available

8

Gravely 07001625

BLT,HEX.38-16X1.25 GR5 CAPTIVE

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 06308700

WSHR-LK-EXT.391X.628X.036YWZC

$2.49

$

In Stock, only 2 left!

0

10

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, Qty 5

0

11

Gravely 04183000

KEEPER, BOLT

$7.49

$

Usually ships in 4-12 days

0

12

Gravely 04316153

48"PT100 RR DISCH DECK WMT-RED

$

$

Not available

13

Gravely 05359400

DECAL, PINCH POINT

$17.99

$

Usually ships in 4-12 days

0

14

Gravely 04508051

WMT-FRONT BELT SHIELD

$

$

Not available

15

Gravely 04498351

SHIELD - BELT - REAR

$

$

Not available

16

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

17

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0
