991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 020000 - 029999) Frame (S/N 022000 - and up) Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

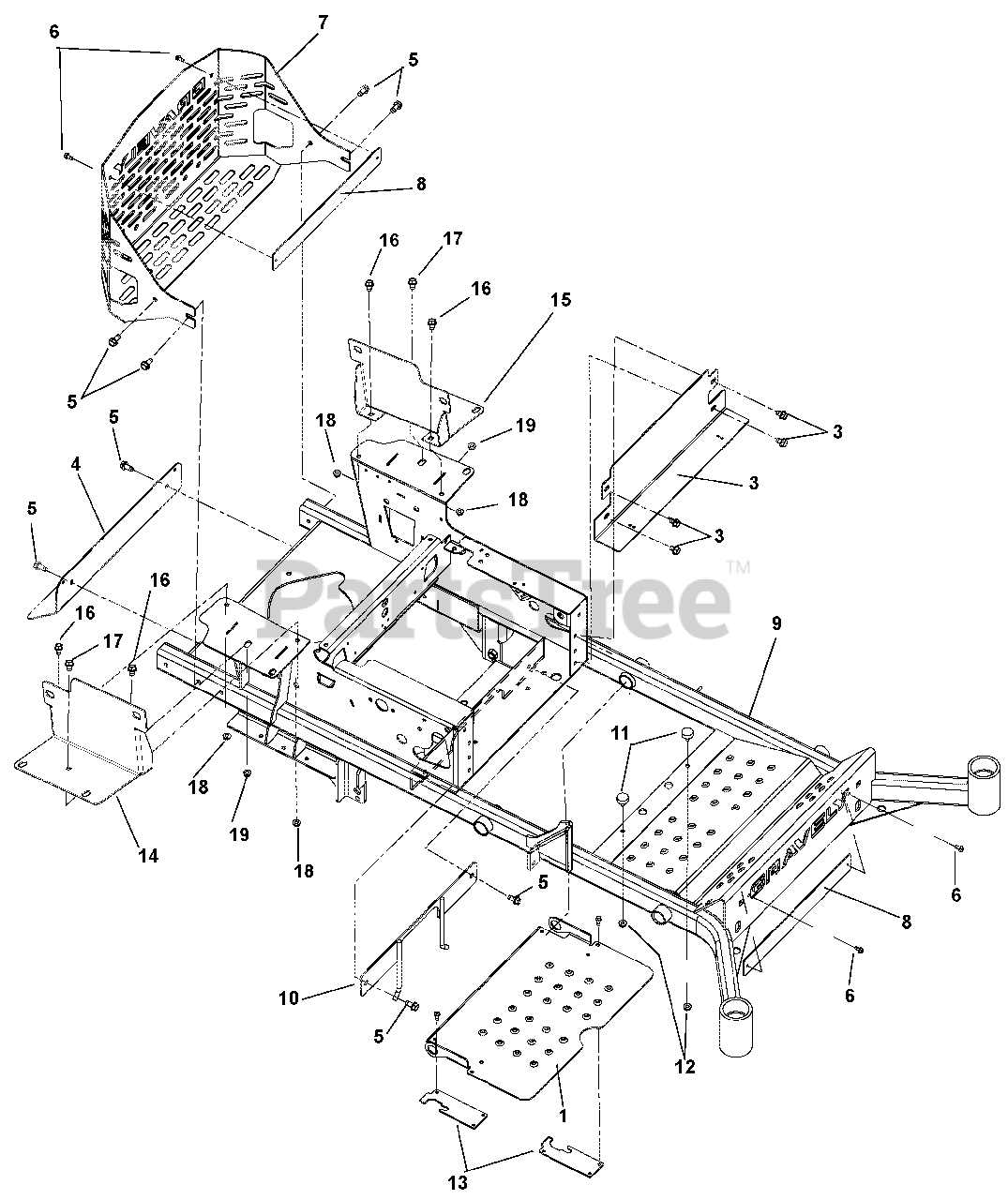

Frame (S/N 022000 - and up) Parts Diagram

  • Title

1

Gravely 04243851

Foot Plate

$

$

Not available

2

Gravely 04243953

Kick Plate

$60.99

$

Usually ships in 4-12 days

0

3

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400126)

$1.99

$

In Stock, Qty 13

0

4

Gravely 03948151

Muffler Heat Shield

$73.99

$

In Stock, only 1 left!

0

5

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 03995253

Pro-Turn 100 Bumper

$186.99

$

Usually ships in 4-12 days

0

8

Gravely 03995751

Bumper Plate

$16.99

$

Usually ships in 4-12 days

0

9

Gravely 04517253

Frame, Pro-Turn 100 100 48"

$

$

Not available

10

Gravely 04053651

PTO Belt Finger Weldment

$29.99

$

Usually ships in 4-12 days

0

11

Gravely 07533600

Bumper, Rubber

$12.99

$

In Stock, only 2 left!

0

12

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 04315751

Pro-Turn 100CE Foot Plate Finger Cover

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 04517453

Bracket, Tank Mount Right Hand

$

$

Not available

15

Gravely 04517553

Bracket, Tank Mount Left Hand

$

$

Not available

16

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06545500

Nut, Nyloc Flange .38-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06545400

Nut, Nyloc Flange .31-18
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0
