991301 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 000101 - 000500) Motors and Wheels Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

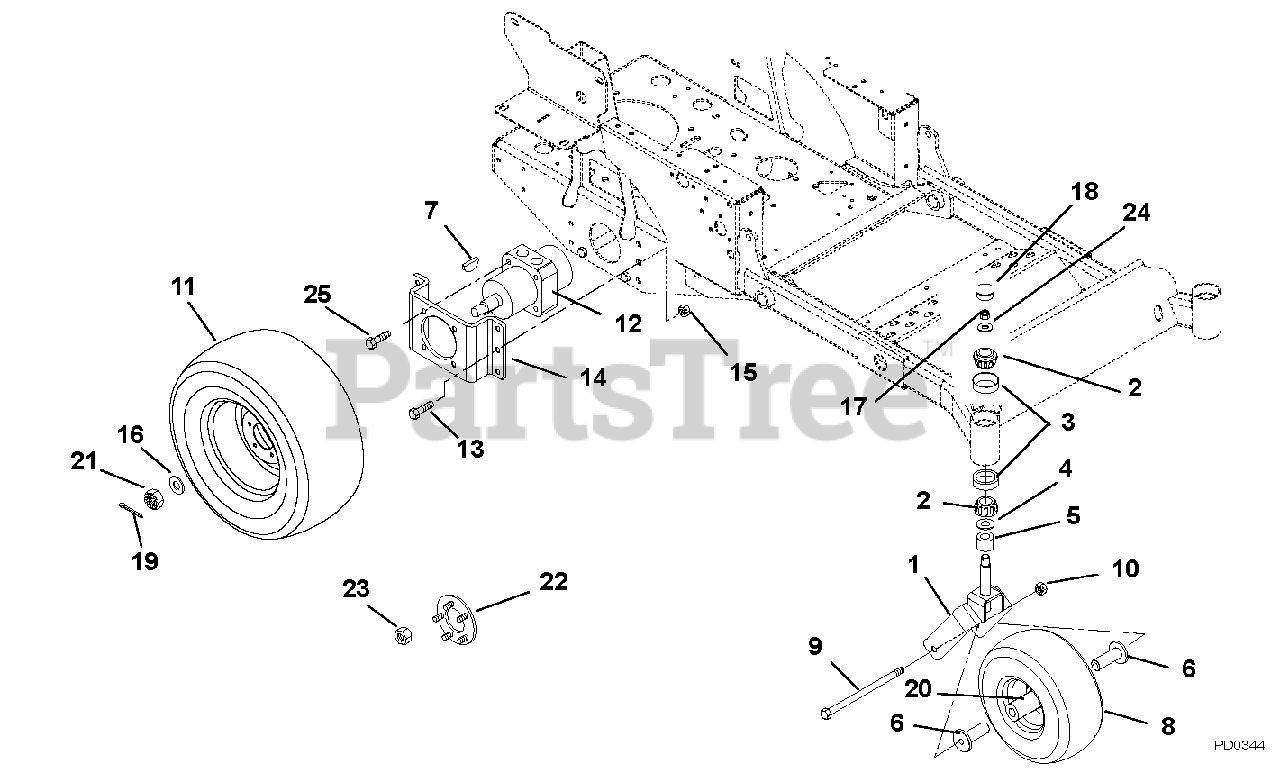

Motors and Wheels Parts Diagram

  • Title

1

Gravely 00490253

Weldment, Front Fork

$197.99

$

Usually ships in 4-12 days

0

2

Gravely 05406900

Bearing, Cone with Grease, 1.0 x .58

$20.99

$

In Stock, Qty 20+

0

3

Gravely 05407000

Bearing, Cup 1.980 x .420

$18.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

Bearing Seal 1.5 x 2 x .18

$10.99

$

In Stock, Qty 20+

0

5

Gravely 00531500

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$8.49

$

In Stock, Qty 18

0

6

Gravely 00675300

Spacer, Wheel

$9.49

$

In Stock, Qty 20+

0

7

Gravely 06608700

Key, Woodruff .31 x 1.00 (Included with Item 12)

Note: (Included with Item 12)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07100835

Tire/Wheel Assembly, 13 x 5.00-6
(Superseded to 07101111)

$131.99

$

In Stock, Qty 20+

0

Gravely 07100219

Tire, 13 x 5.00-6
(Superseded to 07101609)

$68.99

$

In Stock, only 2 left!

0

9

Gravely 05978200

Bolt, Hex .50-13 x 7.50 Grade 5
(Superseded to 05902023)

$8.49

$

In Stock, only 4 left!

0

10

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 07100216

Tire/Wheel Assembly, 21 x 7.00-10

$

$

Not available

Gravely 07100217

Tire, 21 x 7.00-10

$157.99

$

In Stock, only 2 left!

0

12

Gravely 04915500

Motor, Hydraulic Wheel (page 18)
(Superseded to 05015500)

Note: (page 18)

$959.99

$

Usually ships in 4-12 days

0

13

Gravely 05948700

2Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 09296600

Bracket, Wheel Motor

$63.99

$

Usually ships in 4-12 days

0

15

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06441500

Washer, Flat Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

17

Gravely 06536900

Nut, Center Lock Jam .75-16

$6.49

$

In Stock, Qty 11

0

18

Gravely 00456800

Cap, Dust

$18.99

$

In Stock, Qty 9

0

19

Gravely 06713400

Pin-Cotter .09 x 1.25 Extended Prong Square Cut

$0.99

$

Usually ships in 4-12 days

0

20

Gravely 05435700

Bearing, 25MM I.D. x 52MM OD x 15MM (Included with item 8)

Note: (Included with item 8)

$25.99

$

In Stock, Qty 20+

0

21

Gravely 06528300

Nut, Hex .75-20

$

$

Not available

22

Gravely 07100013

Assembly, Service Hub with Studs
(Superseded to 07100028)

$87.99

$

In Stock, Qty 7

0

23

Gravely 06511400

Wheel Nut .437-20

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 06439000

Washer, Flat, Steel .812 x 1.250 x .062
(Superseded to 06401140)

$1.99

$

In Stock, Qty 17

0

25

Gravely 05900013

Bolt, Hex .38-16 x 1.00 Grade 8 Epoxy 30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0
