991301 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 000101 - 000500) Steering Controls Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

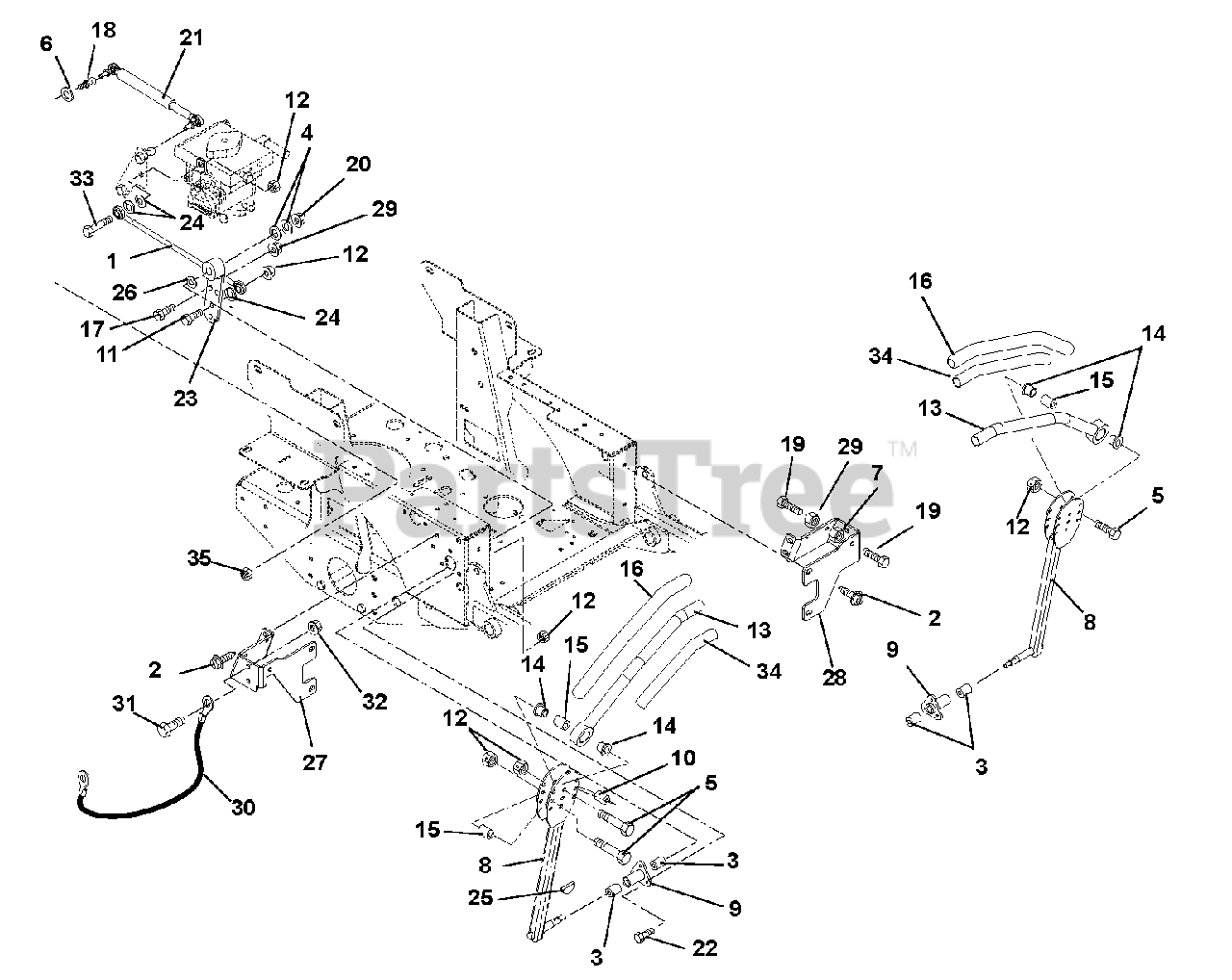

Steering Controls Parts Diagram

  • Title

1

Gravely 09285300

Assembly, Steering Rod

$146.99

$

In Stock, only 2 left!

0

2

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 05436800

Bushing .625 x .75 x .50

$10.99

$

In Stock, only 2 left!

0

4

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

6

Gravely 06437200

Washer, Flat Steel .344 x .065 YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 09285751

Control Arm

$255.99

$

Usually ships in 4-12 days

0

9

Gravely 09294600

Housing, Bushing

$35.99

$

In Stock, only 1 left!

0

10

Gravely 05500932

Bushing, Eccentric .31 x .75 x .97

$2.49

$

In Stock, Qty 20+

0

11

Gravely 05947500

Bolt, Hex .31-18 x 1.25
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

12

Gravely 06545400

Nut, Nyloc Flange .375-16
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 09235500

Handle Weldment Left-Hand

$105.99

$

In Stock, Qty 5

0

Gravely 09235600

Handle Weldment Right-Hand

$94.99

$

In Stock, only 2 left!

0

14

Gravely 05525200

Bushing, Flange Nylon .762 x 1.48 x .44
(Superseded to 05501517)

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 09235400

Spacer

$21.99

$

Usually ships in 4-12 days

0

16

Gravely 03929100

Grip, Handlebar

$16.99

$

In Stock, only 1 left!

0

17

Gravely 05974000

Bolt, Hex .375-16 x 1.75
(Superseded to 05901612)

$3.49

$

In Stock, only 1 left!

0

18

Gravely 04091700

Stud, Ball

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 05958000

Bolt, Hex .38-16 x 1.25
(Superseded to 05901724)

$1.99

$

In Stock, Qty 16

0

20

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 03914100

Damper
(Superseded to 30151500)

$33.99

$

In Stock, only 2 left!

0

22

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

23

Gravely 00163700

Weldment, Pivot Arm

$30.99

$

Usually ships in 4-12 days

0

24

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06608400

Key, Woodruff .13 x .63

$2.99

$

In Stock, only 3 left!

0

26

Gravely 03704900

Wave Washer

$2.49

$

In Stock, only 2 left!

0

27

Gravely 09287353

Stop, Steering-Right Hand

$65.99

$

Usually ships in 4-12 days

0

28

Gravely 09287453

Stop, Steering-Left Hand

$42.99

$

Usually ships in 4-12 days

0

29

Gravely 06537200

Nut, Locking Jam Center .375-16
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06927100

Cable, Hood

$15.99

$

In Stock, only 2 left!

0

31

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

32

Gravely 06500012

Nut, Nyloc Flange .25-20
(Superseded to 06500813)

$1.99

$

Usually ships in 4-12 days

0

33

Gravely 05952400

Bolt, Hex .31-18 x 1.50
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

34

Gravely 03988300

Tube, .88ID x 1.00OD x 10.75

$15.99

$

In Stock, only 2 left!

0

35

Gravely 06543100

Nut, Top Lock .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
