991301 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 003000 - 019999) Fuel Tanks And Hoses Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

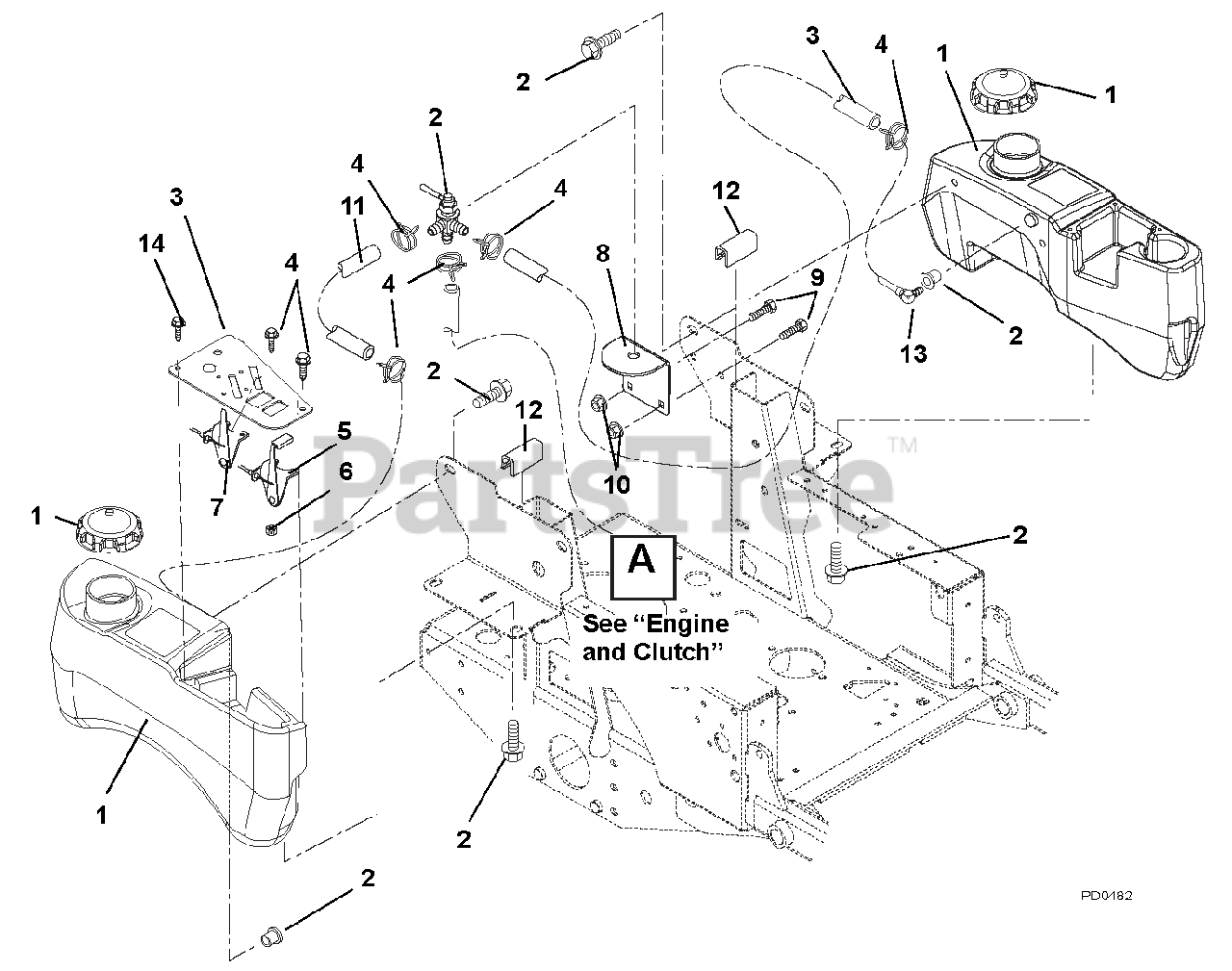

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 03973100

TANK,RH FUEL,HD

Note: (991301 S/N 101 - 2499)

$

$

Not available

Gravely 04244900

TANK, RH SMALL GRAVELY FUEL
(Superseded to 04340400)

Note: (991301 S/N 2500 and up, 991302 S/N 101 and up)

$

$

Not available

9

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 07000018

BOLT, SEMS .31-18 X .62

Note: (S/N 101 - 2499)

$4.99

$

In Stock, Qty 20+

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

4

Gravely 03278800

CLAMP, FUEL LINE

$1.99

$

In Stock, Qty 20+

0

1

Gravely 03973200

TANK,LH FUEL,HD

Note: (991301 S/N 101 - 2499)

$337.99

$

In Stock, only 1 left!

0

Gravely 04245000

TANK, LH SMALL GRAVELY FUEL
(Superseded to 04340500)

Note: (991301 S/N 2500 and up, 991302 S/N 101 and up)

$468.99

$

Usually ships in 4-12 days

0

2

Gravely 09258200

VALVE, FUEL

$51.99

$

In Stock, Qty 8

0

1

Gravely 03859100

CAP, FUEL

Note: (991301 S/N 101 - 2499)

$30.99

$

In Stock, Qty 13

0

Gravely 04237300

CAP,3.50" VENT-IN RATCHET FUEL
(Superseded to 09190300)

Note: (991301 S/N 2500 and up, 991302 S/N 101 and up)

$36.99

$

In Stock, Qty 10

0

2

Gravely 00387300

GROMMET, DAPCO VITON #12240

Note: (Orange color will not replace black color)

$10.99

$

In Stock, Qty 20+

0

3

Gravely 04041751

PANEL - CONTROL

$17.99

$

Usually ships in 4-12 days

0

4

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06900002

CABLE, THROTTLE-CHOKE

$55.99

$

In Stock, only 4 left!

0

6

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06900402

CABLE, CHOKE

$36.99

$

Usually ships in 4-12 days

0

8

Gravely 00361951

BRKT, FUEL VALVE MNTG

$7.99

$

Usually ships in 4-12 days

0

10

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.99

$

In Stock, Qty 20+

0

12

Gravely 00918200

STRIP, COWL

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 03900400

ASS'Y, SMALL TANK FUEL PICK-UP
(Superseded to 04320900)

$43.99

$

In Stock, Qty 14

0

14

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$4.99

$

In Stock, Qty 11

0
