991301 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 020000 & Above) EPA Vent Lines Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

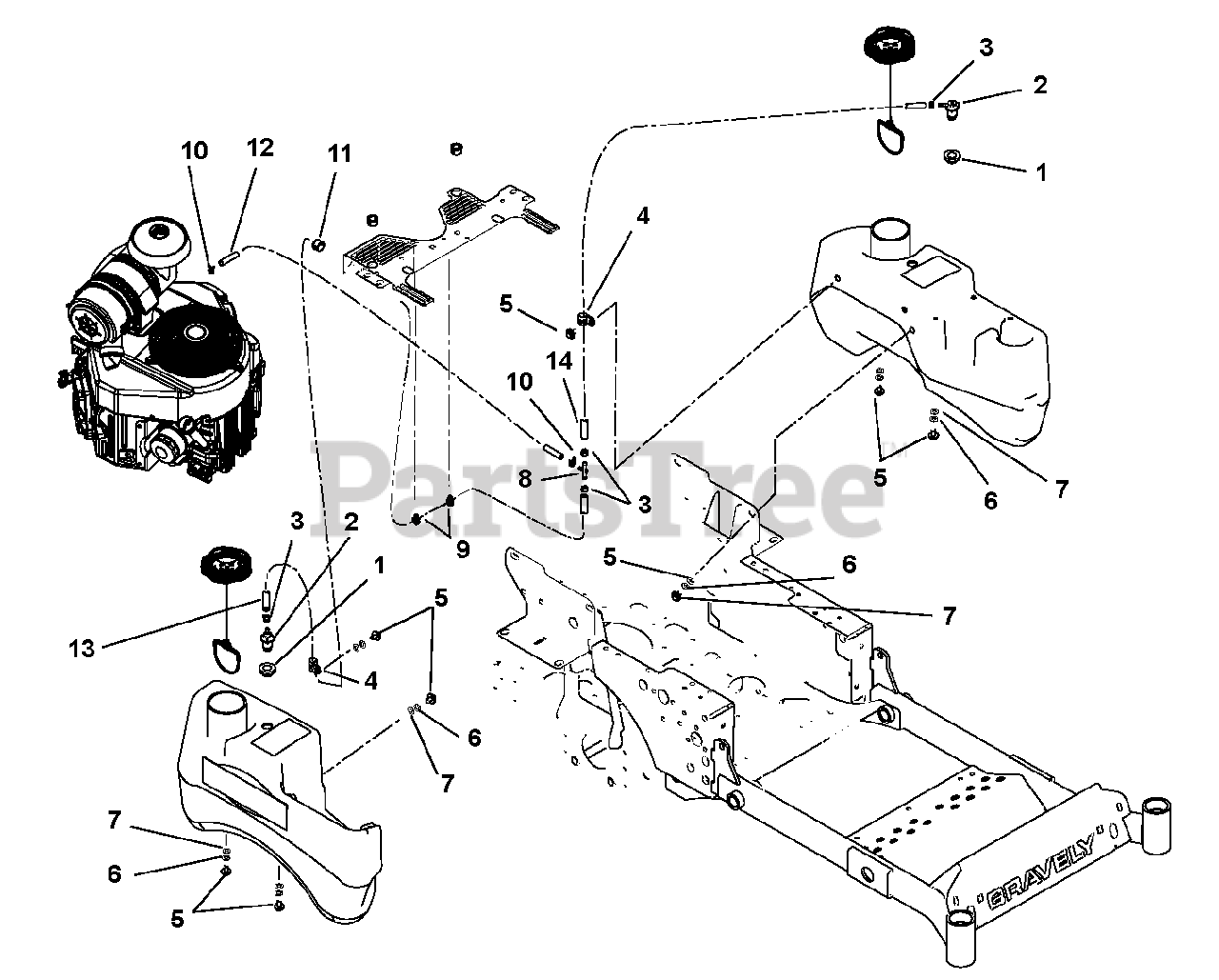

EPA Vent Lines Parts Diagram

  • Title

1

Gravely 04082700

Grommet

$3.99

$

In Stock, Qty 20+

0

2

Gravely 04068910

Valve
(Superseded to 05185600)

$13.99

$

In Stock, only 2 left!

0

3

Gravely 03278800

Hose, Clamp

$1.49

$

In Stock, Qty 7

0

4

Gravely 06908200

Clamp

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 05947800

Bolt, .31-18 x .62
(Superseded to 05901801)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

8

Gravely 04306900

Fitting, Tee 1/4 x 3/8

$21.99

$

Usually ships in 4-12 days

0

9

Gravely 00367900

Clip, Routing

$1.49

$

In Stock, only 1 left!

0

10

Gravely 04097700

Clamp, Spring .188

$1.49

$

Usually ships in 4-12 days

0

11

Gravely 07500126

Bushing, Snap

$3.99

$

In Stock, only 2 left!

0

12

Gravely 03375900

Hose, Fuel

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 03278100

Hose, Fuel

$0.99

$

In Stock, Qty 20+

0

14

Gravely 03278100

Hose, Fuel

$0.99

$

In Stock, Qty 20+

0
