991301 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 020000 & Above) Hydro-Gear Hydrostatic Pump Right Side Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

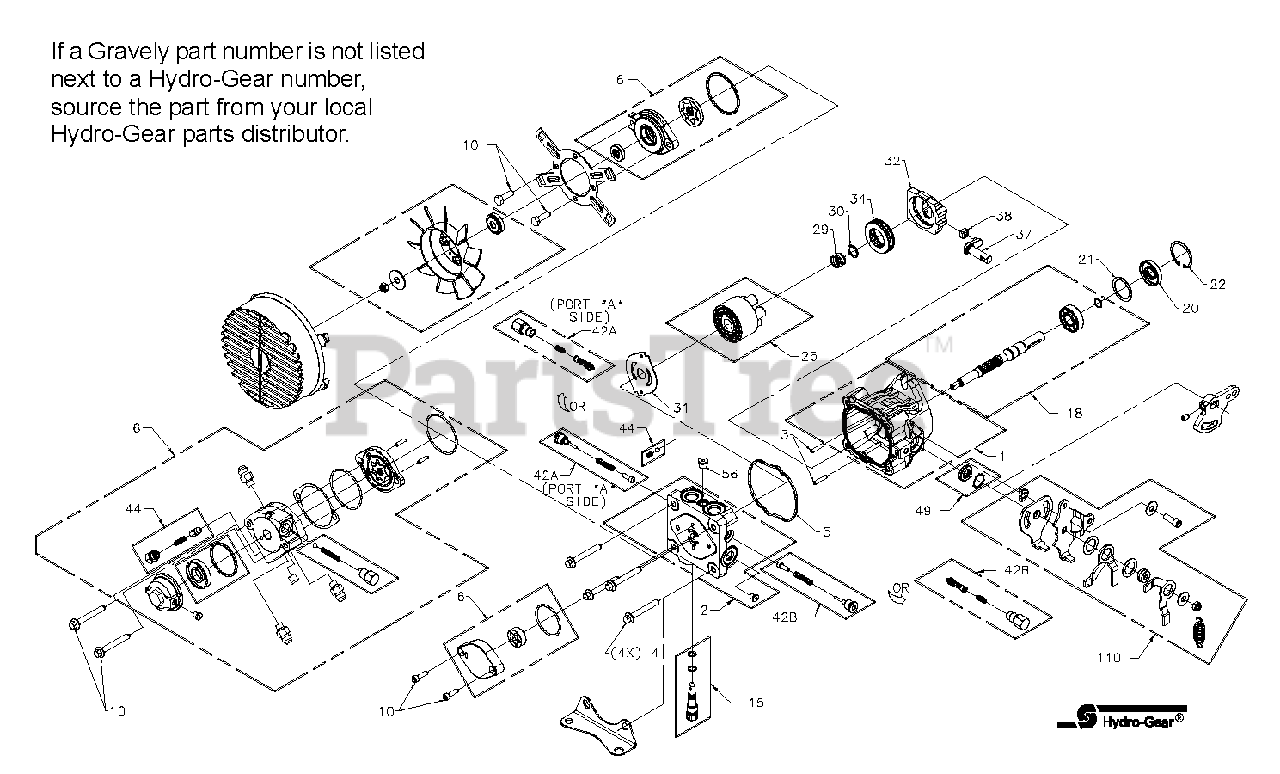

Hydro-Gear Hydrostatic Pump Right Side Parts Diagram

  • Title

1

Gravely 21543929

Kit, Housing

$

$

Not available

2

Gravely 21543913

Kit, End Cap w/Poppets

$

$

Not available

3

Gravely 21543750

Straight Headless Pin

$

$

Not available

4

Gravely 21543775

Hex, Flange Bolt M8-1.25 x 60mm

$

$

Not available

5

Housing O-Ring

Housing O-Ring

$

$

Not available

6

Gravely 21543912

Kit, Chg Pump

$255.99

$

Usually ships in 4-12 days

0

10

Gravely 21543994

Cap Screw 5/16-18

$

$

Not available

15

Gravely 21543979

Kit, Bypass

$29.99

$

Usually ships in 4-12 days

0

18

Gravely 21543911

Kit, Pump Shaft (15mm Straight Keyed, Thru)

Note: (15mm Straight Keyed, Thru)

$216.99

$

Usually ships in 4-12 days

0

20

Gravely 21543816

Lip Seal 17 x 40 x 7 PTC

$15.99

$

Usually ships in 4-12 days

0

21

Gravely 21543773

Spacer

$6.49

$

In Stock, only 2 left!

0

22

Gravely 21543741

Retaining Ring

$7.49

$

Usually ships in 4-12 days

0

25

Gravely 21543889

Cylinder Block Kit

$103.99

$

Usually ships in 4-12 days

0

29

Gravely 08621500

Block Spring

$1.99

$

In Stock, Qty 6

0

30

Gravely 08609400

Block Thrust Washer

$1.99

$

In Stock, only 1 left!

0

31

Gravely 21543838

Valve Plate

$37.99

$

Usually ships in 4-12 days

0

32

Gravely 08609000

Swashplate

$

$

Not available

34

Gravely 08609100

Ball Thrust Bearing

$19.99

$

Usually ships in 4-12 days

0

37

Gravely 08610800

Arm, Trunnion, Tapered Square

$58.99

$

Usually ships in 4-12 days

0

38

Gravely 08610700

Slot Guide

$

$

Not available

42

Gravely 21543923

Kit, Shock Valve (200 Bar .031 Orifice)

Note: (200 Bar .031 Orifice)

$

$

Not available

44

Gravely 21543891

Kit, Charge Relief Valve

$

$

Not available

49

Gravely 58803300

Trunnion Seal - Retainer Kit

$10.99

$

Usually ships in 4-12 days

0

56

Gravely 21543993

Plug, Straight Thread

$

$

Not available

110

Gravely 21543934

Kit, Return

$92.99

$

Usually ships in 4-12 days

0

NS

Gravely 59203600

Overhaul Seal Kit

$79.99

$

Usually ships in 4-12 days

0
