991302 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 000101 - 000500) Belts, Spindles, Idlers and Blade Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

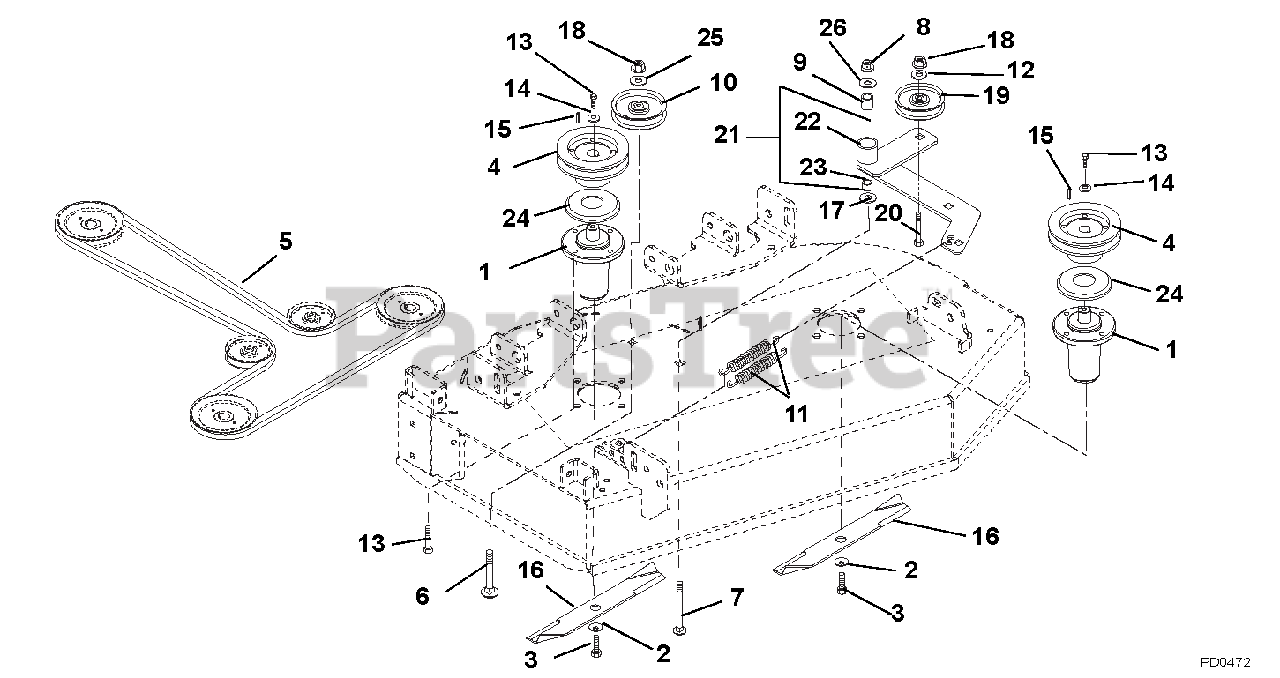

Belts, Spindles, Idlers and Blade Parts Diagram

  • Title

1

Gravely 59201000

ASM,MAINT FREE SPINDLE
(Superseded to 59114000)

$273.99

$

In Stock, Qty 14

0

2

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

3

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 00191800

SHEAVE, 5.00 SPINDLE (1.000ID)

Note: (1.00 I.D.)

$83.99

$

In Stock, only 4 left!

0

5

Gravely 07200011

V-BELT, HB-WRAPPED

$100.99

$

In Stock, Qty 9

0

6

Gravely 06228100

BLT-RDHDSQNK .38-16X3.00 G5YZ
(Superseded to 06200418)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 06200003

BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$6.49

$

In Stock, Qty 10

0

8

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

10

Gravely 07327800

IDLER-FLAT 4.00X.38 (2.00 W)

Note: (2.00 W)

$91.99

$

In Stock, Qty 18

0

11

Gravely 08300513

SPRING, EXTENSION 1.0 X 6.65

$35.99

$

In Stock, Qty 20+

0

12

Gravely 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 13

0

13

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

16

Gravely 08866800

BLD,MULCHING 50" MWR

$33.99

$

In Stock, Qty 13

0

17

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 07300004

IDLER, FLAT 4.00 X .38 (1.OOW)

Note: (1.00 W)

$54.99

$

In Stock, only 3 left!

0

20

Gravely 06224300

BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, Qty 10

0

21

Gravely 09296800

ASSM, IDLER ARM PIVOT

Note: (Contains Items 22 & 23)

$174.99

$

Usually ships in 4-12 days

0

22

Gravely 09296751

WMT, IDLER PIVOT ARM

$144.99

$

Usually ships in 4-12 days

0

23

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

24

Gravely 09238200

SLINGER, DUST

$17.99

$

In Stock, Qty 13

0

25

Gravely 00440700

SEAL, IDLER BEARING

$79.99

$

In Stock, Qty 7

0

26

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0
