991302 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 000101 - 000500) Brakes Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

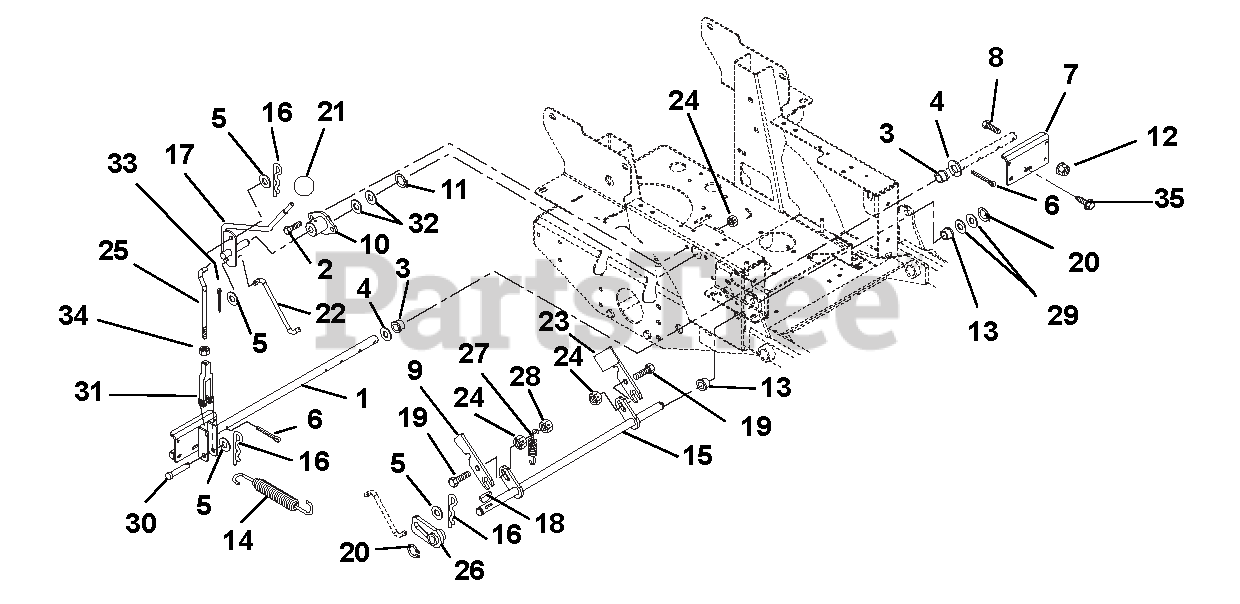

Brakes Parts Diagram

  • Title

1

Gravely 09298800

WMT, BRAKE SHAFT

$165.99

$

Usually ships in 4-12 days

0

2

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.99

$

In Stock, Qty 20+

0

4

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 06707100

PIN-CTR .12X1.00 EXTPRSQCT YZ

$1.49

$

In Stock, Qty 10

0

7

Gravely 00356851

WMT, PADDLE BRAKE

$117.99

$

Usually ships in 4-12 days

0

8

Gravely 05952500

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 09267700

SLIDE, INTERLOCKING BRAKE

$27.99

$

Usually ships in 4-12 days

0

10

Gravely 05534700

BUSHING, FLANGED
(Superseded to 05534100)

$50.99

$

In Stock, only 4 left!

0

11

Gravely 05709200

RG-RTNG-EXT .625X.050

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$3.49

$

In Stock, Qty 20+

0

14

Gravely 08334900

SPRING - ENGINE - TRANS.

$42.99

$

In Stock, only 4 left!

0

15

Gravely 09284000

WMT, MECHANICAL BRAKE

$111.99

$

Usually ships in 4-12 days

0

16

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00277400

WMT, BRAKE ACTUATING

$91.99

$

Usually ships in 4-12 days

0

18

Gravely 06608400

KEY-WDRF .13X.63 HRD#5

$3.49

$

In Stock, only 1 left!

0

19

Gravely 06219200

BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$5.49

$

Usually ships in 4-12 days

0

20

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$3.49

$

In Stock, Qty 14

0

21

Gravely 07505200

KNOB-STEERING LOCK

$23.99

$

In Stock, only 1 left!

0

22

Gravely 09268400

LINKAGE, BRAKE ACTUATING

$31.99

$

Usually ships in 4-12 days

0

23

Gravely 09275900

INTERLOCK, SAFETY SWITCH

$18.99

$

Usually ships in 4-12 days

0

24

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 09299100

LINKAGE, BRAKE COMPACT-Z

$41.99

$

Usually ships in 4-12 days

0

26

Gravely 09268100

WMT, PARKING BRAKE HUB

$203.99

$

Usually ships in 4-12 days

0

27

Gravely 08328700

SG-TENS .061 X .50 X 3.0 WLD 4

$21.99

$

In Stock, only 2 left!

0

28

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

29

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 06813300

PIN-CLEV .370X1.75

$3.49

$

Usually ships in 4-12 days

0

31

Gravely 07000016

CLEVIS, .38-24 ADJ. SWIVEL

$22.99

$

Usually ships in 4-12 days

0

32

Gravely 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$3.49

$

In Stock, only 1 left!

0

33

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.99

$

In Stock, only 3 left!

0

35

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$2.49

$

In Stock, Qty 12

0
