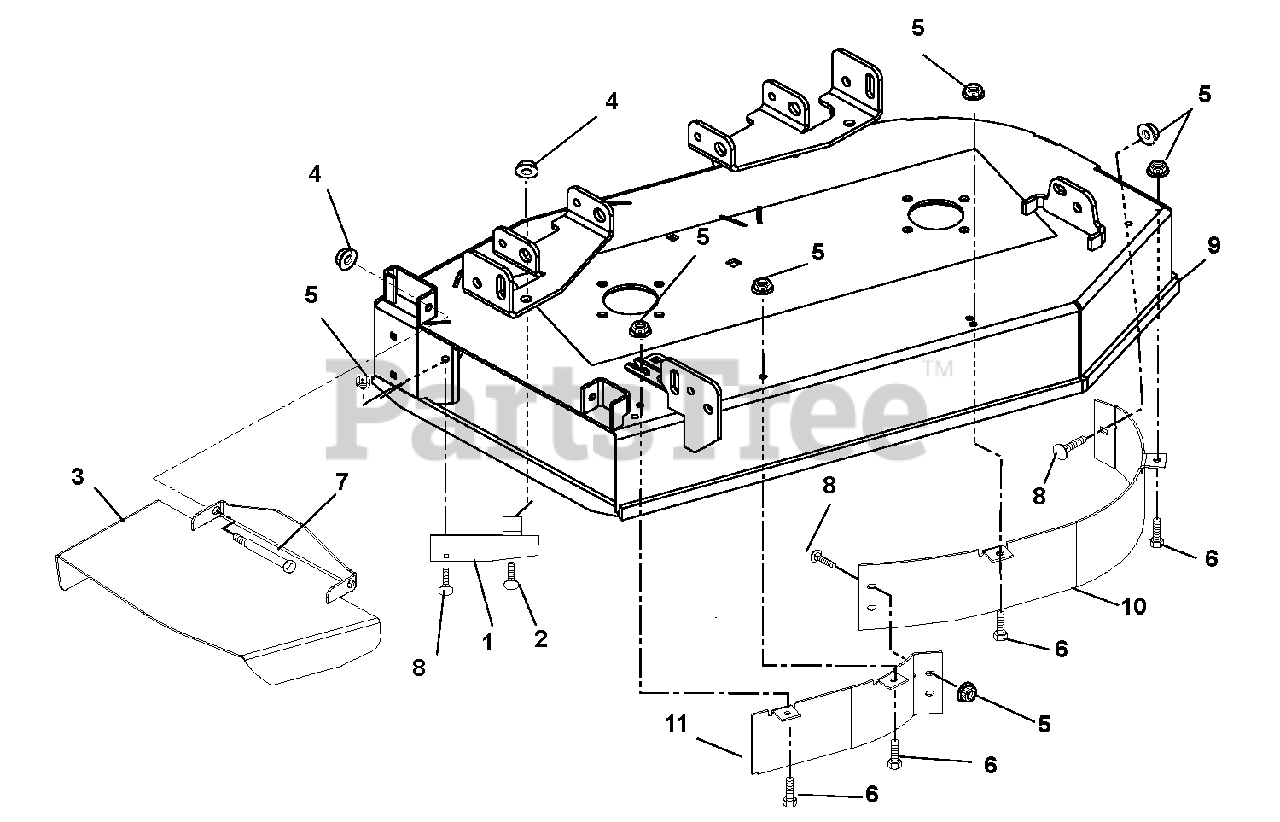

991302 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 000101 - 000500) Deck, Discharge Chute and Baffles 2 Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

Deck, Discharge Chute and Baffles 2 Parts Diagram

  • Title

1

Gravely 00174251

Baffle, Deflector

$32.99

$

Usually ships in 4-12 days

0

2

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 04365353

Chute, Discharge

$

$

Not available

4

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06545400

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 05947000

Bolt, Shoulder .38-16 x .50 Socket Head
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07056500

Bolt, Shoulder .38-16 x .50 Socket Head
(Superseded to 07002030)

$6.49

$

In Stock, only 2 left!

0

8

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 00673153

Weldment, 34" Side Discharge Deck

$791.99

$

Usually ships in 4-12 days

0

10

Gravely 09297051

Baffle, 34" Front Left Hand

$96.99

$

Usually ships in 4-12 days

0

11

Gravely 09297151

Baffle, 34" Front Right Hand

$73.99

$

Usually ships in 4-12 days

0
