991302 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 000101 - 000500) Deck Lift Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

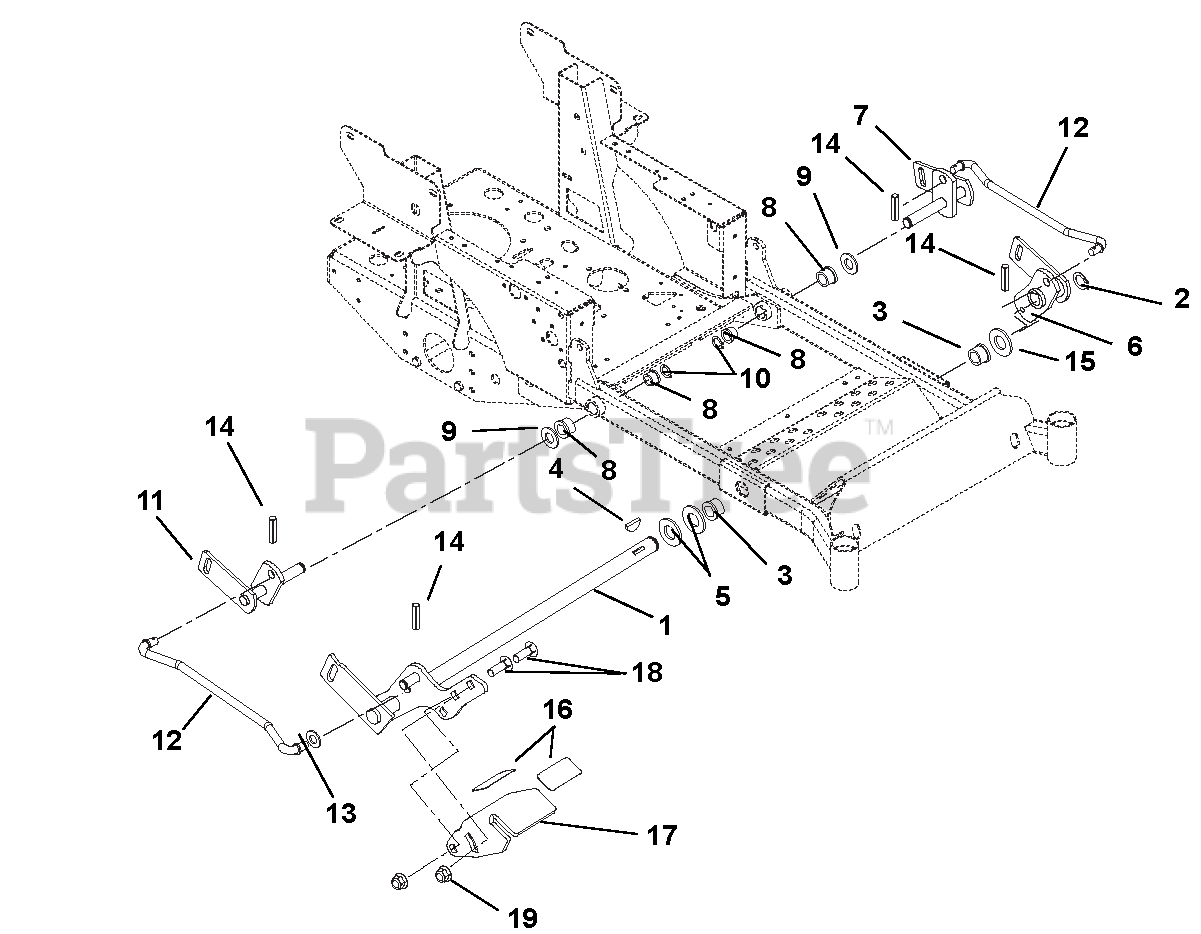

Deck Lift Parts Diagram

  • Title

1

Gravely 04288900

WMT,DECK LIFT,ADJ FOOT PEDAL

$130.99

$

Usually ships in 4-12 days

0

2

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$3.99

$

In Stock, only 2 left!

0

3

Gravely 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$12.99

$

In Stock, Qty 14

0

4

Gravely 06608900

KEY-WDRF .25X1.00 HRD #15

$4.99

$

In Stock, Qty 9

0

5

Gravely 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$5.99

$

In Stock, only 2 left!

0

6

Gravely 00441000

WMT, LH FRONT MOWER LIFT

$105.99

$

Usually ships in 4-12 days

0

7

Gravely 00481600

WMT, LH REAR LIFT ARM (100)

$70.99

$

Usually ships in 4-12 days

0

8

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.99

$

In Stock, Qty 20+

0

9

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.99

$

In Stock, only 1 left!

0

10

Gravely 05714600

RG-RTNG-EXT .689X.078

$3.49

$

In Stock, only 2 left!

0

11

Gravely 00481500

WMT, RH REAR LIFT ARM (100)

$89.99

$

In Stock, only 1 left!

0

12

Gravely 04063000

ROD-LIFT ASSIST 16.35"

$44.99

$

Usually ships in 4-12 days

0

13

Gravely 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$3.49

$

In Stock, only 1 left!

0

14

Gravely 05800001

PIN-ROLL .250X1.25 STNLESS STL

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$5.99

$

In Stock, Qty 8

0

16

Gravely 00270100

GRIP, PEDAL 1.50 X 3.00

$4.99

$

In Stock, only 2 left!

0

17

Gravely 04088651

ADJUSTABLE FOOT LIFT PEDAL-BLK

$60.99

$

Usually ships in 4-12 days

0

18

Gravely 06223100

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0
