991302 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 000101 - 000500) Engine and Clutch Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

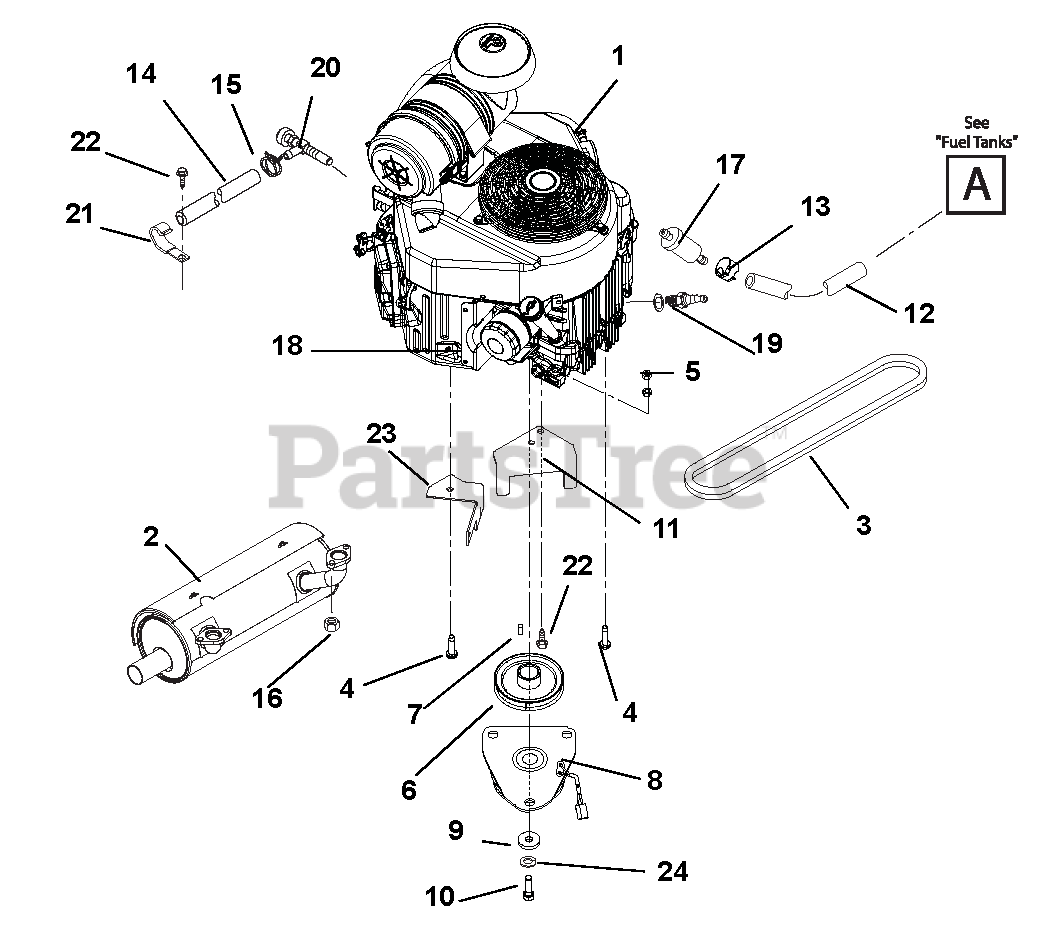

Engine and Clutch Parts Diagram

  • Title

1

Gravely 08200525

ENGINE, KAWASAKI FX481 (16HP)

$

$

Not available

2

Gravely 03971600

MUFFLER, KAWASAKI FX 16/20HP

$199.99

$

Usually ships in 4-12 days

0

3

Gravely 07200010

V-BELT, HA-RAW EDGE

$37.99

$

In Stock, Qty 20+

0

4

Gravely 05900125

BLT-HEX.38-16X1.25FTHG5 EP30YZ
(Superseded to 05901507)

$2.99

$

In Stock, Qty 19

0

5

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 07300119

SHEAVE-4.30X1.127X1.30 ENGINE

$70.99

$

In Stock, only 1 left!

0

7

Gravely 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 20+

0

8

Gravely 03789900

CLUTCH, OGURA GT1A-AR03

$370.99

$

In Stock, only 1 left!

0

9

Gravely 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

$7.49

$

In Stock, only 2 left!

0

10

Gravely 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

$6.49

$

In Stock, Qty 10

0

11

Gravely 03766851

ANCHOR - OGURA CLUTCH - HD

$38.99

$

In Stock, only 4 left!

0

12

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00172900

HOSE, 1/2 X 6.00

$9.99

$

Usually ships in 4-12 days

0

15

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 21410800

FILTER, FUEL - KOH CV20
(Superseded to 21541500)

$13.99

$

In Stock, Qty 20+

0

18

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

19

Gravely 21536100

PLUG, SPARK

$10.99

$

In Stock, Qty 20+

0

20

Gravely 00429000

DRAIN, 1/2" OIL

$40.99

$

In Stock, only 3 left!

0

21

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 03878451

GUARD - CZ CLUTCH WIRE

$15.99

$

Usually ships in 4-12 days

0

24

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0
