991302 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 000101 - 000500) EPA Vent Lines Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

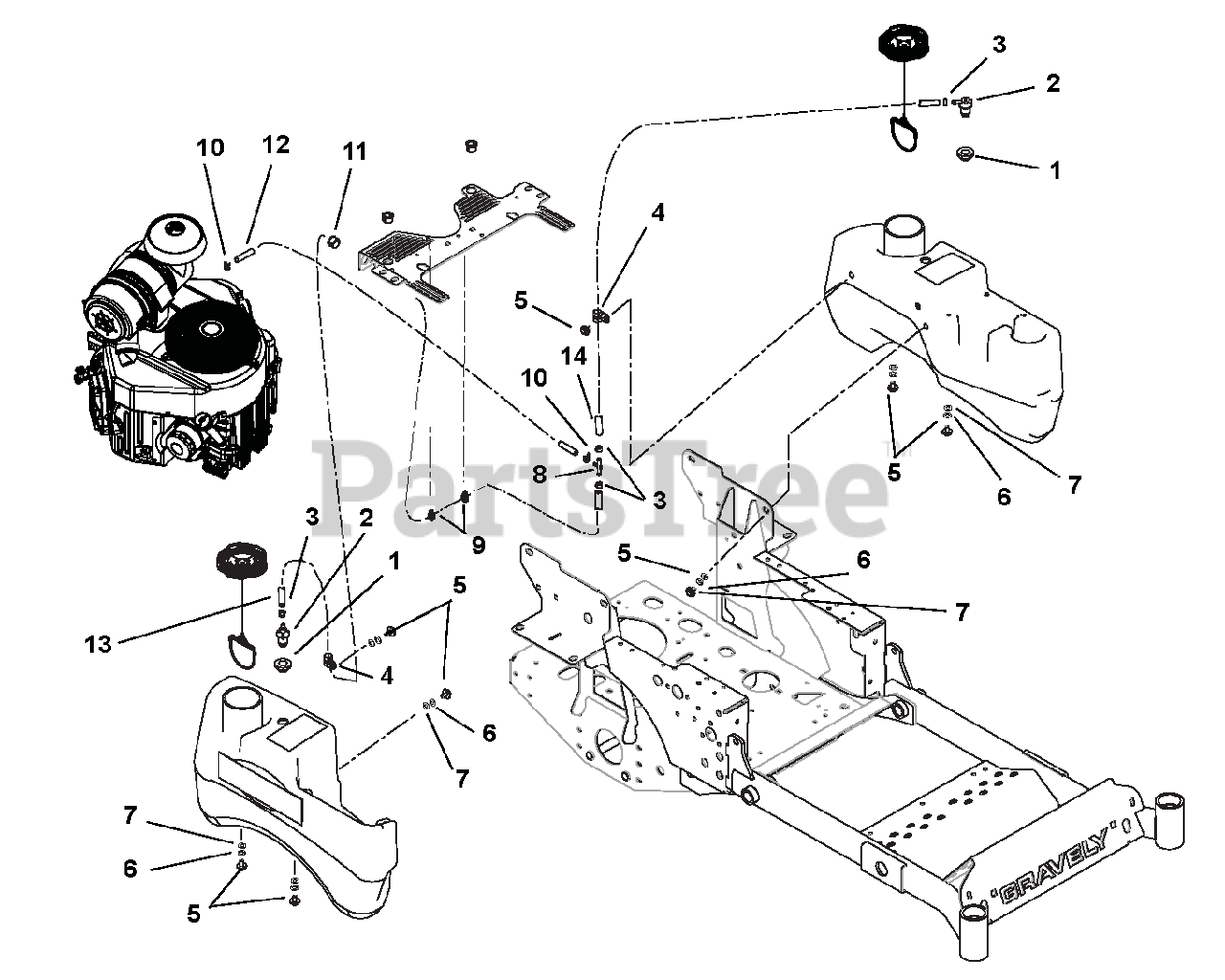

EPA Vent Lines Parts Diagram

  • Title

1

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

2

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$18.99

$

In Stock, only 3 left!

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06908200

CLAMP, CUSHIONED STEEL

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.99

$

In Stock, only 2 left!

0

6

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 04306900

TEE,1/4HS RUN X 3/16HS BRANCH

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

In Stock, Qty 5

0

11

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 1 left!

0

12

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

14

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0
