991302 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 000101 - 000500) Hydro Gear Hydrostatic Pump Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

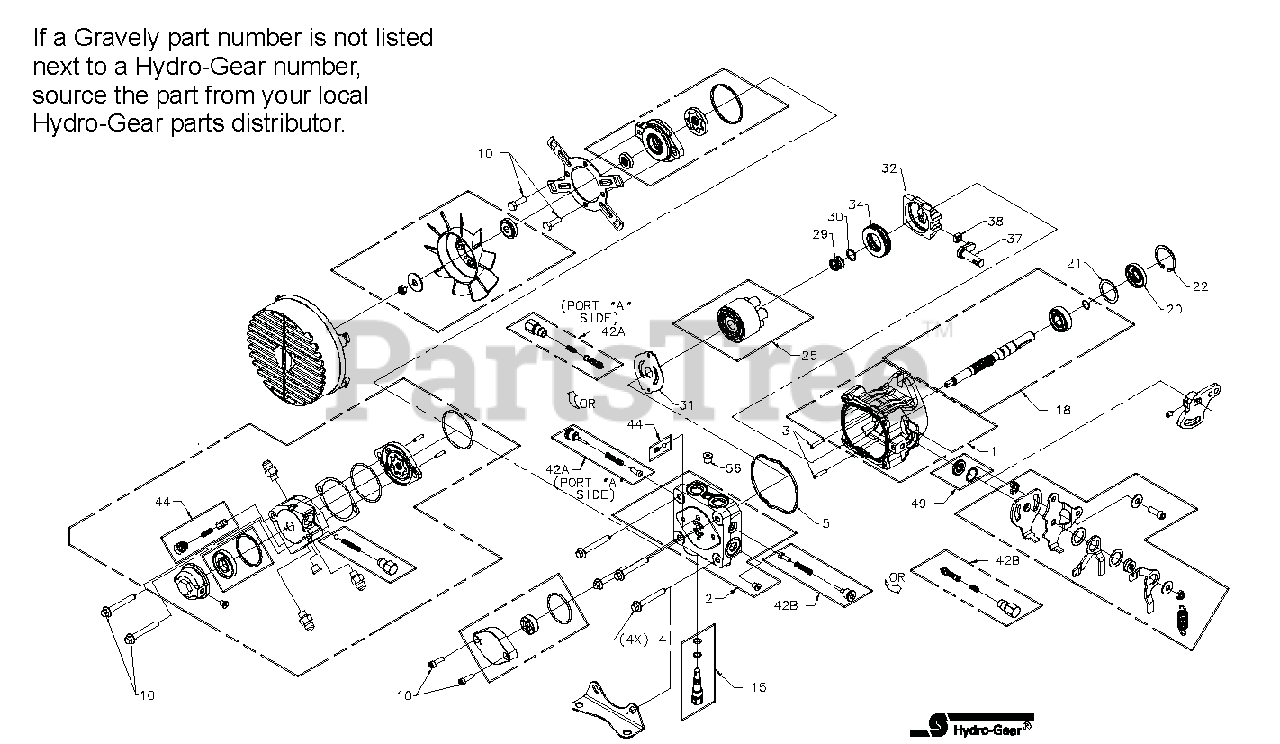

Hydro Gear Hydrostatic Pump Parts Diagram

  • Title

1

Gravely 21543899

KIT, HSG

$

$

Not available

2

Gravely 21543900

KIT, END CAP W/PPT & STD

$

$

Not available

3

Gravely 21543750

PIN, .219X1

$

$

Not available

4

Gravely 21543775

HFHCS M8X60

$

$

Not available

5

Gravely 21543978

KIT, CHG PUMP

$115.99

$

Usually ships in 4-12 days

0

10

Gravely 21543777

SCREW, CAP M6X1X25

$

$

Not available

15

Gravely 21543979

KIT, BYPASS VALVE

$29.99

$

Usually ships in 4-12 days

0

18

Gravely 21543902

KIT, PUMP SHAFT 15MM KEYW

$

$

Not available

20

Gravely 21543816

SEAL, LIP 17X40X7

$8.49

$

Usually ships in 4-12 days

0

21

Gravely 21543773

WASHER 1.23X1.56X.04

$3.49

$

In Stock, only 1 left!

0

22

Gravely 21543741

RING, RET 1.56 INT

$4.49

$

Usually ships in 4-12 days

0

25

Gravely 21543889

KIT, 10 CC BLOCK

$103.99

$

Usually ships in 4-12 days

0

29

Gravely 08621500

SPRING. BLOCK

$3.49

$

In Stock, Qty 5

0

30

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

$3.49

$

Usually ships in 4-12 days

0

31

Gravely 21543838

PLATE, VALVE

$38.99

$

Usually ships in 4-12 days

0

32

Gravely 08609000

SWASHPLATE. VARIABLE

$

$

Not available

34

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

$18.99

$

Usually ships in 4-12 days

0

37

Gravely 21543963

ARM, TRUNNION 10 CC

$

$

Not available

38

Gravely 08610700

GUIDE. SLOT

$

$

Not available

42

Gravely 21543923

KIT, SHOCK VALVE 200 BAR

$

$

Not available

44

Gravely 21543891

KIT, CHG RELIEF

$

$

Not available

49

Gravely 58803300

KIT, PUMP SEAL

$9.99

$

Usually ships in 4-12 days

0

56

Gravely 21543993

PLUG 7/16-20 (METAL)

Note: (Metal)

$

$

Not available

NS

Gravely 59203600

KIT, PUMP SEAL

$82.99

$

Usually ships in 4-12 days

0
