991302 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 000101 - 000500) Mounting Arms and Belt Guard Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

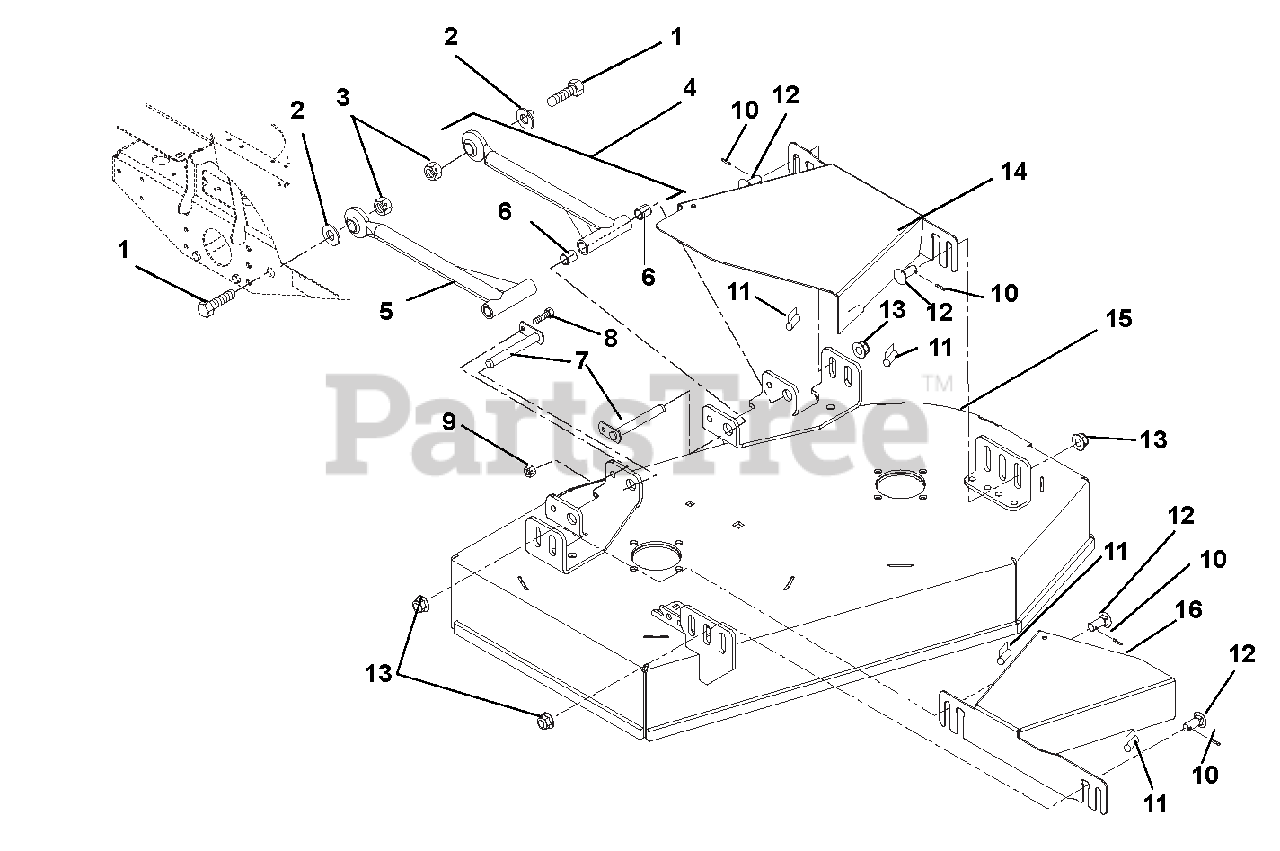

Mounting Arms and Belt Guard Parts Diagram

  • Title

1

Gravely 05900003

BLT-HEX .875-9X3.00 GR5 YZ

$7.49

$

Usually ships in 4-12 days

0

2

Gravely 05512600

BSHG-SLV .882X1.250X.531

$6.49

$

In Stock, Qty 12

0

3

Gravely 06539700

NUT-LK-CTR .875-9 YWZC

$6.49

$

In Stock, only 2 left!

0

4

Gravely 09282000

ASSY, MOWER MOUNTING

Note: (Includes Items 5 and 6)

$217.99

$

Usually ships in 4-12 days

0

5

Gravely 09282151

MOWER MTG ARM - BLACK

$145.99

$

Usually ships in 4-12 days

0

6

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

7

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 10

0

8

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05203400

DECAL,THROTTLE

$

$

Not available

11

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.49

$

In Stock, Qty 6

0

12

Gravely 06200206

BLT-RDHDSQNK .50-13X1.25 SPL

$

$

Not available

13

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 04184051

GUARD,34" BELT,CE - BLK

$

$

Not available

15

Gravely 04950653

WMT-34" MOWER DECK-REAR DISCH

$1014.99

$

Usually ships in 4-12 days

0

16

Gravely 04365951

WMT-BELT GUARD 34" RH (SD) -CE

$

$

Not available
