991302 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 000101 - 000500) Steering Controls Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

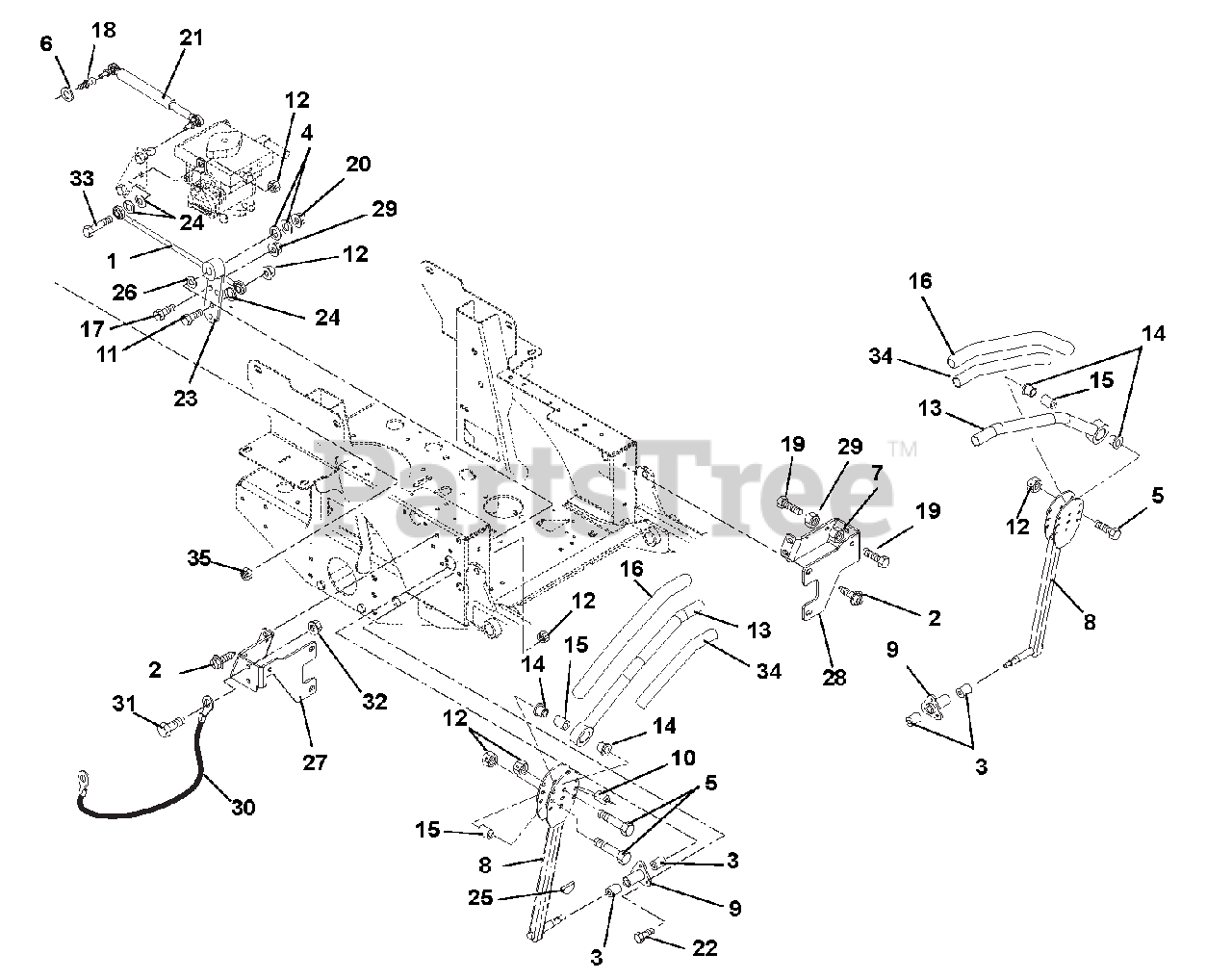

Steering Controls Parts Diagram

  • Title

1

Gravely 09285300

ASSY, STEERING ROD

$

$

Not available

2

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 05436800

BSHG .625X.750X.500

$10.99

$

Usually ships in 4-12 days

0

4

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.99

$

In Stock, Qty 9

0

6

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 09285751

CONTROL ARM - BLACK

$267.99

$

Usually ships in 4-12 days

0

9

Gravely 09294600

BUSHING, FLANGE

$36.99

$

Usually ships in 4-12 days

0

10

Gravely 05500932

BSHG, ECCENTRIC .328X.750X.970

$3.49

$

In Stock, Qty 20+

0

11

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$3.49

$

In Stock, Qty 12

0

12

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 09235500

HANDLE WLDMT LH

$111.99

$

In Stock, Qty 5

0

Gravely 09235600

WLDMT, RH HANDLE

$99.99

$

Usually ships in 4-12 days

0

14

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$3.49

$

In Stock, Qty 12

0

15

Gravely 09235400

SPACER .328 X .76 X 1.01

$21.99

$

Usually ships in 4-12 days

0

16

Gravely 03929100

GRIP, HANDLEBAR 1.00X1.38X11.3

$17.99

$

In Stock, only 3 left!

0

17

Gravely 05974000

BLT-HEX .375-16X1.750 FTD YWZC
(Superseded to 05901612)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 04091700

STUD-BALL

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 03914100

DAMPER, CONTROL
(Superseded to 30151500)

$34.99

$

In Stock, Qty 6

0

22

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 00163700

ARM, PIVOT

$32.99

$

Usually ships in 4-12 days

0

24

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06608400

KEY-WDRF .13X.63 HRD#5

$3.49

$

In Stock, only 1 left!

0

26

Gravely 03704900

WAVE WASHER .640X.875X.125FH

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 09287353

STOP, STEERING RH

$68.99

$

Usually ships in 4-12 days

0

28

Gravely 09287453

STOP, STEERING LH

$44.99

$

Usually ships in 4-12 days

0

29

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 06927100

CBL,HOOD

$15.99

$

In Stock, only 1 left!

0

31

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$2.49

$

In Stock, Qty 20+

0

33

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$2.49

$

In Stock, Qty 9

0

34

Gravely 03988300

TUBE, .88ID X 1.00OD X 10.25

$15.99

$

In Stock, only 2 left!

0

35

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0
