991303 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Side Discharge (SN: 000101 - 000999) Fuel Tanks Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Side Discharge

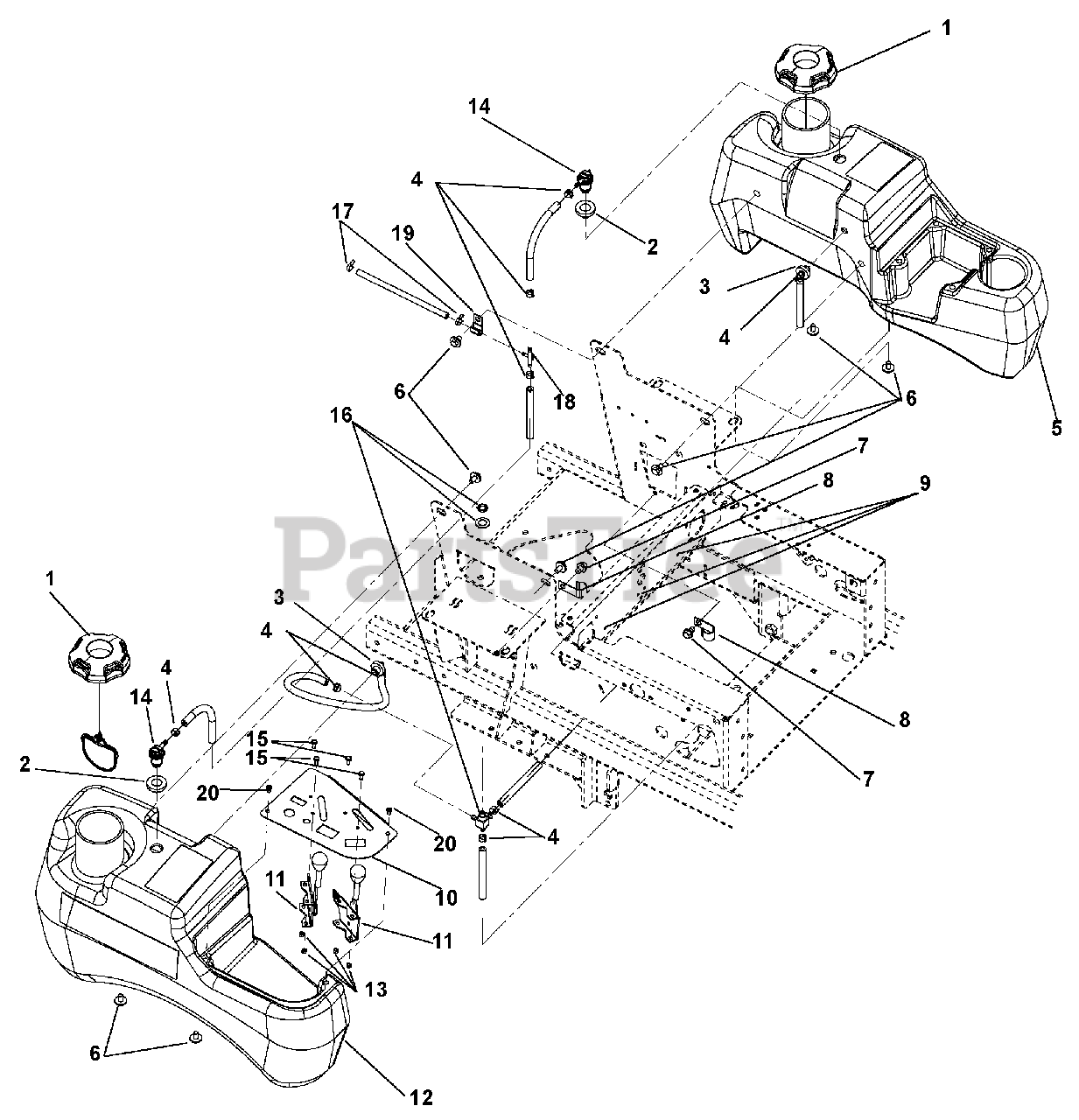

Fuel Tanks Parts Diagram

  • Title

1

Gravely 04237300

Cap, 3.50" Vent-in Ratchet Fuel
(Superseded to 09190300)

$35.99

$

In Stock, Qty 8

0

2

Gravely 04082700

Grommet, Remote Vent Nitrile

$3.99

$

In Stock, Qty 20+

0

3

Gravely 03900300

Assembly, Medium Tank Fuel Pick-up
(Superseded to 04320900)

$40.99

$

In Stock, Qty 20+

0

4

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

5

Gravely 04245400

Tank, LH Medium Gravely Fuel (991300 SN 002500 – 004999, 991303 SN 000101 – 004999)

Note: (991300 SN 002500 – 004999, 991303 SN 000101 – 004999)

$215.99

$

Usually ships in 4-12 days

0

Gravely 04340700

Tank, LH Medium Gravely Fuel (SN 5000 and up)

Note: (SN 5000 and up)

$277.99

$

Usually ships in 4-12 days

0

6

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 6

0

7

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400126)

$1.99

$

In Stock, Qty 18

0

8

Gravely 06916000

J-Clamp

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 07517300

Cable Tie

$

$

Not available

10

Gravely 04039151

PT100 Control Panel, Black

$31.99

$

Usually ships in 4-12 days

0

11

Gravely 06900417

Cable, PT100 Throttle Control

$74.99

$

In Stock, only 4 left!

0

12

Gravely 04245300

Tank, RH Medium Gravely Fuel (991300 SN 002500 – 004999, 991303 SN 000101 – 004999)

Note: (991300 SN 002500 – 004999, 991303 SN 000101 – 004999)

$208.99

$

Usually ships in 4-12 days

0

Gravely 04340600

Tank, RH Medium Gravely Fuel (SN 5000 and up)

Note: (SN 5000 and up)

$277.99

$

Usually ships in 4-12 days

0

13

Gravely 06536000

Nut, Locking, Nylon 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 04068910

Valve, Combination
(Superseded to 05185600)

$18.99

$

In Stock, Qty 12

0

15

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 09258200

Valve, Fuel

$48.99

$

In Stock, Qty 8

0

17

Gravely 04097700

Clamp, Hose, Spring .188

$1.99

$

Usually ships in 4-12 days

0

18

Gravely 04306900

Tee, 1/4HS Run x 3/16HS Branch

$22.99

$

Usually ships in 4-12 days

0

19

Gravely 06909400

J-Clamp

$3.99

$

In Stock, only 2 left!

0

20

Gravely 06100211

Screw, Machine 10-24 x .38 HWH Stainless

$3.49

$

In Stock, Qty 20+

0
