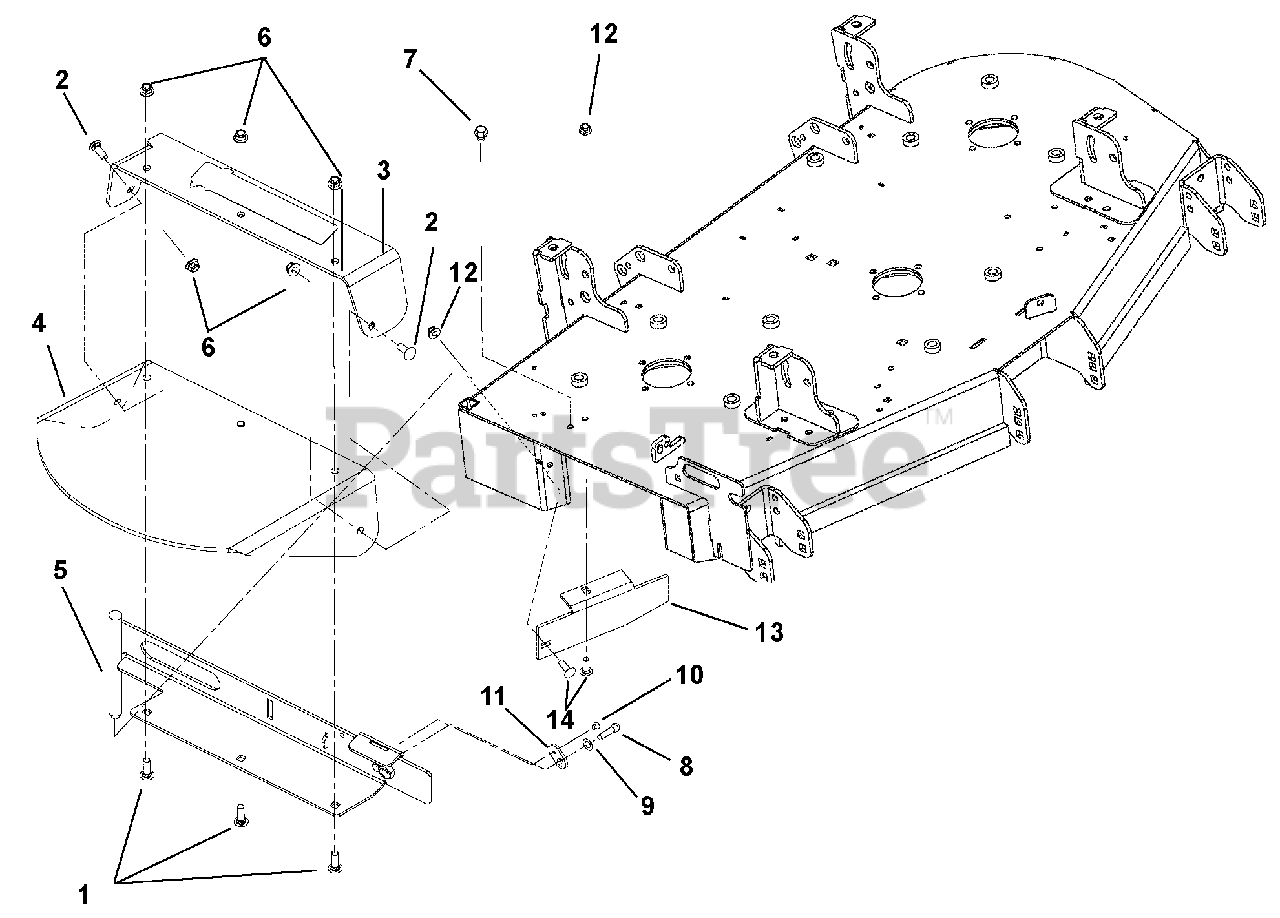

991303 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Side Discharge (SN: 001000 - 019999) Discharge Chute And Baffle - Side Discharge Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Side Discharge

Discharge Chute And Baffle - Side Discharge Parts Diagram

  • Title

1

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$127.99

$

In Stock, only 1 left!

0

4

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$93.99

$

In Stock, only 4 left!

0

5

Gravely 04365253

WMT-48" DISCHARGE CHUTE MTG-CE

$172.99

$

Usually ships in 4-12 days

0

6

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 07001634

BLT-HEX.38-16X1.25 GR5 CAP .37

$

$

Not available

9

Gravely 06308700

WSHR-LK-EXT.391X.628X.036YWZC

$2.49

$

In Stock, only 2 left!

0

10

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

11

Gravely 04183000

KEEPER, BOLT

$7.49

$

Usually ships in 4-12 days

0

12

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 00451653

44"-48" REAR DISCH BAFFLE -RED

$42.99

$

Usually ships in 4-12 days

0

14

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0
