991303 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Side Discharge (SN: 020000 - 029999) Discharge Chute And Baffle - Side Discharge Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Side Discharge

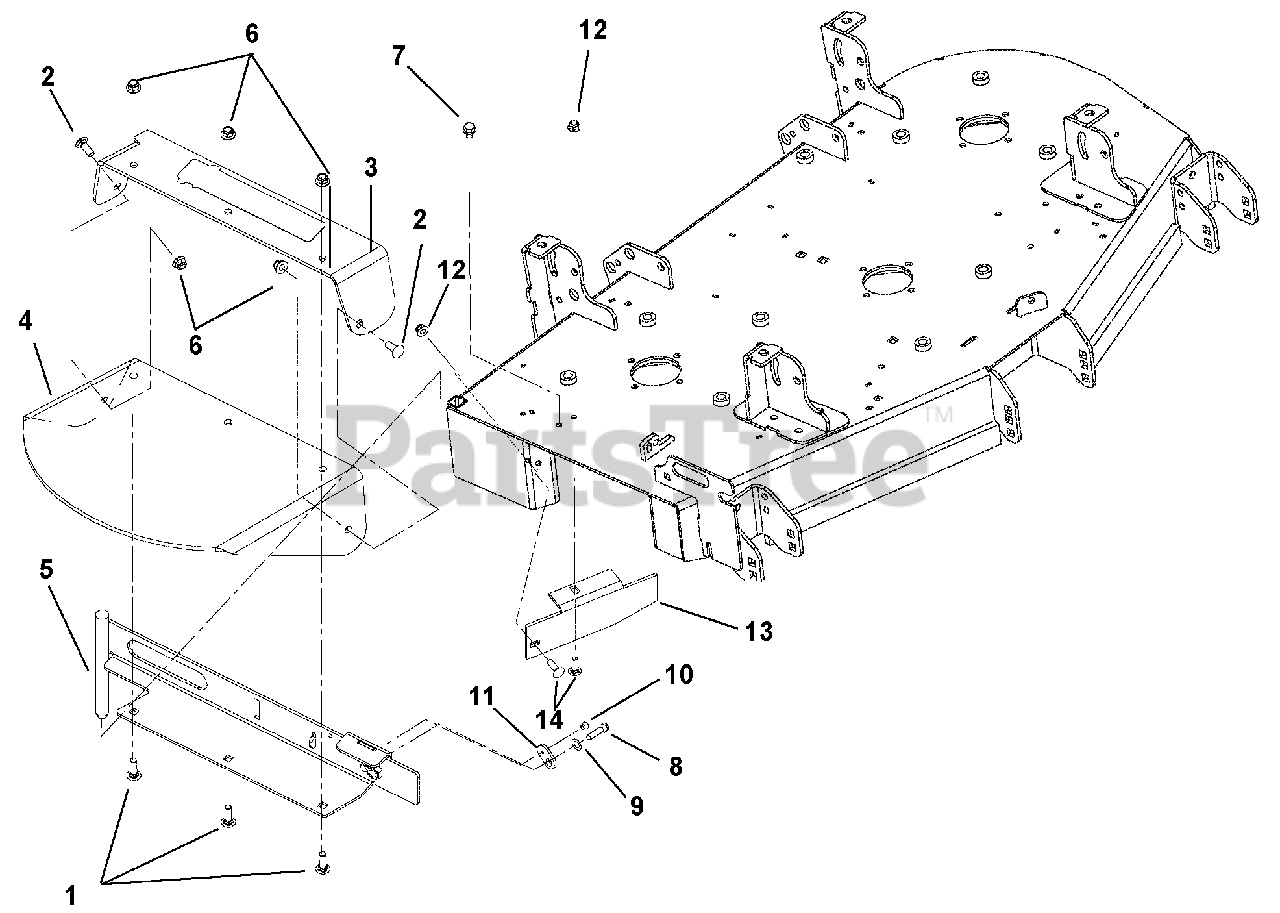

Discharge Chute And Baffle - Side Discharge Parts Diagram

  • Title

1

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

3

Gravely 04551553

Rubber Discharge Chute Support

$105.99

$

Usually ships in 4-12 days

0

4

Gravely 04551600

Chute, Rubber Discharge

$70.99

$

In Stock, Qty 10

0

5

Gravely 04365253

Weldment, 48" Discharge Chute Mounting, CE

$172.99

$

Usually ships in 4-12 days

0

6

Gravely 06545500

Nut, Locking, Nyloc, Flange .38-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07412900

Screw, Self Tapping .38-16 x .50
(Superseded to 07400126)

$1.99

$

In Stock, Qty 18

0

8

Gravely 07001634

Bolt, Hex .38-16 x 1.25

$

$

Not available

9

Gravely 06308700

Washer, Locking, EXT .391 x .682 x .036

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 06800028

Rivet, Pop .187
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

11

Gravely 04183000

Keeper, Bolt

$7.49

$

Usually ships in 4-12 days

0

12

Gravely 06545400

Nut, Locking Nyloc Flange .31 - 18
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 00451653

Discharge Baffle

$42.99

$

Usually ships in 4-12 days

0

14

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0
