991303 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Side Discharge (SN: 020000 - 029999) Mower Deck And Belt Covers - Side Discharge Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Side Discharge

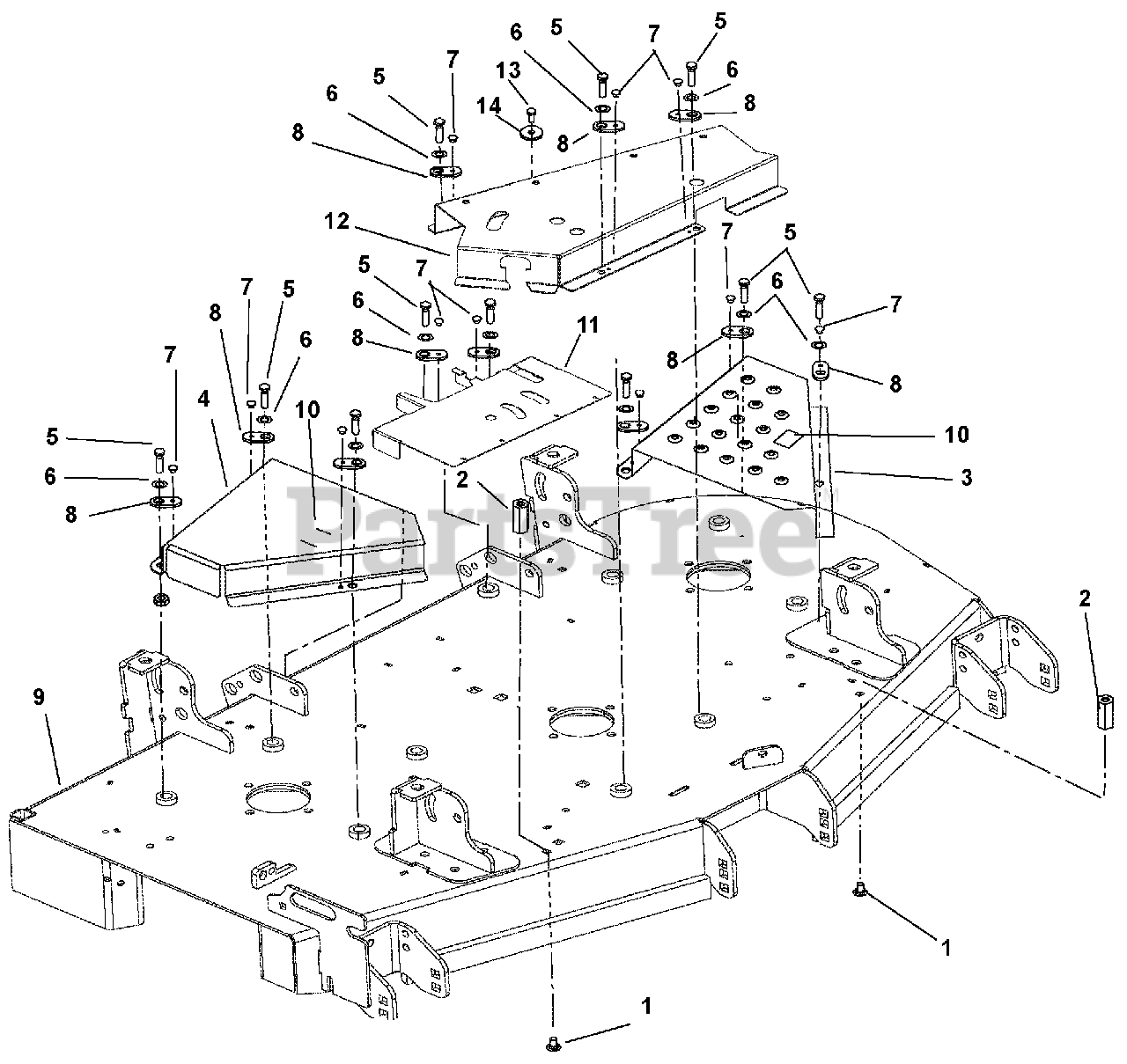

Mower Deck And Belt Covers - Side Discharge Parts Diagram

  • Title

1

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$4.99

$

In Stock, Qty 20+

0

2

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$29.99

$

In Stock, Qty 17

0

3

Gravely 04100051

GUARD, LH PT200 CE BELT

$

$

Not available

4

Gravely 04099951

GUARD, RH PT200 CE BELT

$

$

Not available

5

Gravely 07001625

BLT,HEX.38-16X1.25 GR5 CAPTIVE

$14.99

$

Usually ships in 4-12 days

0

6

Gravely 06308700

WSHR-LK-EXT.391X.628X.036YWZC

$2.49

$

In Stock, only 2 left!

0

7

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, Qty 5

0

8

Gravely 04183000

KEEPER, BOLT

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 04546153

WMT-48" PT100 SIDE DIS DECK-CE

$

$

Not available

10

Gravely 05359400

DECAL, PINCH POINT

$17.99

$

Usually ships in 4-12 days

0

11

Gravely 04498351

SHIELD - BELT - REAR

$

$

Not available

12

Gravely 04508051

WMT-FRONT BELT SHIELD

$

$

Not available

13

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

14

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0
