991303 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Side Discharge (SN: 030000 & Above) Steering Controls - SN 050000 And Up Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Side Discharge

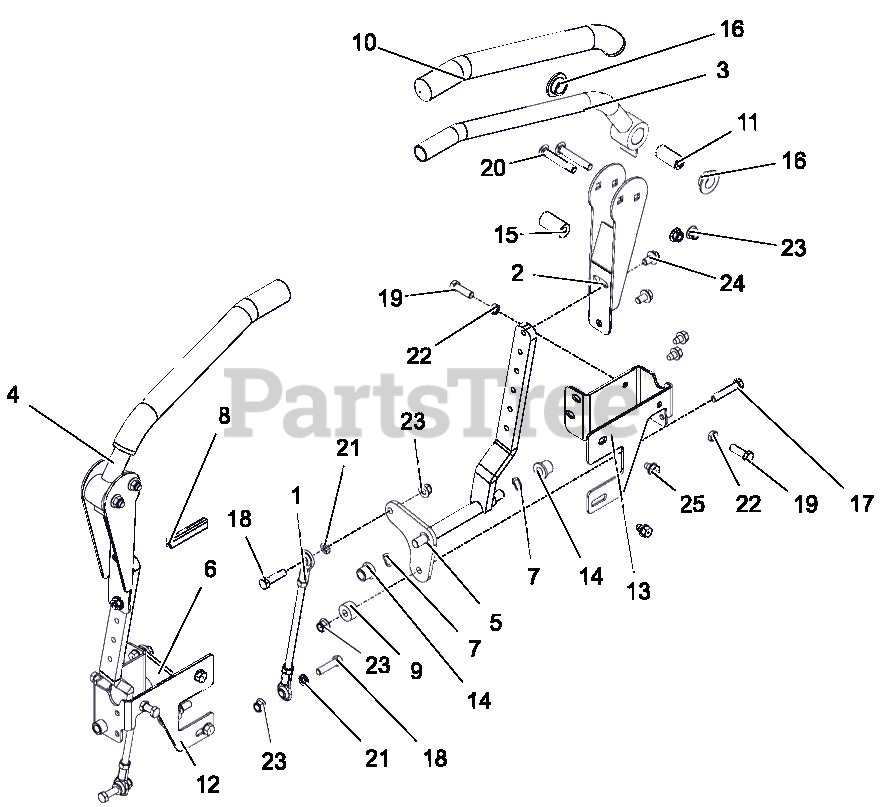

Steering Controls - SN 050000 And Up Parts Diagram

  • Title

1

Gravely 03251700

ASM, STEERING LINKAGE

$74.99

$

Usually ships in 4-12 days

0

2

Gravely 04776951

WLDMT, UPPER ADJUSTABLE CONTROL ARM - BLACK

$38.99

$

Usually ships in 4-12 days

0

3

Gravely 04777100

WLDMT, LH CONTROL HANDLE
(Superseded to 59226200)

$237.99

$

Usually ships in 4-12 days

0

4

Gravely 04777200

WLDMT, RH CONTROL HANDLE
(Superseded to 59226200)

$237.99

$

Usually ships in 4-12 days

0

5

Gravely 04890900

WLDMT, LH LOWER CONTROL ARM

$83.99

$

Usually ships in 4-12 days

0

6

Gravely 04891000

WLDMT, RH LOWER CONTROL ARM

$75.99

$

Usually ships in 4-12 days

0

7

Gravely 00325400

WAVE WASHER .531X.781X.125 FH

$1.49

$

In Stock, Qty 20+

0

8

Gravely 00918200

STRIP, COWL - 1.50 LG

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 03035100

SPACER .390 X 1.000 X .562

$9.99

$

In Stock, Qty 20+

0

10

Gravely 04383600

GRIP, HANDLEBAR

$36.99

$

In Stock, Qty 6

0

11

Gravely 04413600

SPCR, STEERING ARM

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 04967753

BRKT, RH HD STEERING STOP

$62.99

$

Usually ships in 4-12 days

0

13

Gravely 04967853

BRKT, LH HD STEERING STOP

$

$

Not available

14

Gravely 05501001

BSHG-FLG .500 X .750 X .750 X .125

$5.49

$

In Stock, Qty 20+

0

15

Gravely 05501223

BSHG, ECCENTRIC .328 X .750 X 1.625

$5.49

$

In Stock, only 2 left!

0

16

Gravely 05525200

BSHG, FLANGE .762 X 1.48 X .44 NYLON
(Superseded to 05501517)

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 05942200

BLT-HEX .38-16 X 2.00 FTH GR5 YWZC

$3.49

$

In Stock, only 1 left!

0

18

Gravely 05957900

BLT-HEX .38-16 X 1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

19

Gravely 05958000

BLT-HEX .38-16 X 1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 17

0

20

Gravely 06200213

BLT-RHDSQNK .38-16 X 2.50 G5YZ
(Superseded to 06200315)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 06308800

WSHR-LK .38 X .094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 19

0

22

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 07001707

BLT-SERHFWH .38-16 X .62 YWZC
(Superseded to 07001716)

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 07412900

SCR-TAP .38-16 X .50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 19

0
