991304 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 030000 & Above) Mounting Arms - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower

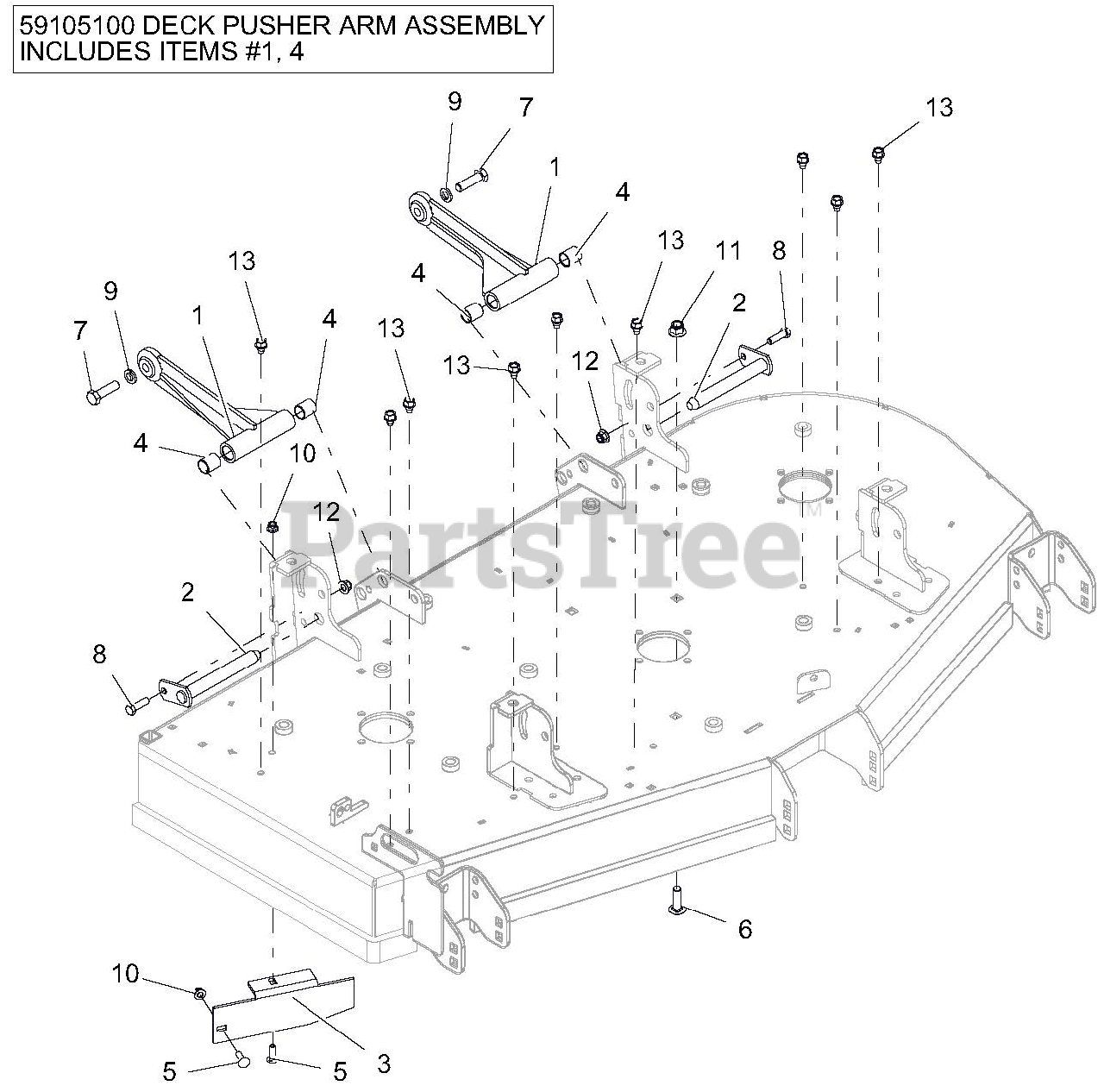

Mounting Arms - 52" Parts Diagram

  • Title

1

Gravely 04243551

WLDMT, DECK PUSHER ARM

$170.99

$

In Stock, only 1 left!

0

2

Gravely 09238900

WLDMT, MOWER MTG. PIN

$60.99

$

In Stock, only 2 left!

0

3

Gravely 00440853

BAFFLE, 52" DISCHARGE-RED

$37.99

$

Usually ships in 4-12 days

0

4

Gravely 05435900

BRG, .75 X .875 X 1.00

$5.99

$

In Stock, Qty 8

0

5

Gravely 06216100

BLT-RDHDSQSHNK .31-18X1.00 G5 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

6

Gravely 06200006

BLT-RDHDSQSHNK .50-13X1.50 YWZC

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 05901436

BLT-HEX .50-13X1.75 GR5 YWZC EP80
(Superseded to 05901922)

$3.99

$

In Stock, Qty 5

0

8

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 10

0

9

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

10

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 8

0

11

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

14

Gravely 59105100

DECK PUSHER ARM ASSEMBLY

Note: SERVICE PART - INCLUDES ITEMS #1, 4

$140.99

$

Usually ships in 4-12 days

0
