991306 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 030000 & Above) Deck Lift - Left Hand Parts Diagram

Pro-Turn 48" Zero-Turn Mower

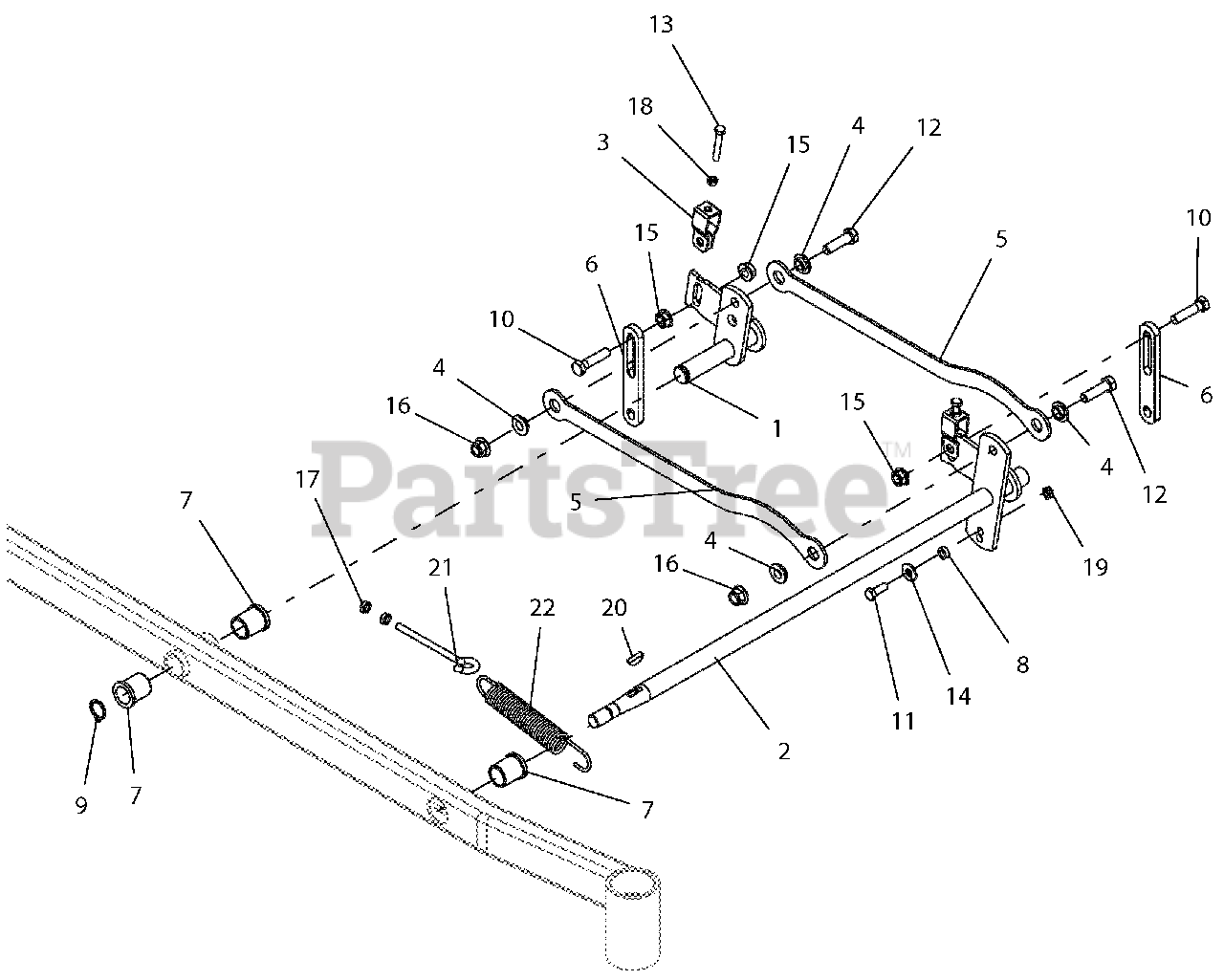

Deck Lift - Left Hand Parts Diagram

  • Title

1

Gravely 04518200

WLDMT, REAR LH DECK LIFT

$85.99

$

Usually ships in 4-12 days

0

2

Gravely 04691367

WLDMT, FRONT LH DECK LIFT ARM-BLACK

$145.99

$

Usually ships in 4-12 days

0

3

Gravely 00442800

BRKT, DECK LEVELING

$9.99

$

In Stock, only 2 left!

0

4

Gravely 03989100

BSHG, FLANGE .515X.750X.31X1.12

$3.99

$

In Stock, Qty 19

0

5

Gravely 04660351

LINK, LIFT - BLK

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 04732400

LINK, DECK LIFT - LONG

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 05500934

BSHG-FLG 1.00X1.25X1.5X1.5

$7.99

$

In Stock, Qty 20+

0

8

Gravely 05508900

BSHG, SLV .377X.624X.235

$9.99

$

In Stock, only 2 left!

0

9

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$3.49

$

In Stock, Qty 17

0

10

Gravely 05900022

BLT, HEX M12-1.75X50 CLS8.8 YZ

$3.99

$

In Stock, only 1 left!

0

11

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05970600

BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$4.99

$

In Stock, Qty 19

0

13

Gravely 05980900

BLT-HEX .31-18X2.00 FTH GR5 YWZC
(Superseded to 05902003)

$3.49

$

In Stock, only 2 left!

0

14

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06500003

NUT, SPLK -FLG M12-1.75 YZ

$2.99

$

In Stock, only 1 left!

0

16

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06536100

NUT, JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06608900

KEY, WDRF .25 X 1.00 HRD #15

$3.99

$

In Stock, Qty 15

0

21

Gravely 07001640

BOLT, EYE .38-16X6.00 .62 DIA

$17.99

$

In Stock, only 2 left!

0

22

Gravely 08319000

SPRG, TENSION .162 X 1.250 X 8.250

$34.99

$

In Stock, Qty 17

0
