991306 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 030000 & Above) Seat Parts Diagram

Pro-Turn 48" Zero-Turn Mower

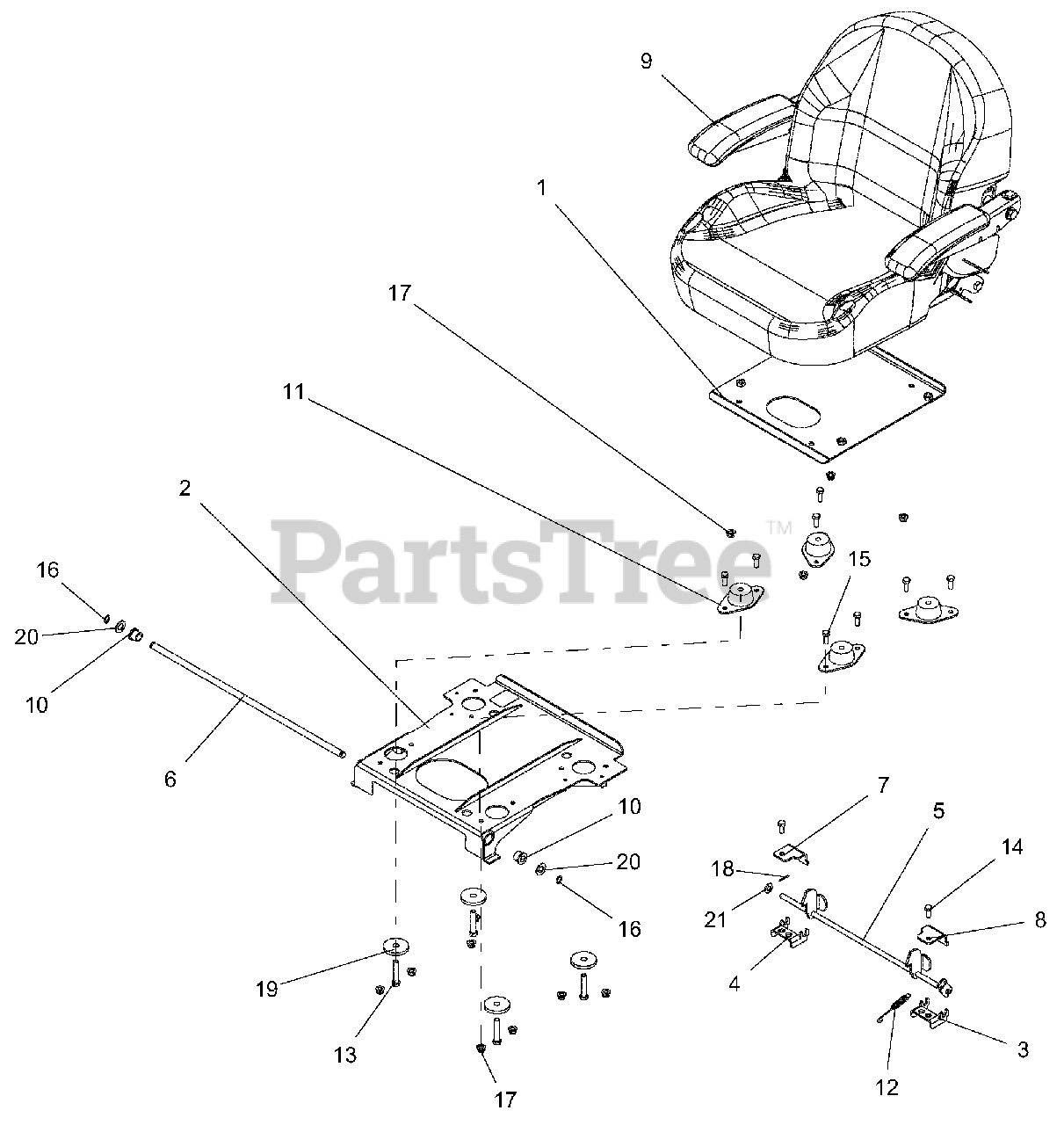

Seat Parts Diagram

  • Title

1

Gravely 04554851

WLDMT, SEAT MOUNTING PLATE-BLACK

$125.99

$

Usually ships in 4-12 days

0

2

Gravely 04554951

WLDMT, PT ISOLATOR MTG PLATE-BLACK

$111.99

$

Usually ships in 4-12 days

0

3

Gravely 03930551

WLDMT, PT/PT100 LH SEAT LATCH MOUNT-BLACK

$

$

Not available

4

Gravely 03930451

WLDMT, PT/PT100 RH SEAT LATCH MOUNT-BLACK

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 03917751

WLDMT, PRO-TURN SEAT LATCH-BLACK

$65.99

$

Usually ships in 4-12 days

0

6

Gravely 03837800

SHAFT, PT/PT100 SEAT PIVOT

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 03917951

MOUNT, PT/PT100 RH TOP SEAT LATCH-BLACK

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 03918551

MOUNT, PT/PT100 LH TOP SEAT LATCH-BLACK

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 04518600

SEAT, NON-SUSPENSION
(Superseded to 05073600)

$

$

Not available

10

Gravely 05500901

BSHG, SHLDR EP .358-16X.30 HEX YZ

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 07500237

MOUNT, FAIL-SAFE COMPRESSION

$37.99

$

Usually ships in 4-12 days

0

12

Gravely 08321100

SPRG, EXTENSION

$6.49

$

In Stock, Qty 20+

0

13

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 05947800

BLT-HEX .31-18X.875 GR5 YWZC
(Superseded to 05901801)

$2.99

$

In Stock, Qty 9

0

16

Gravely 05717100

RG-RTNG-EXT .500x.050

$2.99

$

In Stock, only 2 left!

0

17

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 8

0

19

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

20

Gravely 06425300

WSHR-FL-STL .531X1.000X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 10

0

21

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
