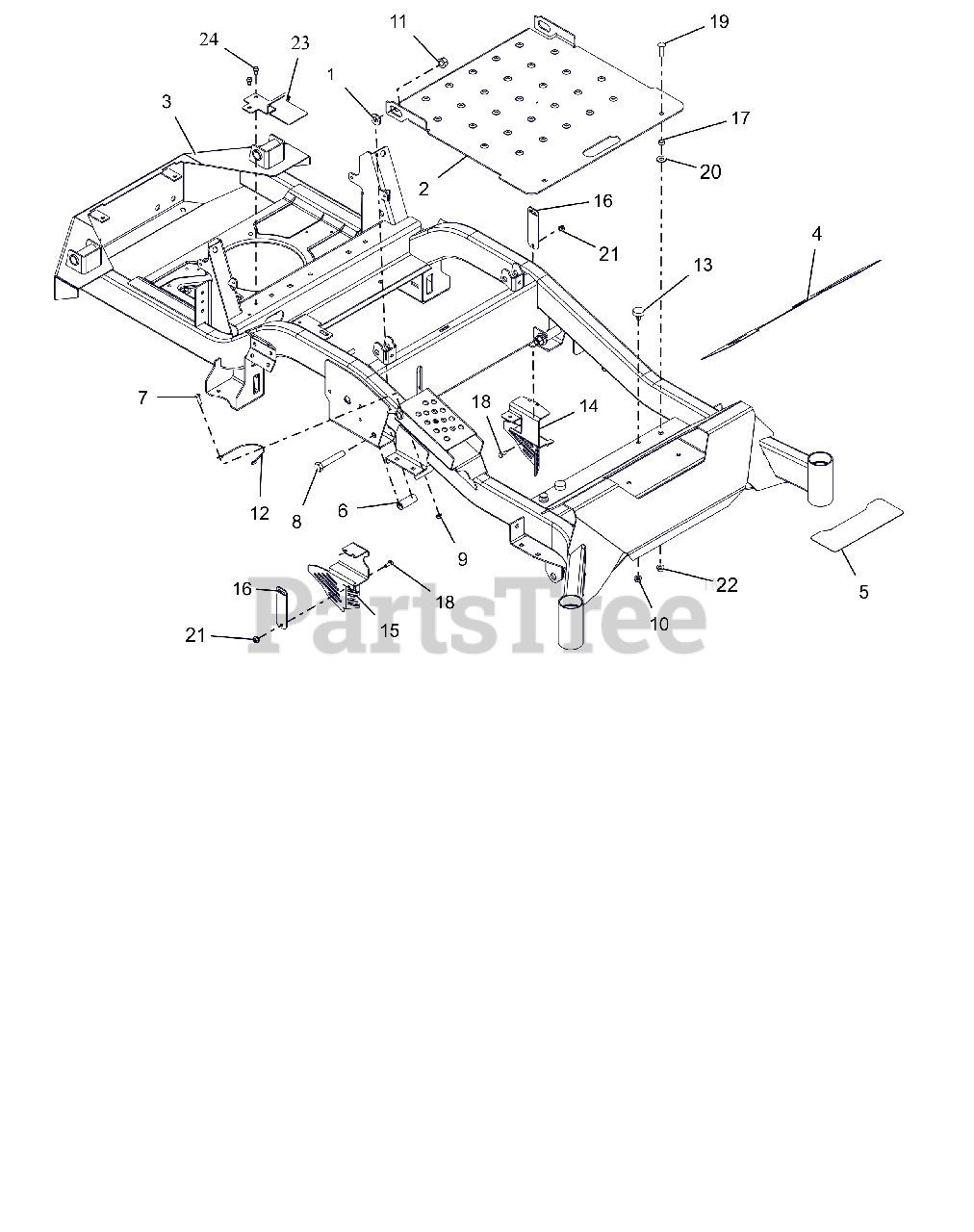

991311 - Ariens Apex 48" Zero-Turn Mower, Kawasaki FR (SN: 000101 - 014999) Frame Parts Diagram

Apex 48" Zero-Turn Mower, Kawasaki FR

Frame Parts Diagram

  • Title

1

Ariens 03989100

BSHG-FLG .515X.750X.395X1.120

$3.49

$

In Stock, Qty 20+

0

2

Ariens 05028559

PLATE, ACCESS

$90.99

$

Usually ships in 4-12 days

0

3

Ariens 59111200

APEX,44-52 FRAME W/SAFETY DECA
(Superseded to 59117700)

$969.99

$

Usually ships in 4-12 days

0

4

Ariens 05104800

GRIP, FRONT

$18.99

$

Usually ships in 4-12 days

0

5

Ariens 05109100

GRIP, STEP

$9.49

$

Usually ships in 4-12 days

0

6

Ariens 05501319

SPACER, .515X.75X1.83

$4.99

$

Usually ships in 4-12 days

0

7

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

8

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, Qty 8

0

9

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

10

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

11

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0

13

Ariens 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

14

Ariens 05141151

GUARD, TRANSAXLE FAN-LH

$

$

Not available

15

Ariens 05141251

GUARD, TRANSAXLE FAN - RH

$31.99

$

Usually ships in 4-12 days

0

16

Ariens 05141351

BRKT,TRANSAXLE FAN GUARD

$10.99

$

Usually ships in 4-12 days

0

17

Ariens 05501323

BSHG-SLV .344 X .500 X .260

$

$

Not available

18

Ariens 05900338

BLT-HEX .25-20X.63 GR5 YWZC
(Superseded to 05901722)

$1.99

$

Usually ships in 4-12 days

0

19

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.49

$

In Stock, only 1 left!

0

20

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

21

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

22

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

23

Ariens 05167751

GUARD, TRANSAXLE FAN RH (BLACK)

$

$

Currently unavailable

24

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
