991311 - Ariens Apex 48" Zero-Turn Mower, Kawasaki FR (SN: 000101 - 014999) Seat Parts Diagram

Apex 48" Zero-Turn Mower, Kawasaki FR

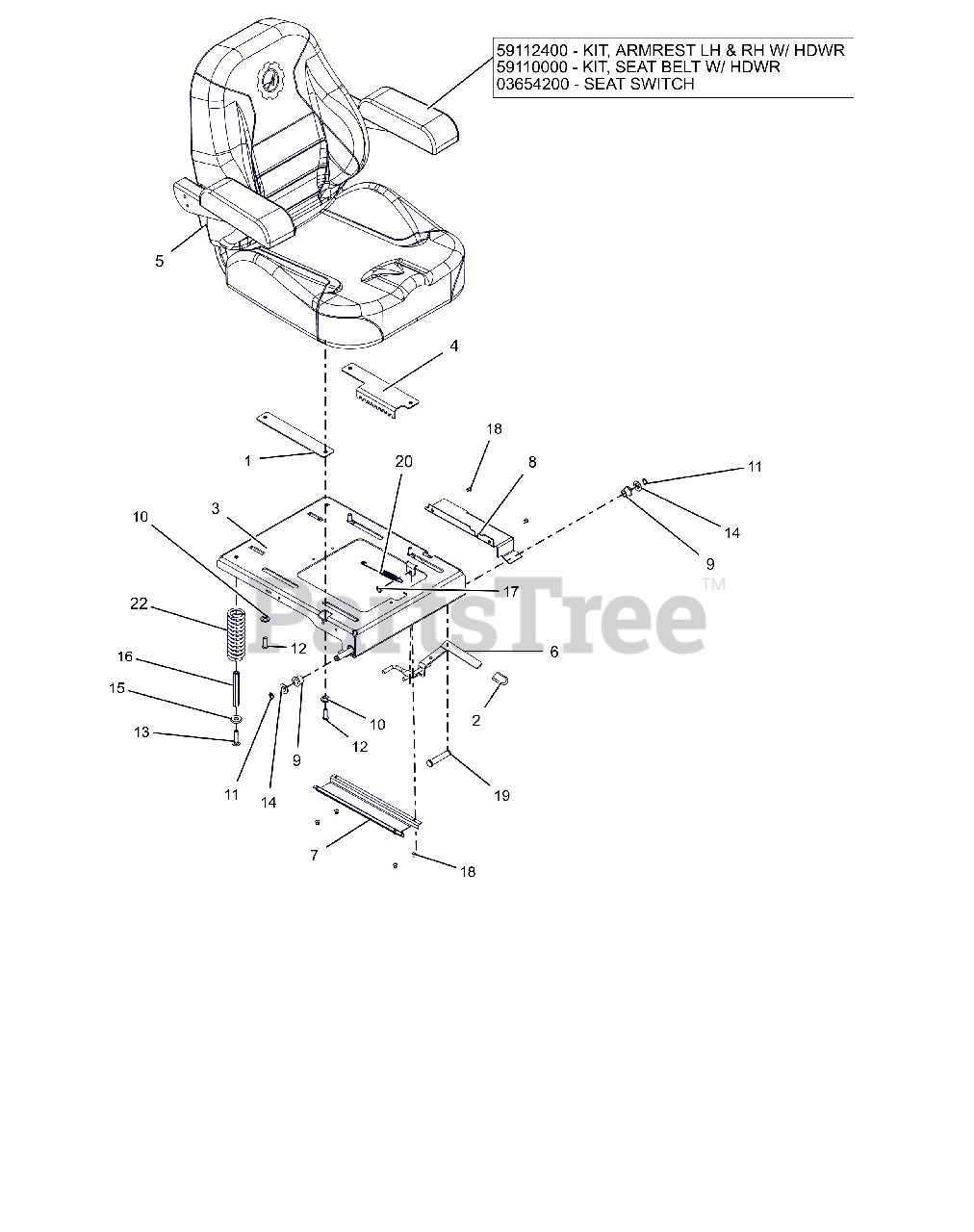

Seat Parts Diagram

  • Title

1

Ariens 04377051

PLATE, ADJUSTABLE SEAT SLIDE

$23.99

$

In Stock, only 1 left!

0

2

Ariens 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

3

Ariens 04995659

WLDMT, SEAT PLATE HD

$104.99

$

Usually ships in 4-12 days

0

4

Ariens 05015151

PLATE, HD SEAT ADJUSTMENT

$17.99

$

Usually ships in 4-12 days

0

5

Ariens 05124700

SEAT, APEX

$567.99

$

Usually ships in 4-12 days

0

5

Ariens 59112400

KIT-LH & RH ARM REST-05124700

Note: SERVICE PART

$242.99

$

In Stock, only 1 left!

0

5

Ariens 59110000

KIT-SEAT BELT REPLACE-05007300

Note: SERVICE PART

$143.99

$

Usually ships in 4-12 days

0

5

Ariens 03654200

SWITCH- SEAT

Note: SERVICE PART

$15.99

$

In Stock, only 2 left!

0

6

Ariens 05015251

WLDMT, SEAT SLIDE LEVER

$25.99

$

Usually ships in 4-12 days

0

7

Ariens 05140951

GUARD,SEAT SWITCH

$19.99

$

Usually ships in 4-12 days

0

8

Ariens 05151459

GUARD, SEAT PLATE CE

$40.99

$

Usually ships in 4-12 days

0

9

Ariens 05500901

BSHG, FLG .516X.750X.625X.937

$6.49

$

In Stock, Qty 7

0

10

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, Qty 9

0

11

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, only 2 left!

0

12

Ariens 05901508

SCR-SKH .31-18X1.0 BTNHD YWZC
(Superseded to 05901840)

$2.99

$

Usually ships in 4-12 days

0

13

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, only 1 left!

0

14

Ariens 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, only 2 left!

0

15

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

16

Ariens 06500828

NUT, COUPLING 5/16X18 X 3.75

$13.99

$

In Stock, only 1 left!

0

17

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 14

0

18

Ariens 06800120

RIVET, .1875 AL/AL .126-.250

$1.99

$

Usually ships in 4-12 days

0

19

Ariens 06800135

PIN, SEAT PIVOT -.500X2.31
(Superseded to 06800202)

$8.49

$

In Stock, only 2 left!

0

20

Ariens 08300022

SG-TENS .06X.482X5.35

$6.49

$

In Stock, only 2 left!

0

22

Ariens 08300704

SPRING, COMPRESSION SEAT 224LB

$17.99

$

In Stock, only 2 left!

0
